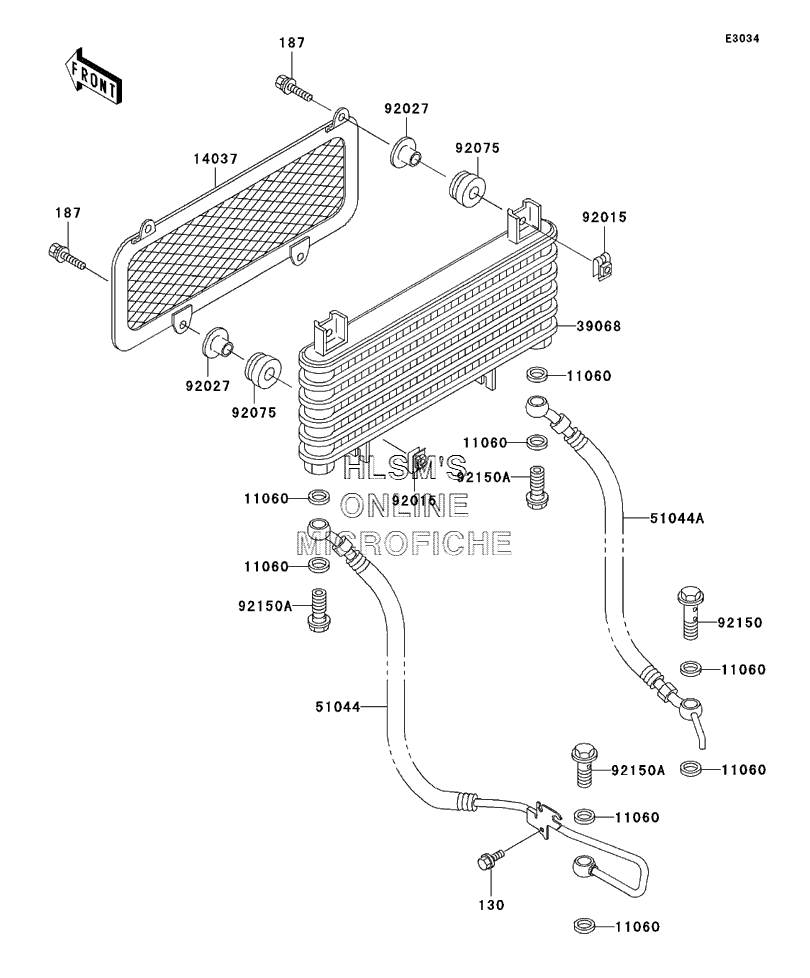

OIL COOLER для Kawasaki Prairie 300 (KVF300-B3) - 2001 года выпуска`
-
№АртикулНазвание
-
130130H0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
187187D0625 BOLT-UPSET-WSP, 6X25BOLT-UPSET-WSP, 6X25
-
1106011060-1287 GASKET, 14X20X2GASKET, 14X20X2
-
1403714037-1105 SCREENSCREEN
-
3906839068-1061 COOLER-ASSY-OILCOOLER-ASSY-OIL
-
5104451044-1201 TUBE-ASSYTUBE-ASSY
-
51044A51044-1207 TUBE-ASSYTUBE-ASSY
-
9201592015-1487 NUTNUT
-
9202792027-1767 COLLARCOLLAR
-
9207592075-277 DAMPERDAMPER
-
9215092150-1324 BOLT, BANJO, 14X46BOLT, BANJO, 14X46
-
92150A92150-1945 BOLTBOLT
Все узлы модели:
- AIR CLEANER
- BATTERY CASE
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE PEDAL
- CABLES
- CAMSHAFT(S)/TENSIONER
- CARBURETOR
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- CONTROL
- CONVERTER COVER
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER/PISTON(S)
- DECALS (GREEN)
- DECALS (RED)
- DRIVE CONVERTER
- DRIVE SHAFT
- ENGINE COVER(S)
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT BEVEL GEAR
- FRONT HUB
- FUEL TANK
- GEAR CHANGE DRUM/SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- GUARD(S)
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH
- IGNITION SYSTEM
- LABELS
- METER(S) (CANADA ONLY)
- MUFFLER(S)
- • OIL COOLER
- OIL PUMP/OIL FILTER
- OPTIONAL PARTS
- OPTIONAL PARTS (US ONLY)
- OWNER'S TOOLS
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- STARTER - RECOIL
- STARTER MOTOR
- SUSPENSION
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TRANSMISSION
- VALVE(S)
- WHEELS/TIRES
