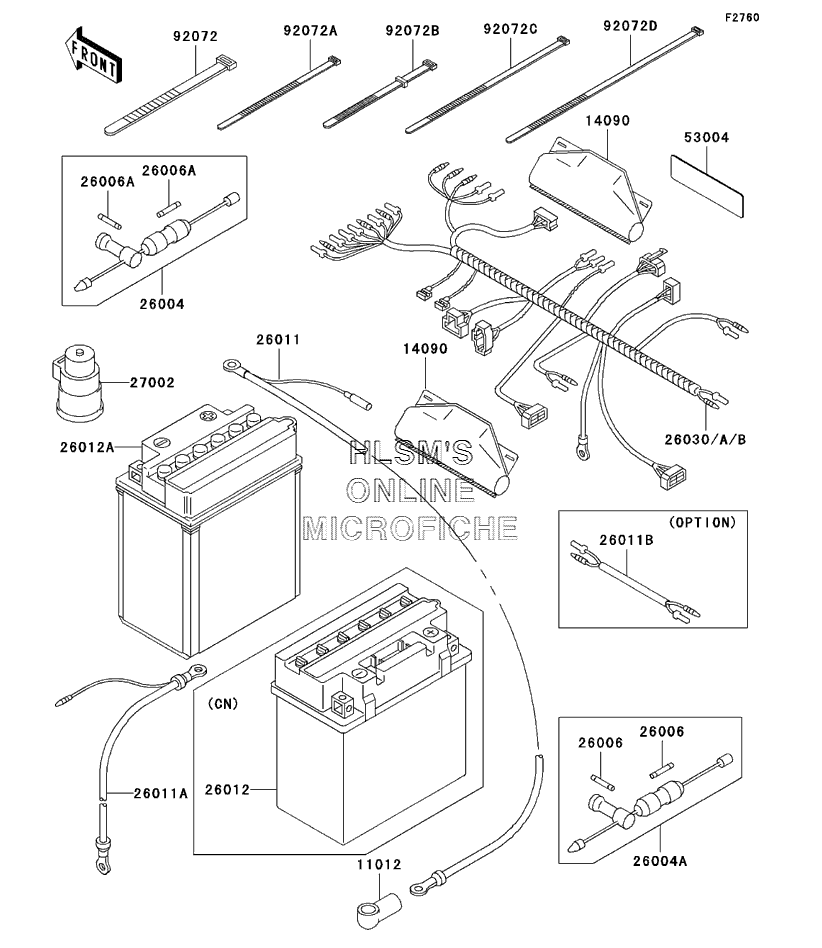

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Prairie 300 (KVF300-B3) - 2001 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1354 CAP, TERMINAL
    CAP, TERMINAL
  • 14090
    14090-1331 COVER, COUPLER
    COVER, COUPLER
  • 26004
    26004-1114 FUSE-ASSY
    FUSE-ASSY
  • 26004A
    26004-3715 FUSE-ASSY
    FUSE-ASSY
  • 26006
    26006-1059 FUSE, 30A, L=30
    FUSE, 30A, L=30
  • 26006A
    26006-1074 FUSE, 5A, L=30
    FUSE, 5A, L=30
  • 26011
    26011-1513 WIRE-LEAD, BATTERY(+)
    WIRE-LEAD, BATTERY(+)
  • 26011A
    26011-1637 WIRE-LEAD, BATTERY(-)
    WIRE-LEAD, BATTERY(-)
  • 26011B
    26011-1763 WIRE-LEAD, ACCESSORY CONNECT (OPTION)
    WIRE-LEAD, ACCESSORY CONNECT (OPTION)
  • 26012
    26012-1384 BATTERY, YB16CL-B, 12V 19AH (CANADA ONLY)
    BATTERY, YB16CL-B, 12V 19AH (CANADA ONLY)
  • 26012A
    26012-1388 BATTERY, YB14A-A2, 12V 14AH (US ONLY)
    BATTERY, YB14A-A2, 12V 14AH (US ONLY)
  • 26030B
    26030-1786 HARNESS, MAIN
    HARNESS, MAIN
  • 27002
    27002-1095 RELAY-ASSY
    RELAY-ASSY
  • 53004
    53004-1070 MAT
    MAT
  • 92072
    92072-030 BAND, L=123
    BAND, L=123
  • 92072A
    92072-031 BAND, L=149
    BAND, L=149
  • 92072B
    92072-056 BAND, L=186
    BAND, L=186
  • 92072C
    92072-1239 BAND, L=188 (CANADA ONLY)
    BAND, L=188 (CANADA ONLY)
  • 92072C
    92072-1239 BAND, L=188 (US ONLY)
    BAND, L=188 (US ONLY)
  • 92072D
    92072-3509 BAND, L=292.1
    BAND, L=292.1
