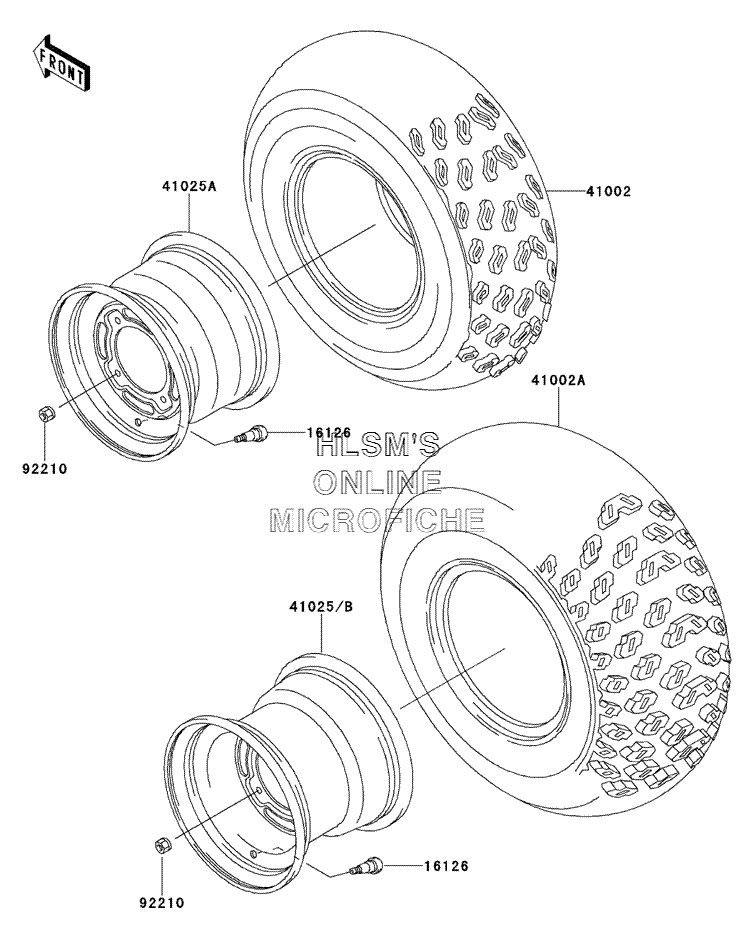

WHEELS/TIRES для Kawasaki Bayou 300 (KLF300-B14) - 2001 года выпуска
-
№АртикулНазвание
-
1612616126-4001 VALVEVALVE
-
4100241002-1525 TIRE, FRONT AT22X9-10, KT761(D)TIRE, FRONT AT22X9-10, KT761(D)
-
41002A41002-1526 TIRE, REAR AT24X11-10, KT765(D)TIRE, REAR AT24X11-10, KT765(D)
-
41025A41025-1212-5A RIM, FRONT 10X7.0, SILVER NO.40RIM, FRONT 10X7.0, SILVER NO.40
-
41025B41025-1339-5A RIM, REAR 10X8.5, SILVER NO.40RIM, REAR 10X8.5, SILVER NO.40
-
9221092210-1204 NUT, LOCK, 10MMNUT, LOCK, 10MM
