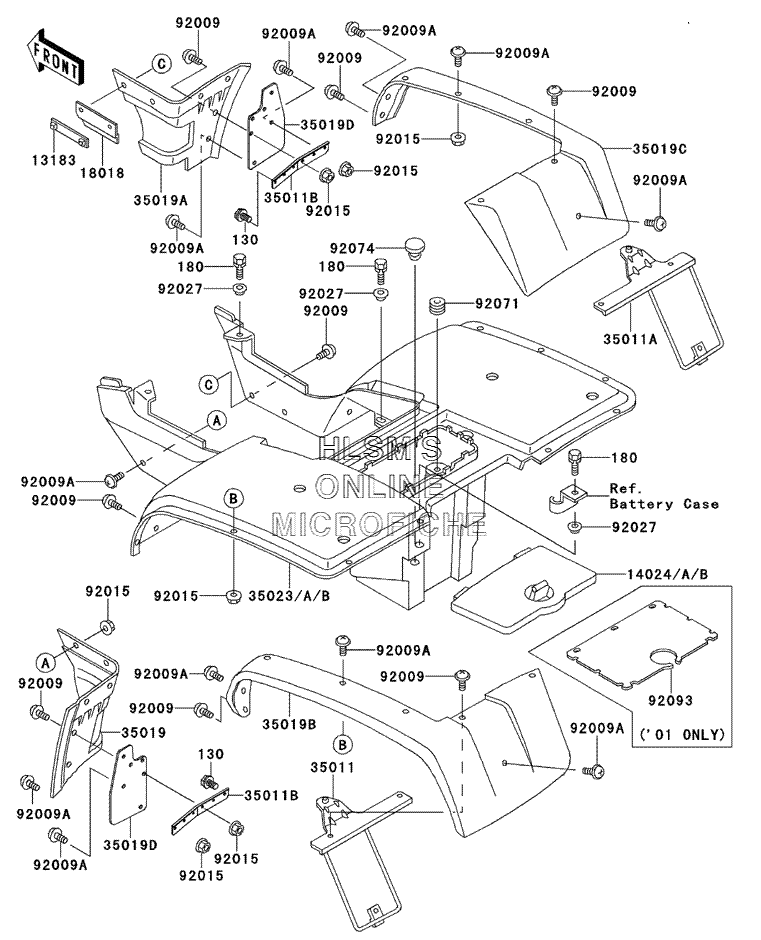

FENDER - REAR для Kawasaki Bayou 300 (KLF300-B14) - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130C0610 BOLT-FLANGED, 6X10 (BLACK)
    BOLT-FLANGED, 6X10 (BLACK)
  • 180
    180D0618 BOLT-UPSET-WS
    BOLT-UPSET-WS
  • 13183
    13183-1035 PLATE, HEAT GUARD
    PLATE, HEAT GUARD
  • 14024A
    14024-1095-6A COVER, REAR FENDER (H.GREEN)
    COVER, REAR FENDER (H.GREEN)
  • 14024B
    14024-1095-6L COVER, REAR FENDER (F.RED)
    COVER, REAR FENDER (F.RED)
  • 18018
    18018-1071 PLATE-HEAT GUARD
    PLATE-HEAT GUARD
  • 35011
    35011-1418 STAY, REAR FLAP (LEFT)
    STAY, REAR FLAP (LEFT)
  • 35011A
    35011-1419 STAY, REAR FLAP (RIGHT)
    STAY, REAR FLAP (RIGHT)
  • 35011B
    35011-1435 STAY, FLAP, OUTER
    STAY, FLAP, OUTER
  • 35019
    35019-1225 FLAP, FRONT (LEFT)
    FLAP, FRONT (LEFT)
  • 35019A
    35019-1226 FLAP, FRONT (RIGHT)
    FLAP, FRONT (RIGHT)
  • 35019B
    35019-1227 FLAP, REAR (LEFT)
    FLAP, REAR (LEFT)
  • 35019C
    35019-1228 FLAP, REAR (RIGHT)
    FLAP, REAR (RIGHT)
  • 35019D
    35019-1255 FLAP, FRONT OUTER
    FLAP, FRONT OUTER
  • 35023A
    35023-1139-6A FENDER-REAR (H.GREEN)
    FENDER-REAR (H.GREEN)
  • 35023B
    35023-1139-6L FENDER-REAR (F.RED)
    FENDER-REAR (F.RED)
  • 92009
    92009-1181 SCREW, 6X18 (BLACK)
    SCREW, 6X18 (BLACK)
  • 92009A
    92009-1288 SCREW, 6X14
    SCREW, 6X14
  • 92015
    92015-1675 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92027
    92027-1933 COLLAR, L=5.6
    COLLAR, L=5.6
  • 92071
    92071-1131 GROMMET
    GROMMET
  • 92074
    92074-038 PLUG, 11X3.2
    PLUG, 11X3.2
  • 92093
    92093-1537 SEAL, REAR FENDER COVER
    SEAL, REAR FENDER COVER
