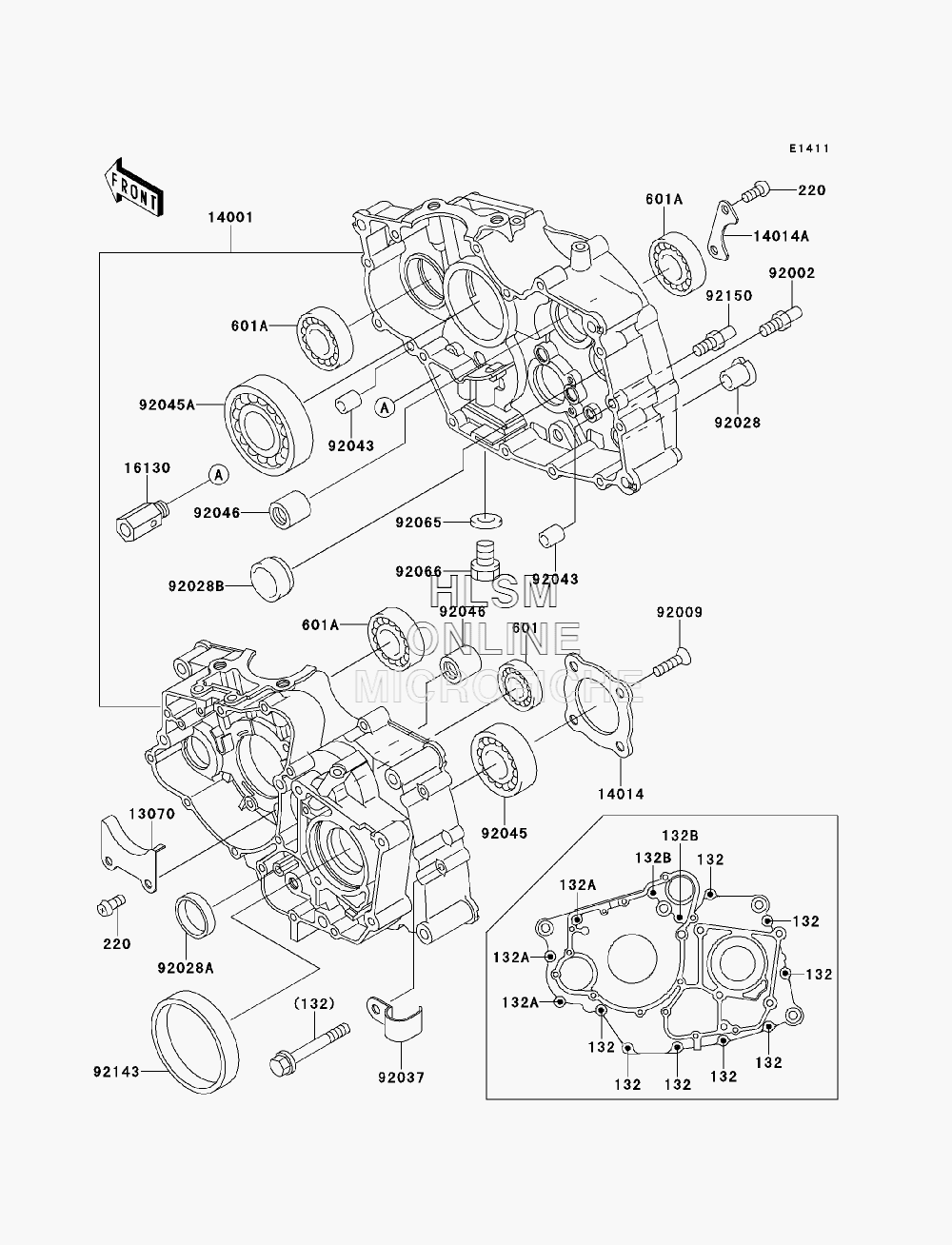

CRANKCASE для Kawasaki BAYOU 220 (KLF220-A14) - 2001 года выпуска

  • №
    Артикул
    Название
  • 132
    132Y0640 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 132A
    132Y0660 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 132B
    132Y0675 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 220
    220B0614 SCREW-PAN-CROS, 6X14
    SCREW-PAN-CROS, 6X14
  • 601
    601A6202Z BEARING-BALL
    BEARING-BALL
  • 601A
    601A6204 BEARING-BALL, #6204
    BEARING-BALL, #6204
  • 13070
    13070-1176 GUIDE, CAM CHAIN
    GUIDE, CAM CHAIN
  • 14001
    14001-5323 SET-CRANKCASE, W/PLUG
    SET-CRANKCASE, W/PLUG
  • 14014
    14014-1086 PLATE-POSITION
    PLATE-POSITION
  • 14014A
    14014-1088 PLATE-POSITION
    PLATE-POSITION
  • 16130
    16130-1001 VALVE-ASSY-RELIEF
    VALVE-ASSY-RELIEF
  • 92002
    92002-1408 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92009
    92009-1349 SCREW, 6X14
    SCREW, 6X14
  • 92028
    92028-1386 BUSHING
    BUSHING
  • 92028A
    92028-1505 BUSHING, 14X16X15
    BUSHING, 14X16X15
  • 92028B
    92028-1506 BUSHING
    BUSHING
  • 92037
    92037-1939 CLAMP
    CLAMP
  • 92043
    92043-1263 PIN, 6.2X8X14
    PIN, 6.2X8X14
  • 92045
    92045-1142 BEARING-BALL, TMB304CCM
    BEARING-BALL, TMB304CCM
  • 92045A
    92045-1172 BEARING-BALL
    BEARING-BALL
  • 92046
    92046-060 BEARING-NEEDLE, HMK1515B
    BEARING-NEEDLE, HMK1515B
  • 92065
    92065-097 GASKET, 12X22X2, DRAIN PLUG
    GASKET, 12X22X2, DRAIN PLUG
  • 92066
    92066-1174 PLUG, OIL DRAIN, 12X15
    PLUG, OIL DRAIN, 12X15
  • 92143
    92143-1120 COLLAR, 66X70X11
    COLLAR, 66X70X11
  • 92150
    92150-1467 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
