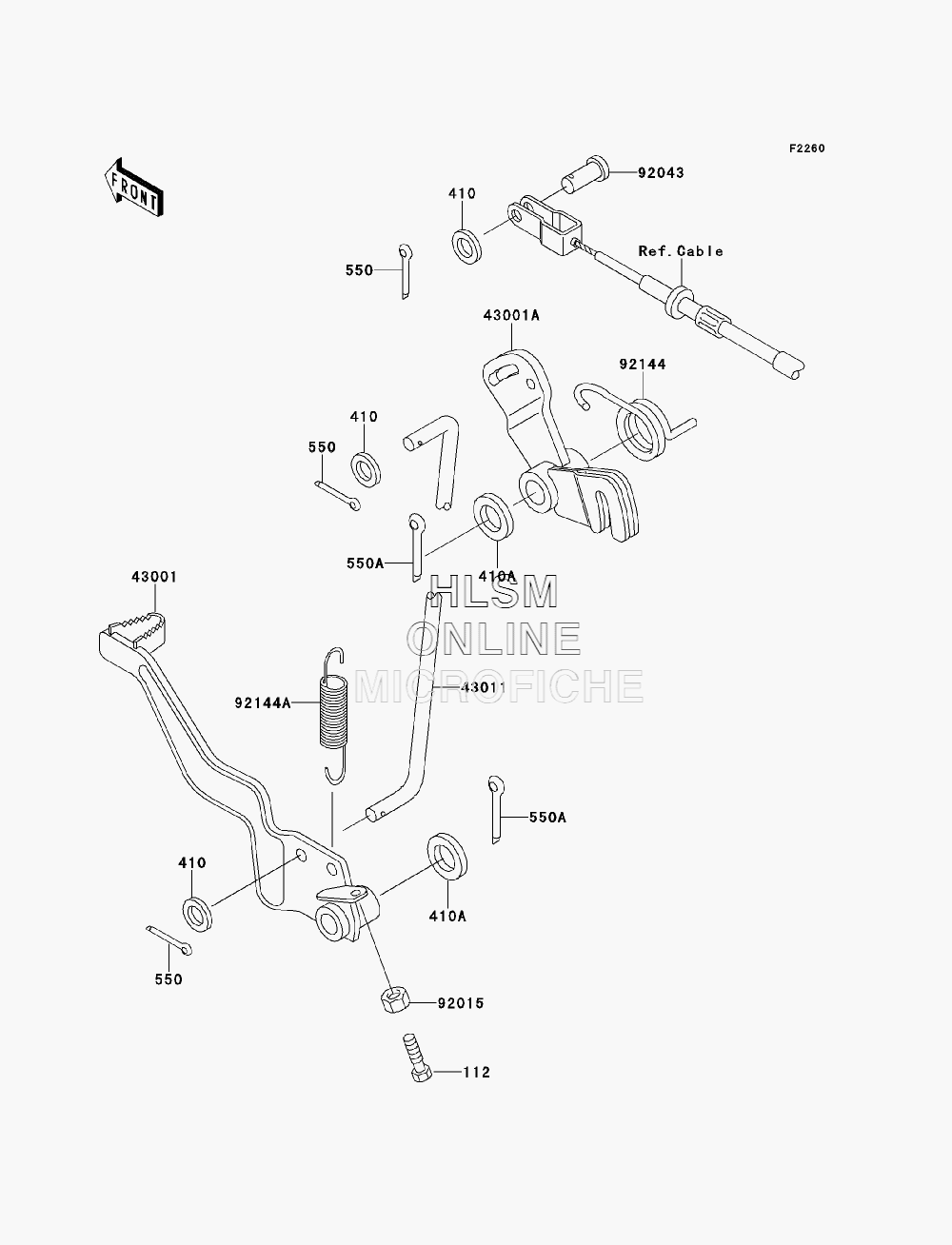

BRAKE PEDAL для Kawasaki BAYOU 220 (KLF220-A14) - 2001 года выпуска
-
№АртикулНазвание
-
112112D0622 BOLT-UPSETBOLT-UPSET
-
410410B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
410A410B1400 WASHER-PLAIN-SMALL, 14MMWASHER-PLAIN-SMALL, 14MM
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D2525 PIN-COTTER, 2.5X25PIN-COTTER, 2.5X25
-
4300143001-1230 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
43001A43001-1288 LEVER-BRAKELEVER-BRAKE
-
4301143011-1138 ROD-BRAKEROD-BRAKE
-
9201592015-1410 NUT, 6MMNUT, 6MM
-
9204392043-125 PIN, 6X14.5PIN, 6X14.5
-
9214492144-1165 SPRING, BRAKE LEVER RETURNSPRING, BRAKE LEVER RETURN
-
92144A92144-1266 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
