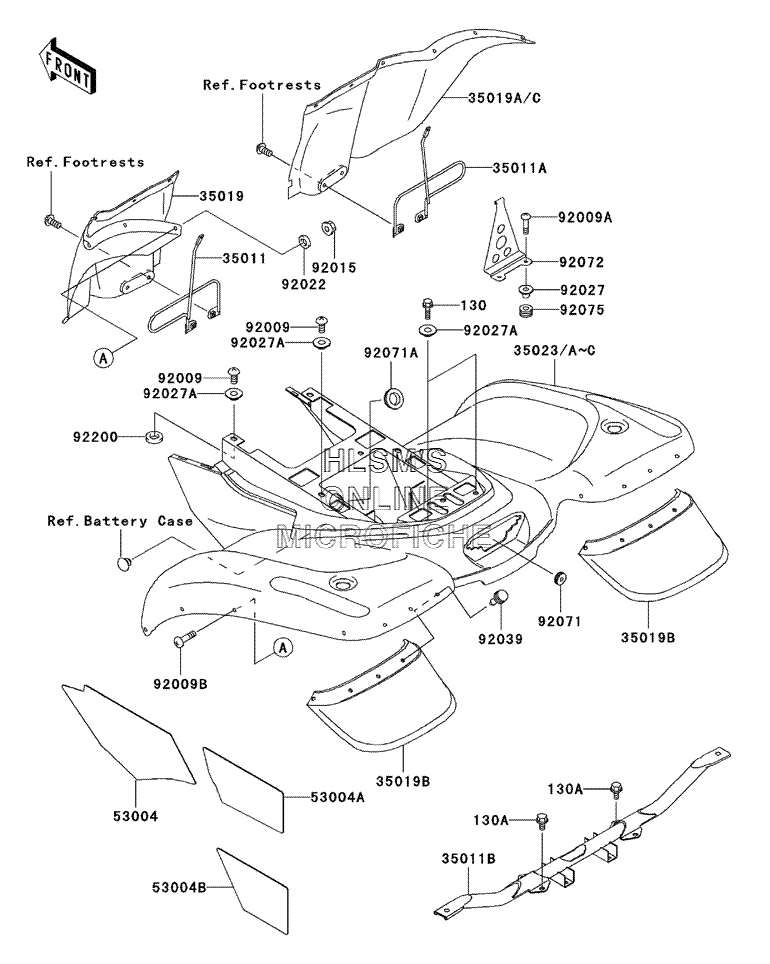

FENDER - REAR для Kawasaki Prairie 400 (KVF400-D2) - 2000 года выпуска

  • №
    Артикул
    Название
  • 130
    130C0618 BOLT-FLANGED, 6X18
    BOLT-FLANGED, 6X18
  • 130A
    130J0816 BOLT-FLANGED, 8X16
    BOLT-FLANGED, 8X16
  • 35011
    35011-1759 STAY, REAR FLAP (LEFT)
    STAY, REAR FLAP (LEFT)
  • 35011A
    35011-1760 STAY, REAR FLAP (RIGHT)
    STAY, REAR FLAP (RIGHT)
  • 35011B
    35011-1782 STAY, REAR FENDER
    STAY, REAR FENDER
  • 35019
    35019-1334-6Z FLAP, REAR FRONT (LEFT) (F.BLACK)
    FLAP, REAR FRONT (LEFT) (F.BLACK)
  • 35019B
    35019-1336-6Z FLAP, REAR REAR (F.BLACK)
    FLAP, REAR REAR (F.BLACK)
  • 35019C
    35019-1375-6Z FLAP, REAR FRONT (RIGHT) (F.BLACK)
    FLAP, REAR FRONT (RIGHT) (F.BLACK)
  • 35023
    35023-1494-6A FENDER-REAR (L.GREEN)
    FENDER-REAR (L.GREEN)
  • 35023A
    35023-1494-6L FENDER-REAR (F.RED)
    FENDER-REAR (F.RED)
  • 53004
    53004-1149 MAT, REAR FENDER
    MAT, REAR FENDER
  • 53004A
    53004-1150 MAT, REAR FENDER
    MAT, REAR FENDER
  • 53004B
    53004-1151 MAT, REAR FENDER
    MAT, REAR FENDER
  • 92009
    92009-1166 SCREW, TAPPING, 6X16
    SCREW, TAPPING, 6X16
  • 92009A
    92009-1465 SCREW, 6X25
    SCREW, 6X25
  • 92009B
    92009-1621 SCREW, 6X16
    SCREW, 6X16
  • 92015
    92015-1675 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92022
    92022-1093 WASHER, 6.5X16X1.0
    WASHER, 6.5X16X1.0
  • 92027
    92027-1651 COLLAR, FLANGED, L=12.1 (BLACK)
    COLLAR, FLANGED, L=12.1 (BLACK)
  • 92027A
    92027-1964 COLLAR, L=4.7
    COLLAR, L=4.7
  • 92039
    92039-1229 RIVET
    RIVET
  • 92071
    92071-1058 GROMMET, SENSOR LEAD
    GROMMET, SENSOR LEAD
  • 92071A
    92071-1237 GROMMET
    GROMMET
  • 92072
    92072-1361 BAND
    BAND
  • 92075
    92075-222 DAMPER, CASE
    DAMPER, CASE
  • 92200
    92200-1055 WASHER, 8.5X20X2.3
    WASHER, 8.5X20X2.3
