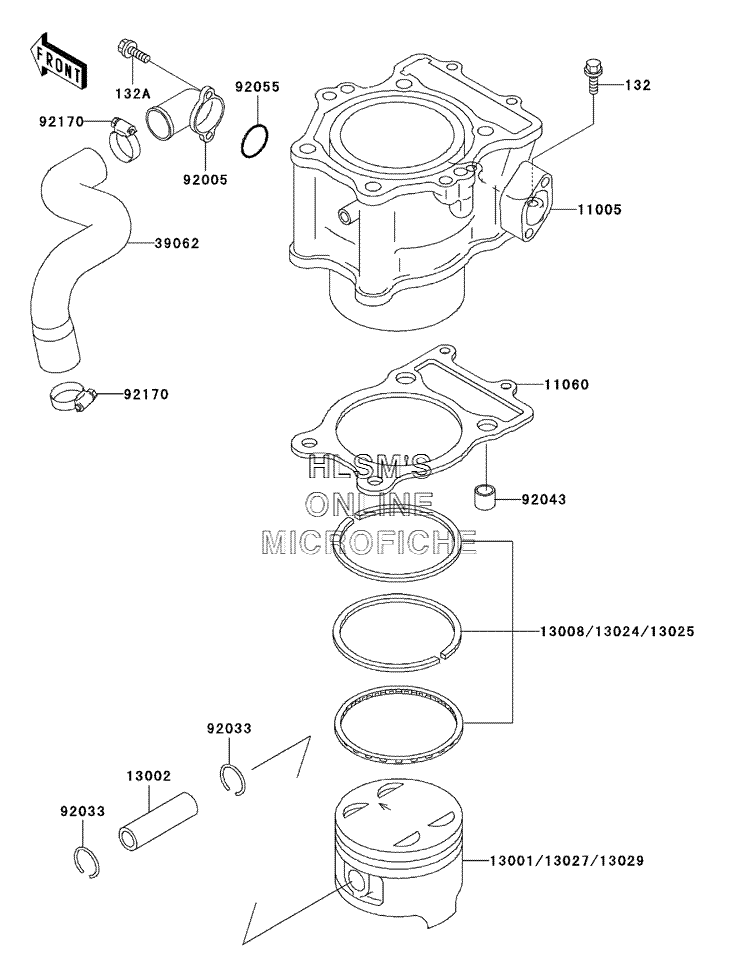

CYLINDER/PISTON(S) для Kawasaki Prairie 400 (KVF400-D2) - 2000 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0625 BOLT-FLANGED-SMALL, 6X25
    BOLT-FLANGED-SMALL, 6X25
  • 132A
    132J0616 BOLT-FLANGED-SMALL, 6X16
    BOLT-FLANGED-SMALL, 6X16
  • 11005
    11005-1673 CYLINDER-ENGINE
    CYLINDER-ENGINE
  • 11060
    11060-1205 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 13001
    13001-1521 PISTON-ENGINE (STD)
    PISTON-ENGINE (STD)
  • 13002
    13002-1056 PIN-PISTON
    PIN-PISTON
  • 13008
    13008-1142 RING-SET-PISTON (STD)
    RING-SET-PISTON (STD)
  • 13024
    13024-1090 RING-SET-PISTON (O/S 1.00)
    RING-SET-PISTON (O/S 1.00)
  • 13025
    13025-1114 RING-SET-PISTON (O/S 0.50)
    RING-SET-PISTON (O/S 0.50)
  • 13027
    13027-1201 PISTON-ENGINE (O/S 1.00)
    PISTON-ENGINE (O/S 1.00)
  • 13029
    13029-1258 PISTON-ENGINE (O/S 0.50)
    PISTON-ENGINE (O/S 0.50)
  • 39062
    39062-1674 HOSE-COOLING
    HOSE-COOLING
  • 92005
    92005-1145 FITTING, CYLINDER
    FITTING, CYLINDER
  • 92033
    92033-1188 RING-SNAP
    RING-SNAP
  • 92043
    92043-1266 PIN, 11X14X12.3
    PIN, 11X14X12.3
  • 92055
    92055-091 RING-O
    RING-O
  • 92170
    92170-1497 CLAMP
    CLAMP
