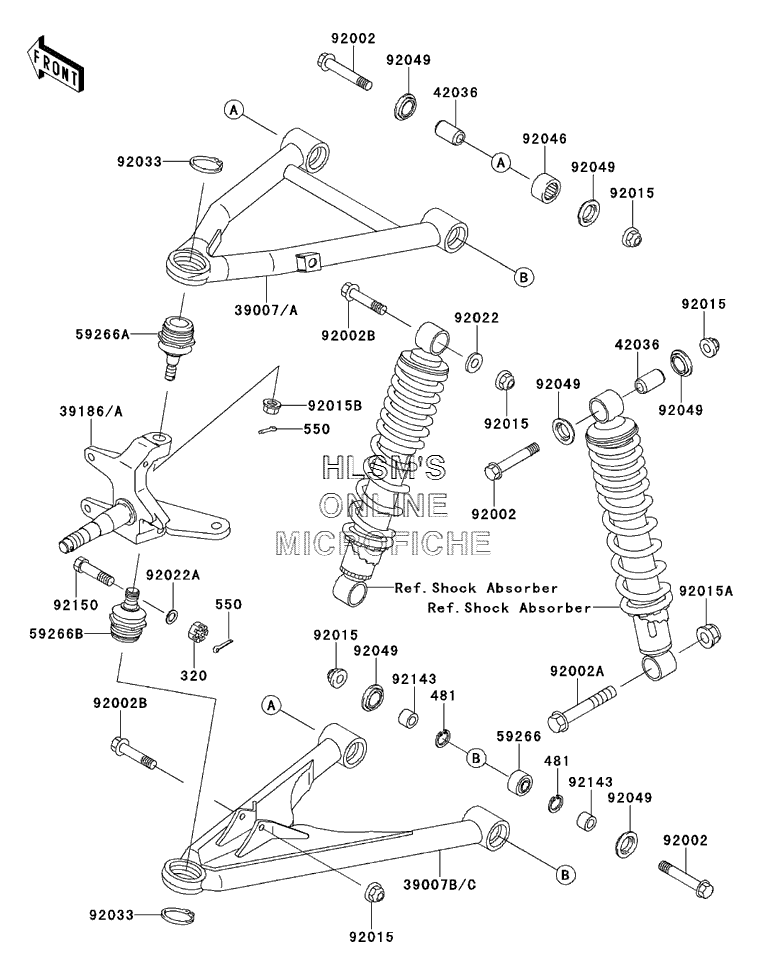

SUSPENSION для Kawasaki Lakota 300 (KEF300-A6) - 2000 года выпуска

  • №
    Артикул
    Название
  • 320
    320H1000 NUT-CASTLE
    NUT-CASTLE
  • 481
    481J2400 CIRCLIP
    CIRCLIP
  • 550
    550D2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
  • 39007
    39007-1220-5A ARM-SUSPENSION (LEFT) (UPPER) (SILVER NO.40)
    ARM-SUSPENSION (LEFT) (UPPER) (SILVER NO.40)
  • 39007A
    39007-1221-5A ARM-SUSPENSION (RIGHT) (UPPER) (SILVER NO.40)
    ARM-SUSPENSION (RIGHT) (UPPER) (SILVER NO.40)
  • 39007B
    39007-1222-5A ARM-SUSPENSION FRONT (LEFT) (LOWER) (SILVER)
    ARM-SUSPENSION FRONT (LEFT) (LOWER) (SILVER)
  • 39007C
    39007-1223-5A ARM-SUSPENSION FRONT (RIGHT) (LOWER) (SILVER)
    ARM-SUSPENSION FRONT (RIGHT) (LOWER) (SILVER)
  • 39186
    39186-1062 KNUCKLE (LEFT)
    KNUCKLE (LEFT)
  • 39186A
    39186-1064 KNUCKLE (RIGHT)
    KNUCKLE (RIGHT)
  • 42036
    42036-1183 SLEEVE, 10X17X40
    SLEEVE, 10X17X40
  • 59266
    59266-1011 JOINT-BALL
    JOINT-BALL
  • 59266A
    59266-1075 JOINT-BALL
    JOINT-BALL
  • 59266B
    59266-1098 JOINT-BALL
    JOINT-BALL
  • 92002
    92002-1738 BOLT, FLANGED, 10X61
    BOLT, FLANGED, 10X61
  • 92002A
    92002-1739 BOLT, FLANGED, 12X78
    BOLT, FLANGED, 12X78
  • 92002B
    92002-1740 BOLT, FLANGED, 10X46
    BOLT, FLANGED, 10X46
  • 92015
    92015-1597 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92015A
    92015-1617 NUT, FLANGED, LOCK, 12MM
    NUT, FLANGED, LOCK, 12MM
  • 92015B
    92015-1717 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92022
    92022-176 WASHER, 10X22X3.2
    WASHER, 10X22X3.2
  • 92022A
    92022-1829 WASHER, 10.2X16X1
    WASHER, 10.2X16X1
  • 92033
    92033-1218 RING-SNAP, 30MM
    RING-SNAP, 30MM
  • 92046
    92046-1046 BEARING-NEEDLE
    BEARING-NEEDLE
  • 92049
    92049-1223 SEAL-OIL, MHA17245.7F
    SEAL-OIL, MHA17245.7F
  • 92143
    92143-1010 COLLAR, 10X17X12
    COLLAR, 10X17X12
  • 92150
    92150-1226 BOLT, 10X44
    BOLT, 10X44
