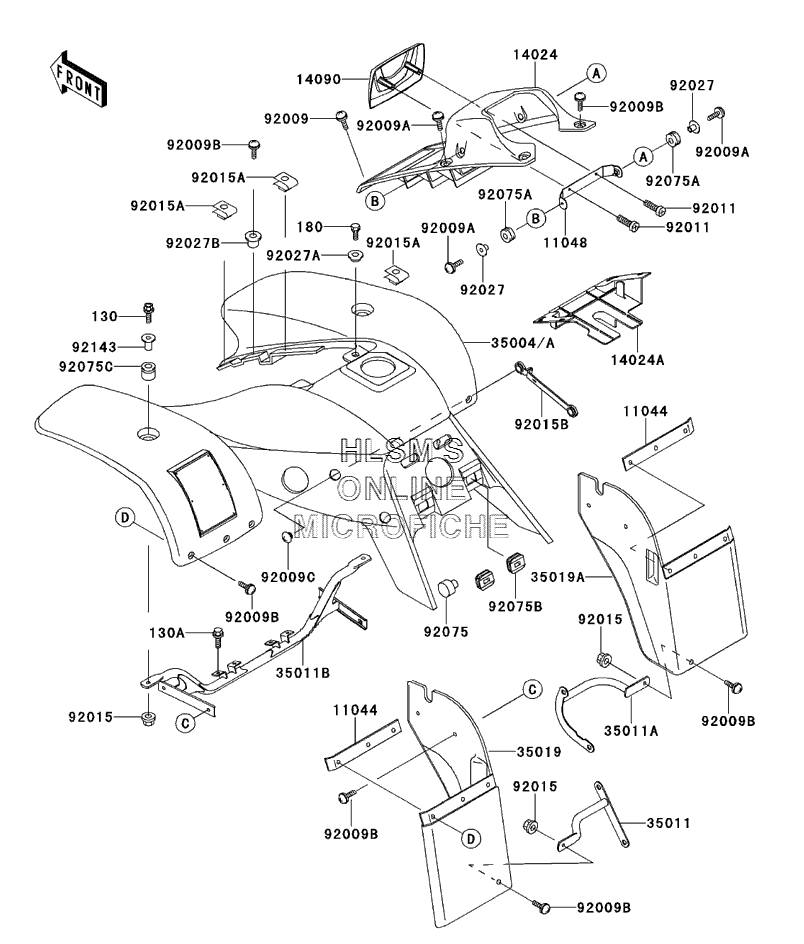

FENDER - FRONT для Kawasaki Lakota 300 (KEF300-A6) - 2000 года выпуска
-
№АртикулНазвание
-
130130G0635 BOLT-FLANGED, 6X35BOLT-FLANGED, 6X35
-
130A130P0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
180180D0635 BOLT-UPSET-WS, 6X35BOLT-UPSET-WS, 6X35
-
1104411044-1934 BRACKET, FLAPBRACKET, FLAP
-
1104811048-1742 BRACKET, HEAD LAMP COVERBRACKET, HEAD LAMP COVER
-
1402414024-1268-6D COVER, FRONT FENDER (BLACK)COVER, FRONT FENDER (BLACK)
-
14024A14024-1297 COVER, FRONT FENDER, INNERCOVER, FRONT FENDER, INNER
-
1409014090-1495-6D COVER, HEAD LAMP (BLACK)COVER, HEAD LAMP (BLACK)
-
3500435004-1379-6A FENDER-FRONT (H.GREEN)FENDER-FRONT (H.GREEN)
-
35004A35004-1379-6L FENDER-FRONT (F.RED)FENDER-FRONT (F.RED)
-
3501135011-1694-5A STAY, FRONT FLAP (LEFT) (SILVER)STAY, FRONT FLAP (LEFT) (SILVER)
-
35011A35011-1695-5A STAY, FRONT FLAP (RIGHT) (SILVER)STAY, FRONT FLAP (RIGHT) (SILVER)
-
35011B35011-1697-10 STAY, FR FENDER (BLACK)STAY, FR FENDER (BLACK)
-
3501935019-1172 FLAP, (LEFT)FLAP, (LEFT)
-
35019A35019-1173 FLAP, (RIGHT)FLAP, (RIGHT)
-
9200992009-1181 SCREW, 6X18 (BLACK)SCREW, 6X18 (BLACK)
-
92009A92009-1256 SCREW, 6X22 (BLACK)SCREW, 6X22 (BLACK)
-
92009B92009-1288 SCREW, 6X14SCREW, 6X14
-
92009C92009-1508 SCREW, 16MMSCREW, 16MM
-
9201192011-562 SCREWSCREW
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015A92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
92015B92015-1701 NUTNUT
-
9202792027-1450 COLLAR, L=13.1 (BLACK)COLLAR, L=13.1 (BLACK)
-
92027A92027-1933 COLLAR, L=5.6COLLAR, L=5.6
-
92027B92027-1964 COLLAR, L=4.7COLLAR, L=4.7
-
9207592075-023 DAMPER, DUAL SEATDAMPER, DUAL SEAT
-
92075A92075-1690 DAMPERDAMPER
-
92075B92075-1834 DAMPERDAMPER
-
92075C92075-1936 DAMPERDAMPER
-
9214392143-1100 COLLAR, L=19.6COLLAR, L=19.6
