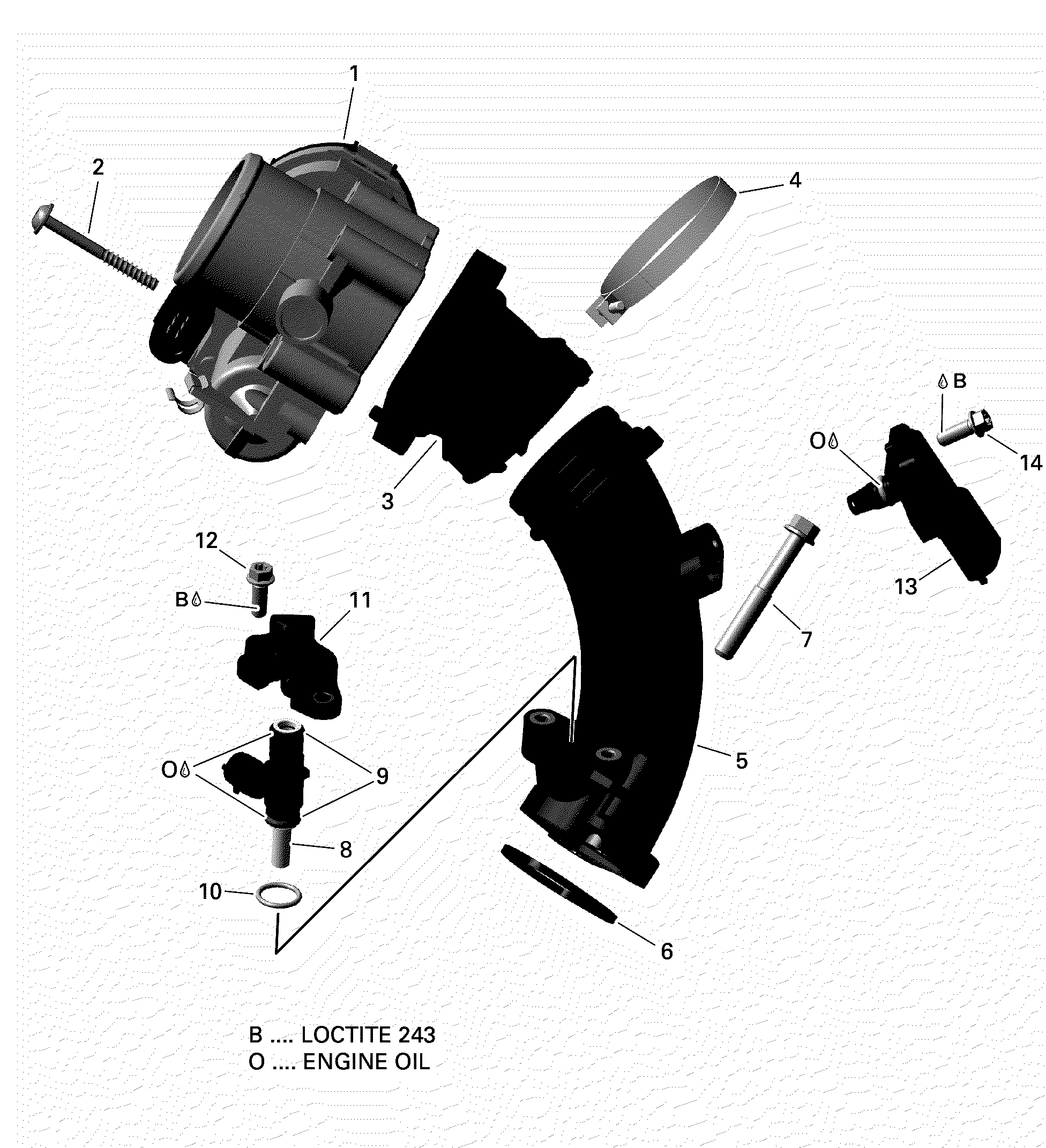

02- Air Intake Manifold And Throttle Body для BRP 001 - Defender HD5 - International - 2020

-
№АртикулНазвание
-
1420893147 Throttle Body Ass'yThrottle Body Ass'y
-
2420441588 Flanged Torx Screw M6 X 50Flanged Torx Screw M6 X 50
-
3420267174 Intake SocketIntake Socket
-
4420251480 ClampClamp
-
5420267527 Intake AdaPTOrIntake AdaPTOr
-
6420630642 GasketGasket
-
7420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
8420874839 Injection Valve Ass'yInjection Valve Ass'y
-
9420631220 O-RingO-Ring
-
10420631295 O-RingO-Ring
-
11420874901 Fuel RailFuel Rail
-
12420440164 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
13707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
14420440164 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
