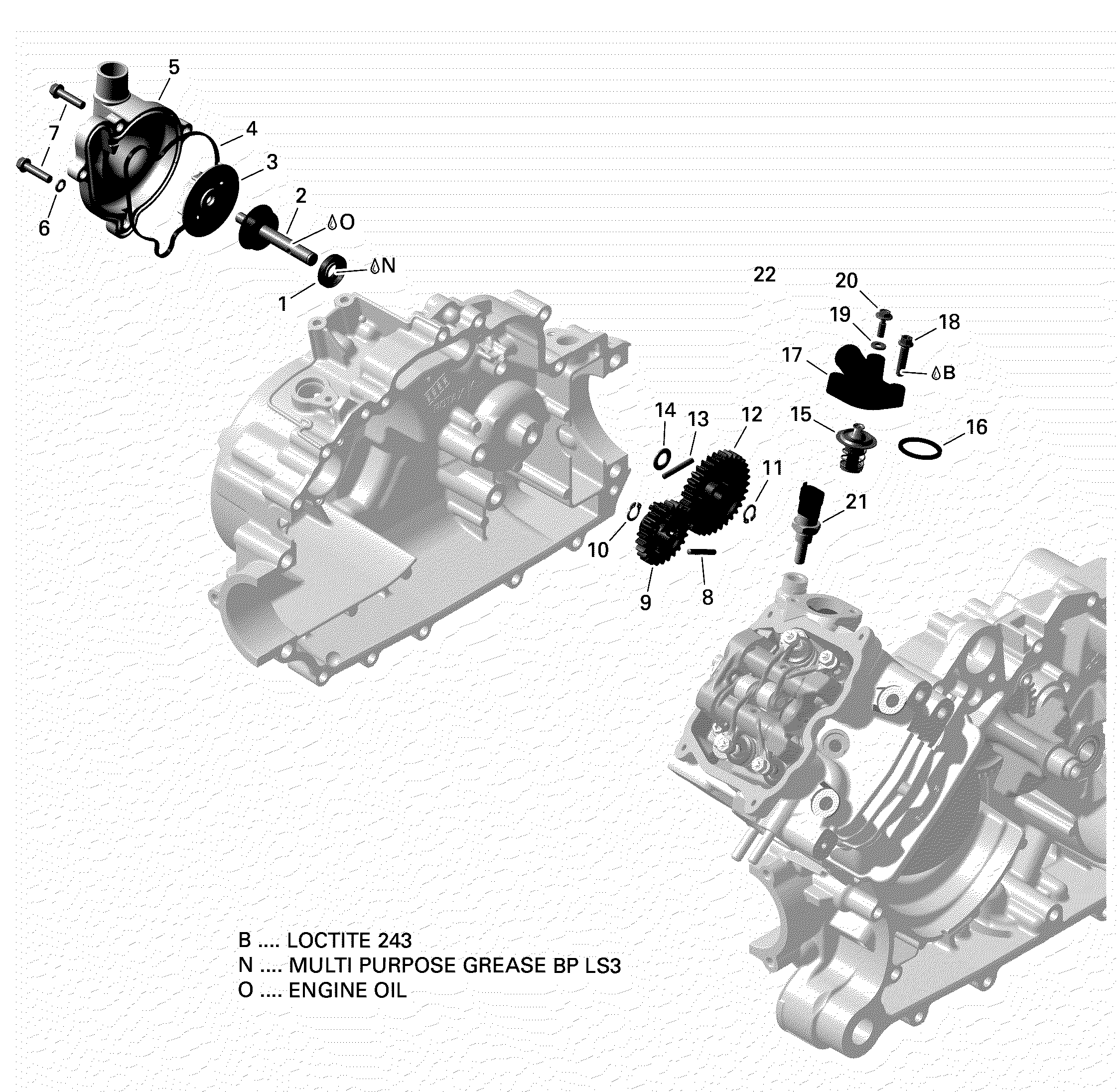

01- Engine Cooling для BRP 001 - Defender HD5 - International - 2020
-
№АртикулНазвание
-
2420620171 Waterpump Shaft Ass'yWaterpump Shaft Ass'y
-
3420222505 Water ImpellerWater Impeller
-
4420630271 GasketGasket
-
5420222680 Water Pump HousingWater Pump Housing
-
6420230415 Seal WasherSeal Washer
-
7420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
8420232431 Needle PinNeedle Pin
-
9420635191 Idle Gear, 25 TeethIdle Gear, 25 Teeth
-
10504152282 CirclipCirclip
-
11504152282 CirclipCirclip
-
12420635620 Idle Gear, 34 TeethIdle Gear, 34 Teeth
-
13420232431 Needle PinNeedle Pin
-
14420827590 Thrust WasherThrust Washer
-
15>16420222494 Thermostat 65° With Gasket Ass'yThermostat 65° With Gasket Ass'y
-
16420650300 Thermostat GasketThermostat Gasket
-
17420222691 Thermostat CoverThermostat Cover
-
18420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
19420650255 Gasket RingGasket Ring
-
20420441621 Screw M5 X 16Screw M5 X 16
-
21278002895 Temperature SensorTemperature Sensor
