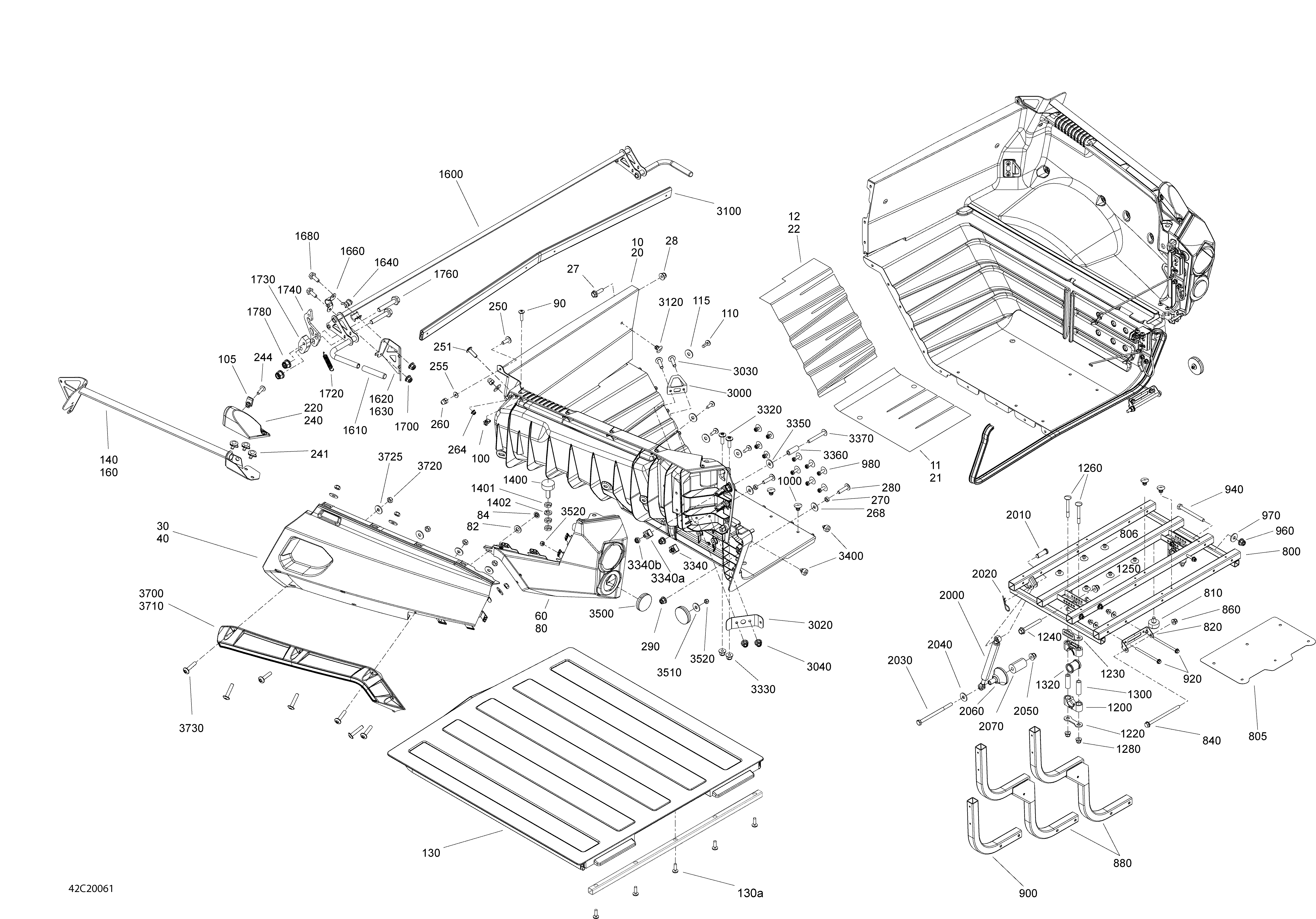

09- Rear Cargo Box - Box для BRP 003 - Commander MAX 1000R EFI - International - 2020

  • №
    Артикул
    Название
  • 10
    715002361 Left Box Kit
    Left Box Kit
  • 11
    708300809 Heat Deflector Sheet
    Heat Deflector Sheet
  • 12
    708300811 Heat Deflector Sheet
    Heat Deflector Sheet
  • 20
    715003387 Right Box Kit
    Right Box Kit
  • 21
    708300810 Heat Deflector Sheet
    Heat Deflector Sheet
  • 22
    708300812 Heat Deflector Sheet
    Heat Deflector Sheet
  • 27
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 28
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 30
    708302767 Boreal Green, LH Rear Fender
    Boreal Green, LH Rear Fender
  • 40
    708302768 Boreal Green, RH Rear Fender
    Boreal Green, RH Rear Fender
  • 60
    708301383 LH Rear Facia
    LH Rear Facia
  • 80
    708301384 RH Rear Facia
    RH Rear Facia
  • 82
    234081100 Flat Washer 8 mm, Nylon
    Flat Washer 8 mm, Nylon
  • 84
    732610072 Push Nut
    Push Nut
  • 90
    250000724 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 100
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 105
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 110
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 115
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 130
    708300131 Separator Pannel Ass'y. Includes 130 to 130a
    Separator Pannel Ass'y. Includes 130 to 130a
  • 130a
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 140
    708300231 LH Welded Rail
    LH Welded Rail
  • 160
    708300232 RH Welded Rail
    RH Welded Rail
  • 220
    708301380 LH Rail Cover
    LH Rail Cover
  • 240
    708301381 RH Rail Cover
    RH Rail Cover
  • 241
    293150190 Pop Rivet 3/16
    Pop Rivet 3/16
  • 244
    250000724 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 250
    250000721 Torx Truss Screw M6 X 16
    Torx Truss Screw M6 X 16
  • 251
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 255
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 260
    232361493 Domed Nut M6
    Domed Nut M6
  • 264
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 268
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 270
    708300737 Bushing
    Bushing
  • 280
    250000758 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 290
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 800
    708300875 Black Box Support
    Black Box Support
  • 805
    708300780 Heat Deflector
    Heat Deflector
  • 806
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 810
    708000884 Rubber Stopper
    Rubber Stopper
  • 820
    708300185 Bracket Pivot
    Bracket Pivot
  • 840
    230683034 Hex. Flanged Screw M8 X 130
    Hex. Flanged Screw M8 X 130
  • 860
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 880
    708300879 Black Welded Lateral Support
    Black Welded Lateral Support
  • 900
    708300877 Black Lateral Support
    Black Lateral Support
  • 920
    207669584 Hex. Flanged Screw M6 X 95
    Hex. Flanged Screw M6 X 95
  • 940
    207066544 Hex. Screw M6 X 65
    Hex. Screw M6 X 65
  • 960
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 970
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 980
    293150100 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1000
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1200
    506150400 Housing Half
    Housing Half
  • 1220
    506150600 Stopper Plate
    Stopper Plate
  • 1230
    708300210 Adjustable Stopper Plate
    Adjustable Stopper Plate
  • 1240
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 1250
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 1260
    207787044 Carriage Bolt M8 X 70
    Carriage Bolt M8 X 70
  • 1280
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 1300
    506150500 Housing Bushing
    Housing Bushing
  • 1320
    708300172 Pivot Bushing
    Pivot Bushing
  • 1400
    293720091 Frame Rubber Bumper
    Frame Rubber Bumper
  • 1401
    232180600 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 1402
    234181401 Lock Washer 8 mm
    Lock Washer 8 mm
  • 1600
    708300751 Cargo Handle Ass'y
    Cargo Handle Ass'y
  • 1610
    708300358 Cap Latch Lever
    Cap Latch Lever
  • 1620
    708300278 LH Latch Lever Support
    LH Latch Lever Support
  • 1630
    708300351 RH Latch Lever Support
    RH Latch Lever Support
  • 1640
    705500033 Half Ring
    Half Ring
  • 1660
    708300392 Clamp Reatiner
    Clamp Reatiner
  • 1680
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 1700
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 1720
    708300454 Spring
    Spring
  • 1730
    708300902 Spacer
    Spacer
  • 1740
    708300136 Box Retainer
    Box Retainer
  • 1760
    250001028 Hex. Flanged Screw M6 X 45
    Hex. Flanged Screw M6 X 45
  • 1780
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 2000
    708301136 Gaz Shock
    Gaz Shock
  • 2010
    414079100 Pin
    Pin
  • 2020
    414575600 Hair Pin
    Hair Pin
  • 2030
    207069044 Hex. Screw M6 X 90
    Hex. Screw M6 X 90
  • 2040
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 2050
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 2060
    708301059 Spacer
    Spacer
  • 2070
    708300470 Spacer
    Spacer
  • 3000
    708300183 Retaining Plate
    Retaining Plate
  • 3020
    708300206 Retaining Plate Support
    Retaining Plate Support
  • 3030
    250000758 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 3040
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 3100
    708301633 Front Support
    Front Support
  • 3120
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 3320
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 3330
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 3340
    269500725 Nut Housing Ass'y. Includes 3340 to 3340b
    Nut Housing Ass'y. Includes 3340 to 3340b
  • 3340a
    269500252 M6 Nut Housing Ass'y
    M6 Nut Housing Ass'y
  • 3340b
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 3350
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 3360
    708300736 Spacer
    Spacer
  • 3370
    250000748 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 3400
    293830005 Rubber Bumper
    Rubber Bumper
  • 3500
    705011221 Red Reflector
    Red Reflector
  • 3510
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 3520
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 3700
    705008671 LH Upper Rear Mudguards
    LH Upper Rear Mudguards
  • 3710
    705008673 RH Upper Rear Mudguards
    RH Upper Rear Mudguards
  • 3720
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 3725
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 3730
    250000842 Torx Screw M6 X 30 Stainless
    Torx Screw M6 X 30 Stainless
