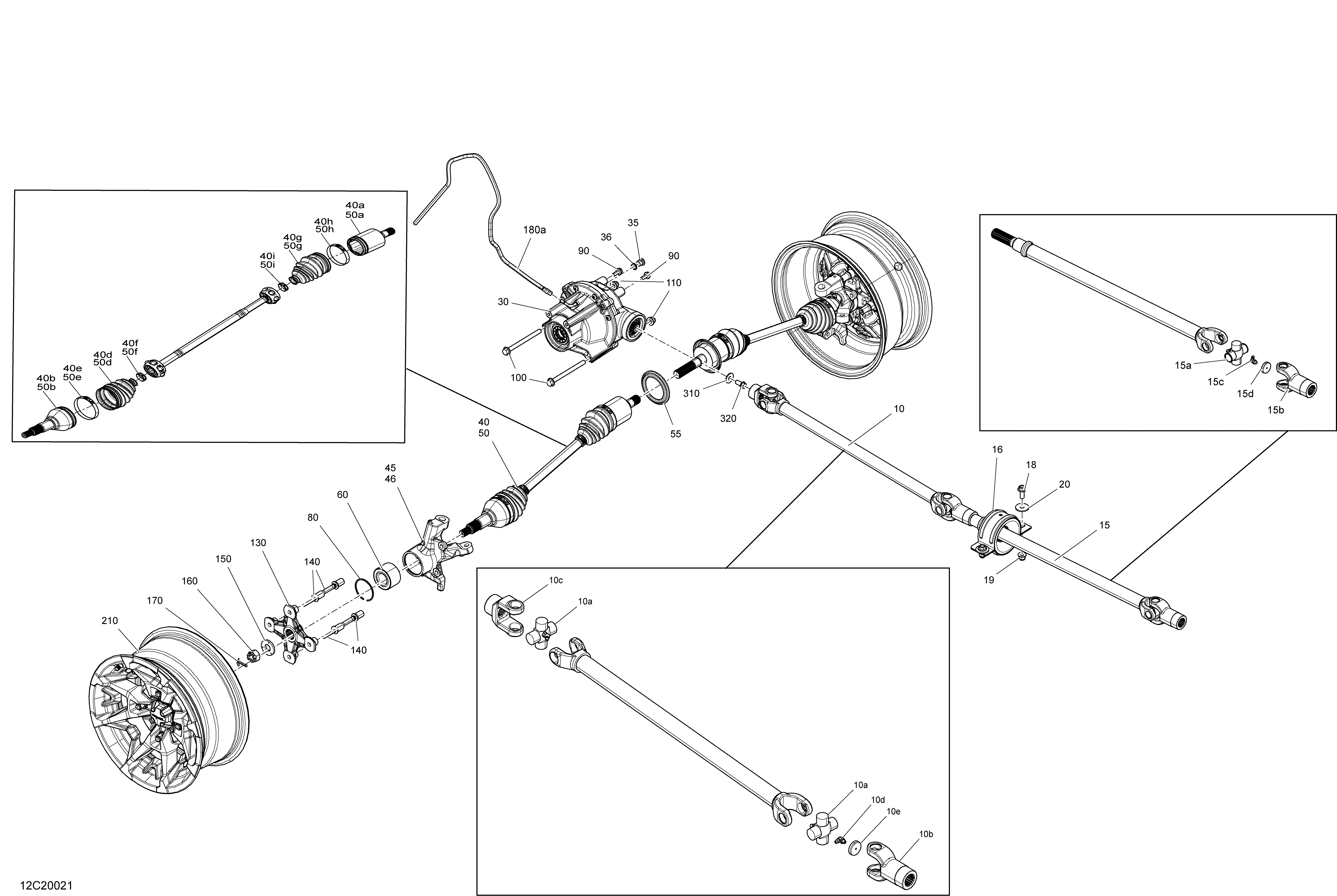

07- Front Drive - Common Parts для BRP 003 - Commander MAX 1000R EFI - International - 2020

  • №
    Артикул
    Название
  • 10
    705402066 Axle Drive Ass'y
    Axle Drive Ass'y
  • 10a
    715900435 U-Joint Cross Kit
    U-Joint Cross Kit
  • 10b
    715900497 Fixed Yoke Joint
    Fixed Yoke Joint
  • 10c
    715900231 Yoke Joint
    Yoke Joint
  • 10d
    703500815 Grease Fitting
    Grease Fitting
  • 10e
    715900483 Cover
    Cover
  • 15
    705402041 Drive Axle Ass'y
    Drive Axle Ass'y
  • 15a
    715900435 U-Joint Cross Kit
    U-Joint Cross Kit
  • 15b
    715900231 Yoke Joint
    Yoke Joint
  • 15c
    703500815 Grease Fitting
    Grease Fitting
  • 15d
    715900483 Cover
    Cover
  • 16
    705401646 Ball Bearing
    Ball Bearing
  • 18
    207602544 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 19
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 20
    503032900 Washer
    Washer
  • 30
    703500908 Front Differential. Includes 30 to 30y
    Front Differential. Includes 30 to 30y
  • 30
    703500908 Front Differential. Includes 30 to 30y
    Front Differential. Includes 30 to 30y
  • 35
    705500504 Fill Level Plug
    Fill Level Plug
  • 36
    705500506 Copper Washer
    Copper Washer
  • 40
    705401872 RH Half Shaft
    RH Half Shaft
  • 40a
    715900431 RH Plunging Joint
    RH Plunging Joint
  • 40b
    715900427 CV Joint
    CV Joint
  • 40c
    705401349 Circlip Joint. Not Shown
    Circlip Joint. Not Shown
  • 40d
    705401345 Boot Kit, Wheel Side. Includes to
    Boot Kit, Wheel Side. Includes to
  • 40e
    715900282 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 40f
    715900283 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 40g
    705401346 Boot Kit, Différential Side. Includes to
    Boot Kit, Différential Side. Includes to
  • 40h
    715900284 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 40i
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 45
    705401548 LH Front Knuckle
    LH Front Knuckle
  • 46
    705401549 RH Front Knuckle
    RH Front Knuckle
  • 50
    705401871 LH Half Shaft
    LH Half Shaft
  • 50a
    715900430 LH Plunging Joint
    LH Plunging Joint
  • 50b
    715900427 CV Joint
    CV Joint
  • 50c
    705401349 Circlip Joint. Not Shown
    Circlip Joint. Not Shown
  • 50d
    705401345 Boot Kit, Wheel Side. Includes to
    Boot Kit, Wheel Side. Includes to
  • 50e
    715900282 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 50f
    715900283 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 50g
    705401346 Boot Kit, Différential Side. Includes to
    Boot Kit, Différential Side. Includes to
  • 50h
    715900284 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 50i
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 55
    705400780 Wear Sleeve
    Wear Sleeve
  • 60
    293350118 Cone Bearing
    Cone Bearing
  • 80
    293370019 Circlip
    Circlip
  • 90
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 100
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 110
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 130
    705501900 Wheel Hub
    Wheel Hub
  • 140
    250300060 Wheel Stud
    Wheel Stud
  • 150
    250200171 Conical Spring Washer M18
    Conical Spring Washer M18
  • 160
    232291413 Hex. Flanged Castellated Nut M18
    Hex. Flanged Castellated Nut M18
  • 170
    250400071 Cotter Pin
    Cotter Pin
  • 180a
    293830193 Polyurethane Hose
    Polyurethane Hose
  • 310
    250200014 Flat Washer M10
    Flat Washer M10
  • 320
    250001046 Hex Flanged Screw M10 X 20 S.GRIP
    Hex Flanged Screw M10 X 20 S.GRIP
