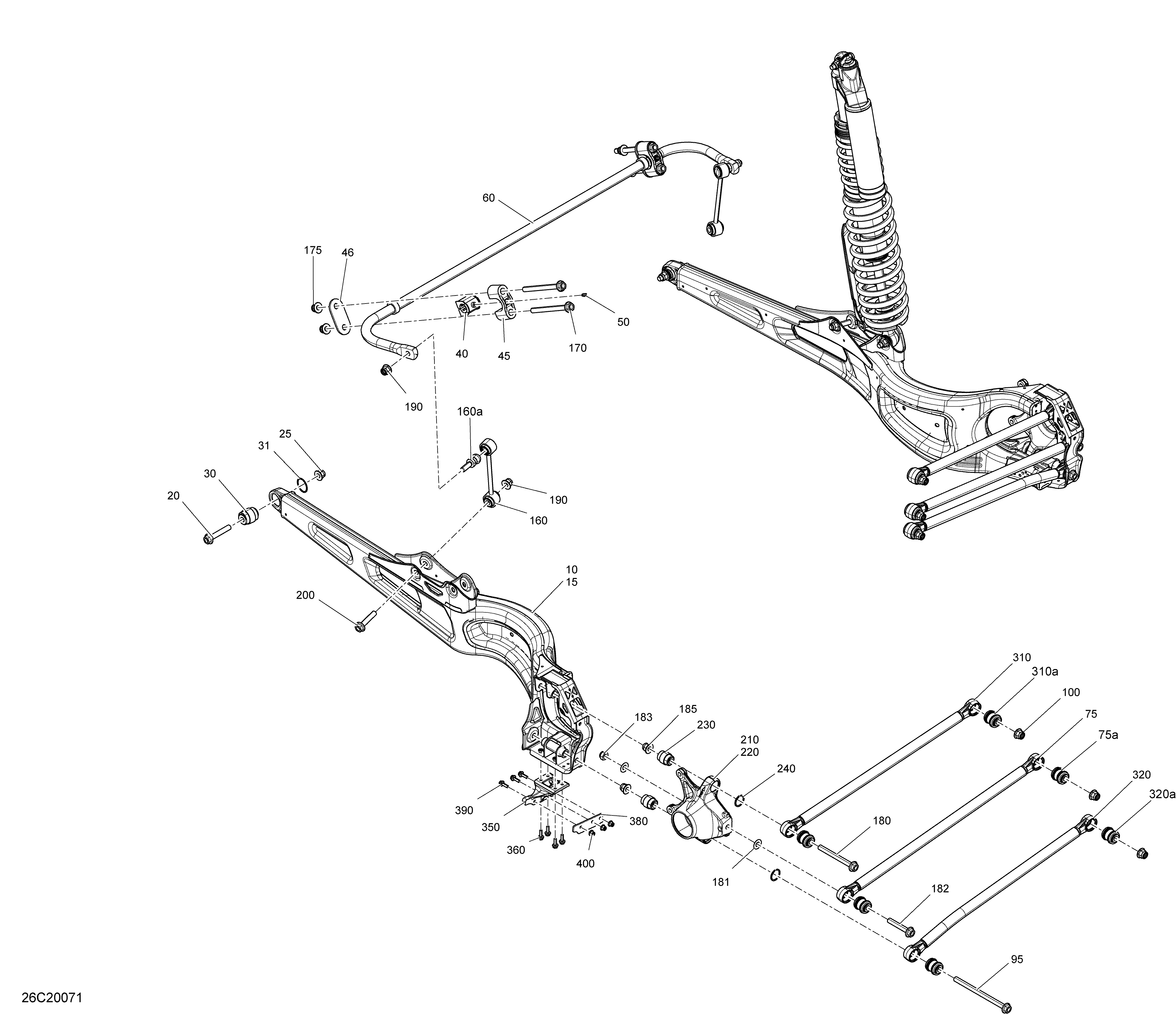

08- Rear Suspension - STD для BRP 008 - Maverick MAX Turbo R, Turbo RR - STD_XDS_XRS - North America - 2020

  • №
    Артикул
    Название
  • 10
    706002567 Black, LH Rear Arm. 64 inch wide
    Black, LH Rear Arm. 64 inch wide
  • 10
    706002694 Black LH Rear Arm. 72 inch wide
    Black LH Rear Arm. 72 inch wide
  • 15
    706002568 Black, RH Rear Arm. 64 inch wide
    Black, RH Rear Arm. 64 inch wide
  • 15
    706002695 Black RH Rear Arm. 72 inch wide
    Black RH Rear Arm. 72 inch wide
  • 20
    250000858 Hexagonal Flanged Screw M12 X 70
    Hexagonal Flanged Screw M12 X 70
  • 25
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 30
    706001373 Radial Joint
    Radial Joint
  • 31
    293370093 Retaining Ring
    Retaining Ring
  • 40
    706002302 Cushion
    Cushion
  • 45
    706002303 Clamp
    Clamp
  • 46
    706002357 Support Plate
    Support Plate
  • 50
    408200700 Grease Fitting
    Grease Fitting
  • 60
    706002100 Stabilizer Bar Ass'y
    Stabilizer Bar Ass'y
  • 75
    706002099 Central Control Link. 64 inch wide. Includes 75 to 75a
    Central Control Link. 64 inch wide. Includes 75 to 75a
  • 75
    706002307 Central Control Link. 72 inch wide. Includes 75 to 75a
    Central Control Link. 72 inch wide. Includes 75 to 75a
  • 75a
    706002135 Radial Joint. 64 inch wide
    Radial Joint. 64 inch wide
  • 75a
    706002135 Radial Joint. 72 inch wide
    Radial Joint. 72 inch wide
  • 95
    250000862 Screw Flange M12 X 175
    Screw Flange M12 X 175
  • 100
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 160
    706003752 Rear Stabilizer Bar Link. Includes 160 to 160a
    Rear Stabilizer Bar Link. Includes 160 to 160a
  • 160a
    706002135 Radial Joint
    Radial Joint
  • 170
    250000861 Screw Flange M12 X 145
    Screw Flange M12 X 145
  • 175
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 180
    250000860 Screw Flange M12 X 115
    Screw Flange M12 X 115
  • 181
    250200086 Flat Washer
    Flat Washer
  • 182
    250000858 Hexagonal Flanged Screw M12 X 70
    Hexagonal Flanged Screw M12 X 70
  • 183
    232521416 Elastic Flanged Stop Nut M12
    Elastic Flanged Stop Nut M12
  • 185
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 190
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 200
    250000857 Screw Flange M12 X 60
    Screw Flange M12 X 60
  • 210
    706001960 LH Khuckle
    LH Khuckle
  • 220
    706001961 RH Khuckle
    RH Khuckle
  • 230
    706002317 Radial Joint
    Radial Joint
  • 240
    293370118 Retaining Ring
    Retaining Ring
  • 310
    706002136 Upper Control Link. 64 inch wide. Includes 310 to 310a
    Upper Control Link. 64 inch wide. Includes 310 to 310a
  • 310
    706002751 Upper Control Link. 72 inch wide. Includes 310 to 310a
    Upper Control Link. 72 inch wide. Includes 310 to 310a
  • 310a
    706002135 Radial Joint. 64 inch wide
    Radial Joint. 64 inch wide
  • 310a
    706002135 Radial Joint. 72 inch wide
    Radial Joint. 72 inch wide
  • 320
    706002139 Lower Control Link. 64 inch wide. Includes 320 to 320a
    Lower Control Link. 64 inch wide. Includes 320 to 320a
  • 320
    706002311 Lower Control Link. 72 inch wide. Includes 320 to 320a
    Lower Control Link. 72 inch wide. Includes 320 to 320a
  • 320a
    706002135 Radial Joint. 64 inch wide
    Radial Joint. 64 inch wide
  • 320a
    706002135 Radial Joint. 72 inch wide
    Radial Joint. 72 inch wide
  • 350
    706002905 Deflector
    Deflector
  • 360
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 380
    706002851 Wear Plate
    Wear Plate
  • 390
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 400
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
