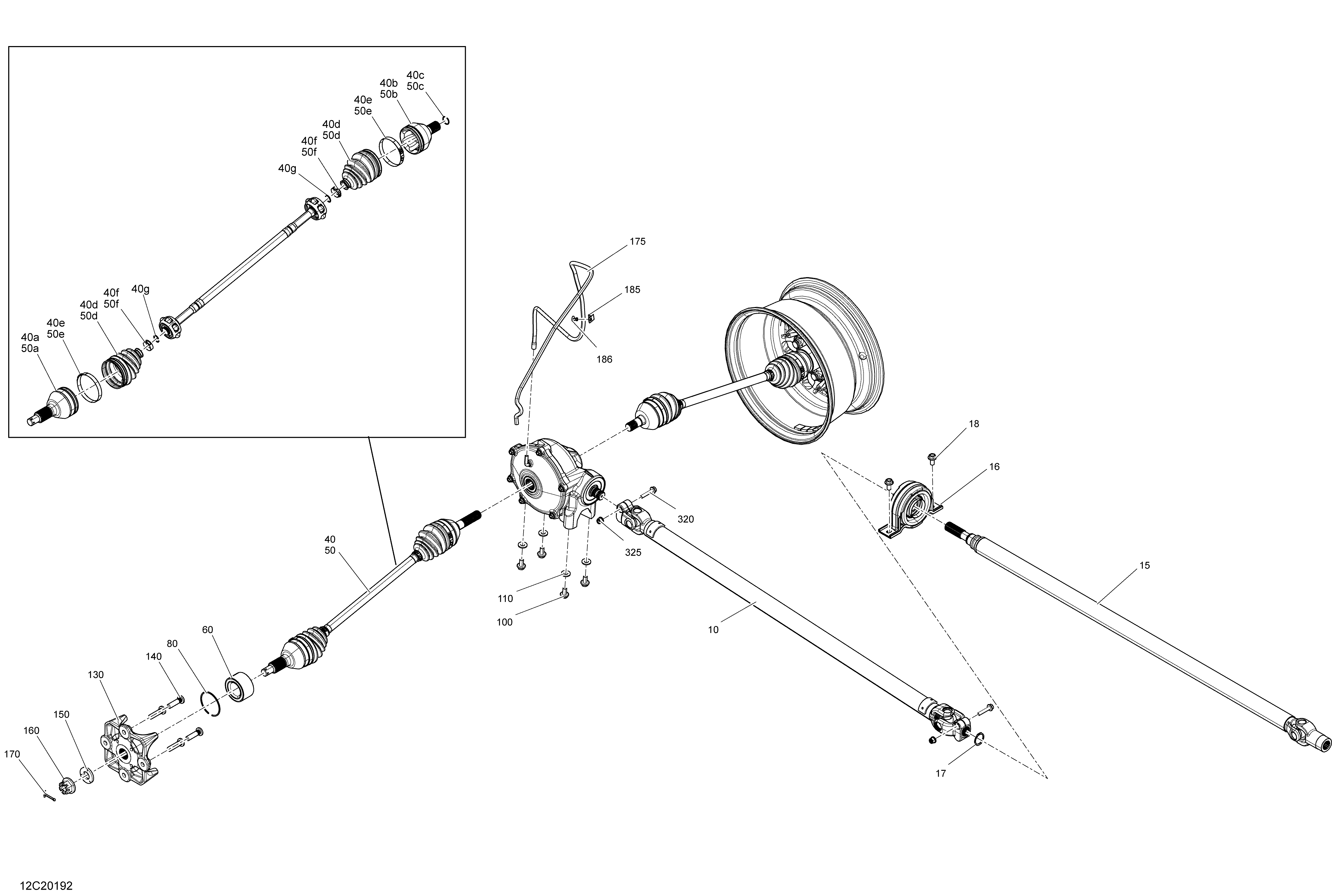

07- Front Drive - Common Parts для BRP 008 - Maverick MAX Turbo R, Turbo RR - STD_XDS_XRS - North America - 2020

  • №
    Артикул
    Название
  • 16
    705401938 Bearing
    Bearing
  • 17
    293370098 Snap Ring
    Snap Ring
  • 18
    207502046 Hex. Flanged Screw M10 X 20
    Hex. Flanged Screw M10 X 20
  • 40
    705401634 Half Shaft. XDS. Includes 40 to 40g
    Half Shaft. XDS. Includes 40 to 40g
  • 40
    705402048 Half Shaft. XRS. Includes 40 to 40g
    Half Shaft. XRS. Includes 40 to 40g
  • 40a
    715900574 CV Joint. XDS_XRS
    CV Joint. XDS_XRS
  • 40b
    715900575 Plunging Joint. XDS_XRS
    Plunging Joint. XDS_XRS
  • 40c
    715900569 Circlip. XDS_XRS
    Circlip. XDS_XRS
  • 40d
    705401354 Boot Kit, Wheel Side. XDS_XRS. Includes 40d to 40f
    Boot Kit, Wheel Side. XDS_XRS. Includes 40d to 40f
  • 40e
    715900260 Oetiker Clamp, Large. XDS_XRS
    Oetiker Clamp, Large. XDS_XRS
  • 40f
    715900261 Oetiker Clamp, Small. XDS_XRS
    Oetiker Clamp, Small. XDS_XRS
  • 40g
    715900580 O-ring. XDS_XRS
    O-ring. XDS_XRS
  • 40
    705402098 RH Half Shaft. STD. Includes 40 to 40f
    RH Half Shaft. STD. Includes 40 to 40f
  • 40a
    715900452 CV Joint. STD
    CV Joint. STD
  • 40b
    715900454 RH Plunging Joint. STD
    RH Plunging Joint. STD
  • 40c
    705401349 Circlip Joint. STD
    Circlip Joint. STD
  • 40d
    705401354 Boot Kit, Wheel Side. STD. Includes 40d to 40f
    Boot Kit, Wheel Side. STD. Includes 40d to 40f
  • 40e
    715900260 Oetiker Clamp, Large. STD
    Oetiker Clamp, Large. STD
  • 40f
    715900261 Oetiker Clamp, Small. STD
    Oetiker Clamp, Small. STD
  • 50
    705402097 LH Half Shaft. STD. Includes 50 to 50f
    LH Half Shaft. STD. Includes 50 to 50f
  • 50a
    715900452 CV Joint. STD
    CV Joint. STD
  • 50b
    715900453 LH Plunging Joint. STD
    LH Plunging Joint. STD
  • 50c
    705401349 Circlip Joint. STD
    Circlip Joint. STD
  • 50d
    705401354 Boot Kit, Wheel Side. STD. Includes 50d to 50f
    Boot Kit, Wheel Side. STD. Includes 50d to 50f
  • 50e
    715900260 Oetiker Clamp, Large. STD
    Oetiker Clamp, Large. STD
  • 50f
    715900261 Oetiker Clamp, Small. STD
    Oetiker Clamp, Small. STD
  • 60
    293350129 Ball Bearing
    Ball Bearing
  • 80
    293370102 Circlip
    Circlip
  • 100
    207502046 Hex. Flanged Screw M10 X 20
    Hex. Flanged Screw M10 X 20
  • 110
    234201474 Conical Spring Washer 10 mm
    Conical Spring Washer 10 mm
  • 130
    705502122 Wheel Hub
    Wheel Hub
  • 140
    250300625 Wheel Stud M12X1.5
    Wheel Stud M12X1.5
  • 150
    250200170 Conical Spring Washer M20
    Conical Spring Washer M20
  • 160
    250100193 Castle Nut M20
    Castle Nut M20
  • 170
    250400084 Cotter Pin
    Cotter Pin
  • 175
    293830193 Polyurethane Hose
    Polyurethane Hose
  • 185
    518321570 Open Clamp
    Open Clamp
  • 186
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 320
    250001050 Hex. Flanged Screw M8 X 42
    Hex. Flanged Screw M8 X 42
  • 325
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
