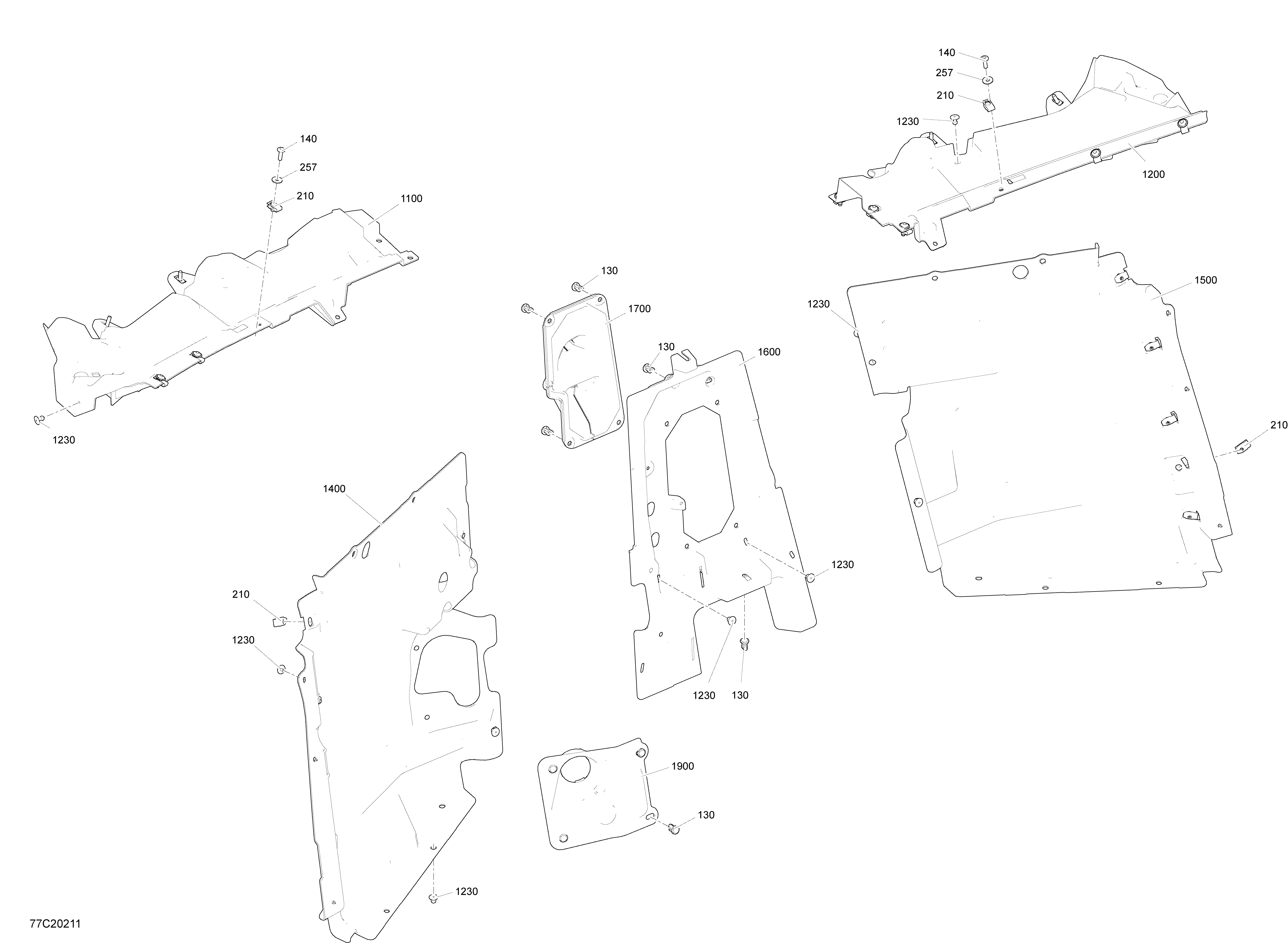

09- Cab Interior - Firewall Section - XMR для BRP 005 - Maverick Turbo RR - XMR - North America - 2020
-
№АртикулНазвание
-
130293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
140250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
257234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1100707900337 LH Front Upper DeflectorLH Front Upper Deflector
-
1200707900338 RH Front Upper DeflectorRH Front Upper Deflector
-
1230293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1400707900341 LH Front BulkheadLH Front Bulkhead
-
1500707900342 RH Front BulkheadRH Front Bulkhead
-
1600707900407 Front Bulkhead PanelFront Bulkhead Panel
-
1700707900701 GrommetGrommet
-
1900707900754 Steering Column CoverSteering Column Cover
