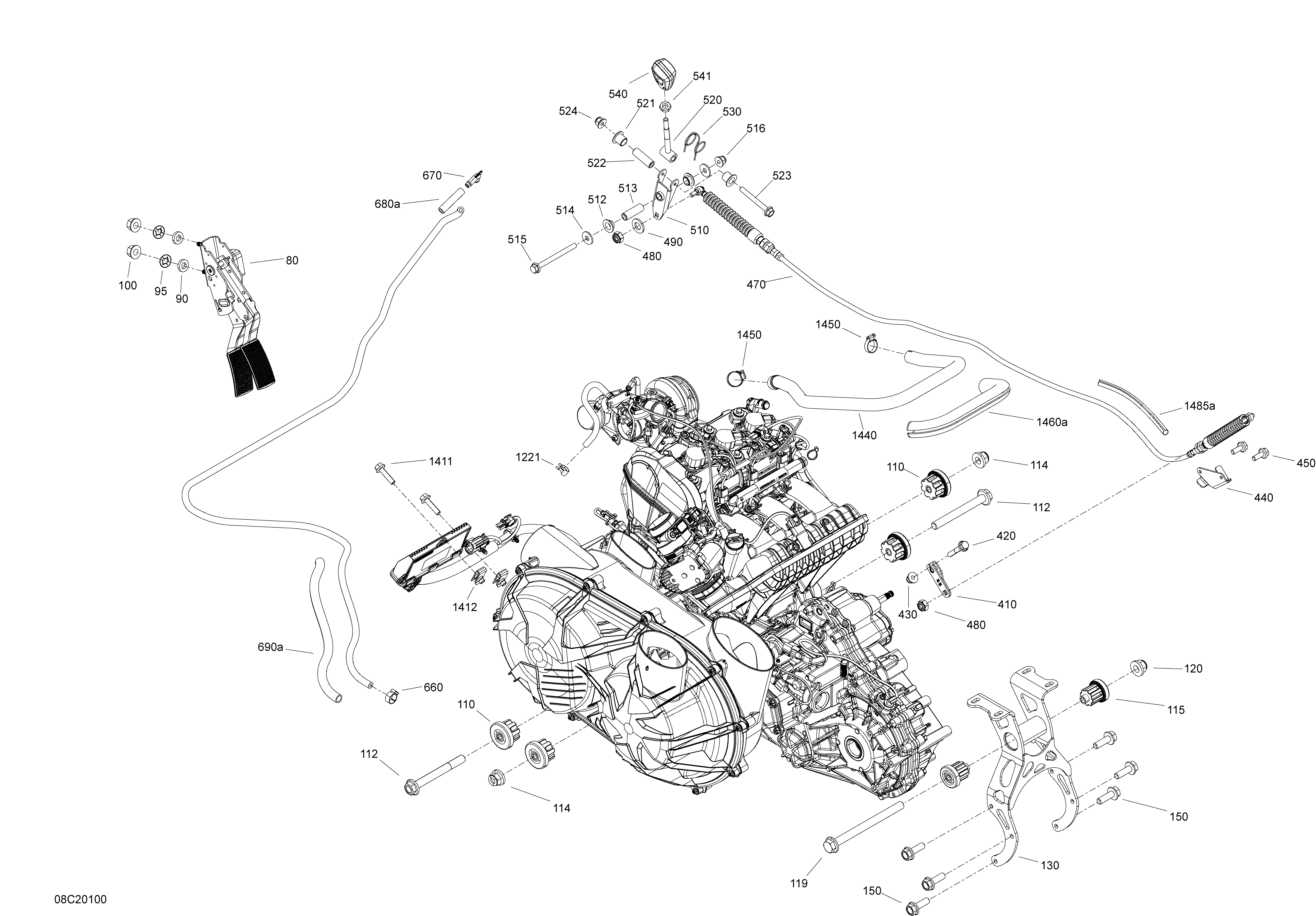

01- Engine - Vehicule для BRP 005 - Maverick Turbo RR - XMR - North America - 2020

  • №
    Артикул
    Название
  • 80
    707001803 Pedal Throttle
    Pedal Throttle
  • 90
    707001990 Bushing
    Bushing
  • 95
    250100031 Push Nut
    Push Nut
  • 100
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 110
    707002550 Vibration Damper
    Vibration Damper
  • 112
    207609046 Screw-Hex Flange M10 X 90
    Screw-Hex Flange M10 X 90
  • 114
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 115
    707002551 Vibration Damper
    Vibration Damper
  • 119
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 120
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 130
    707001881 Rear Engine Support
    Rear Engine Support
  • 150
    207582544 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 410
    707000911 Lever
    Lever
  • 420
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 430
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 440
    707001614 Cable Support
    Cable Support
  • 450
    207561644 Hex.Fla. Screw M6 X 16, Scotch Grip
    Hex.Fla. Screw M6 X 16, Scotch Grip
  • 470
    707001809 Shifting Cable
    Shifting Cable
  • 480
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 490
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 510
    707000828 Lower Lever Arm
    Lower Lever Arm
  • 512
    707000847 Flanged Bushing
    Flanged Bushing
  • 513
    707001376 Bushing
    Bushing
  • 514
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 515
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 516
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 520
    707000711 Upper Lever Arm
    Upper Lever Arm
  • 521
    707000869 Flanged Bushing
    Flanged Bushing
  • 522
    707001376 Bushing
    Bushing
  • 523
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 524
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 530
    707000750 Lever Arm Spring
    Lever Arm Spring
  • 540
    707000965 Lever Button
    Lever Button
  • 541
    232180491 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 660
    293650042 Oetiker Clamp
    Oetiker Clamp
  • 670
    293710171 Elbow Fitting
    Elbow Fitting
  • 680a
    293830193 Polyurethane Hose
    Polyurethane Hose
  • 690a
    710004711 Tubing 13 mm
    Tubing 13 mm
  • 1221
    414420700 Spring Clamp
    Spring Clamp
  • 1411
    207662554 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 1412
    250100198 Panel Nut , M6 X 1.0
    Panel Nut , M6 X 1.0
  • 1440
    707002452 Crankcase Hose
    Crankcase Hose
  • 1450
    293650051 Tridon Gear Clamp
    Tridon Gear Clamp
  • 1460a
    710005587 Tubing 22 mm
    Tubing 22 mm
  • 1485a
    415079900 Tubing 10 mm
    Tubing 10 mm
