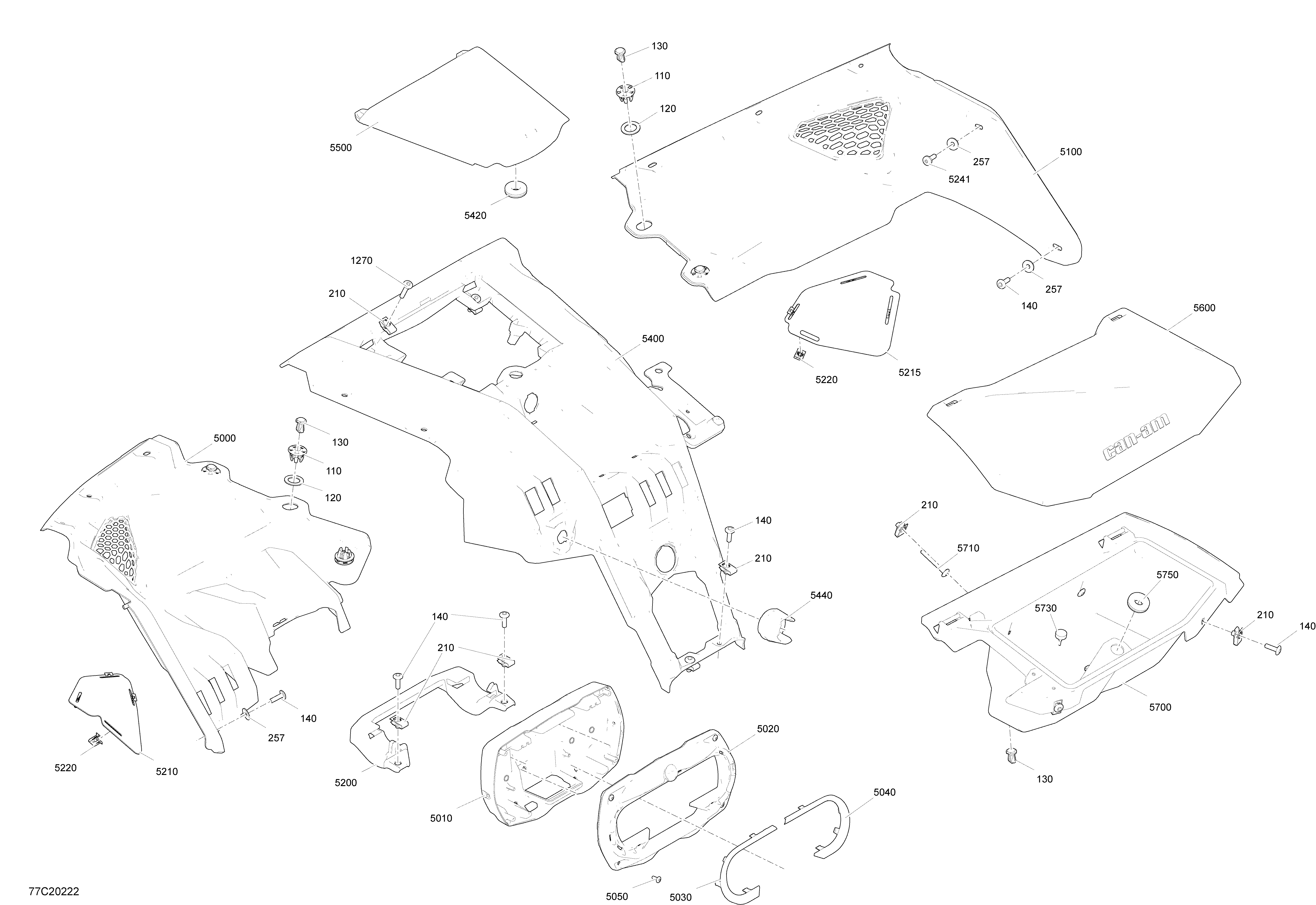

09- Cab Interior - Dashboard Section - XRC для BRP 003 - Maverick Turbo - XRC - North America - 2020
-
№АртикулНазвание
-
110707900133 InsertInsert
-
120503189273 WasherWasher
-
130293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
140250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
205250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
257234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1270250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
5000715005325 LH Dashboard KitLH Dashboard Kit
-
5010709402141 Rear Gauge TrimRear Gauge Trim
-
5020709402142 Front Gauge TrimFront Gauge Trim
-
5030705012349 Deep Black, LH Trim GaugeDeep Black, LH Trim Gauge
-
5040705012351 Deep Black, RH Trim GaugeDeep Black, RH Trim Gauge
-
5050250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
5100707900698 RH DashboardRH Dashboard
-
5200707900479 Dash SupportDash Support
-
5210707900465 LH Speaker CoverLH Speaker Cover
-
5215707900590 RH Speaker CoverRH Speaker Cover
-
5220517302785 Edge ClipEdge Clip
-
5241250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
5400707900752 Central DashboardCentral Dashboard
-
5420517303756 GrommetGrommet
-
5440707900598 Key ProtectorKey Protector
-
5500707900400 Dash CoverDash Cover
-
5600715004067 Cover Glove Box KitCover Glove Box Kit
-
5700707900350 Glove BoxGlove Box
-
5710250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5730708000759 Rubber StopperRubber Stopper
-
5750517303756 GrommetGrommet
