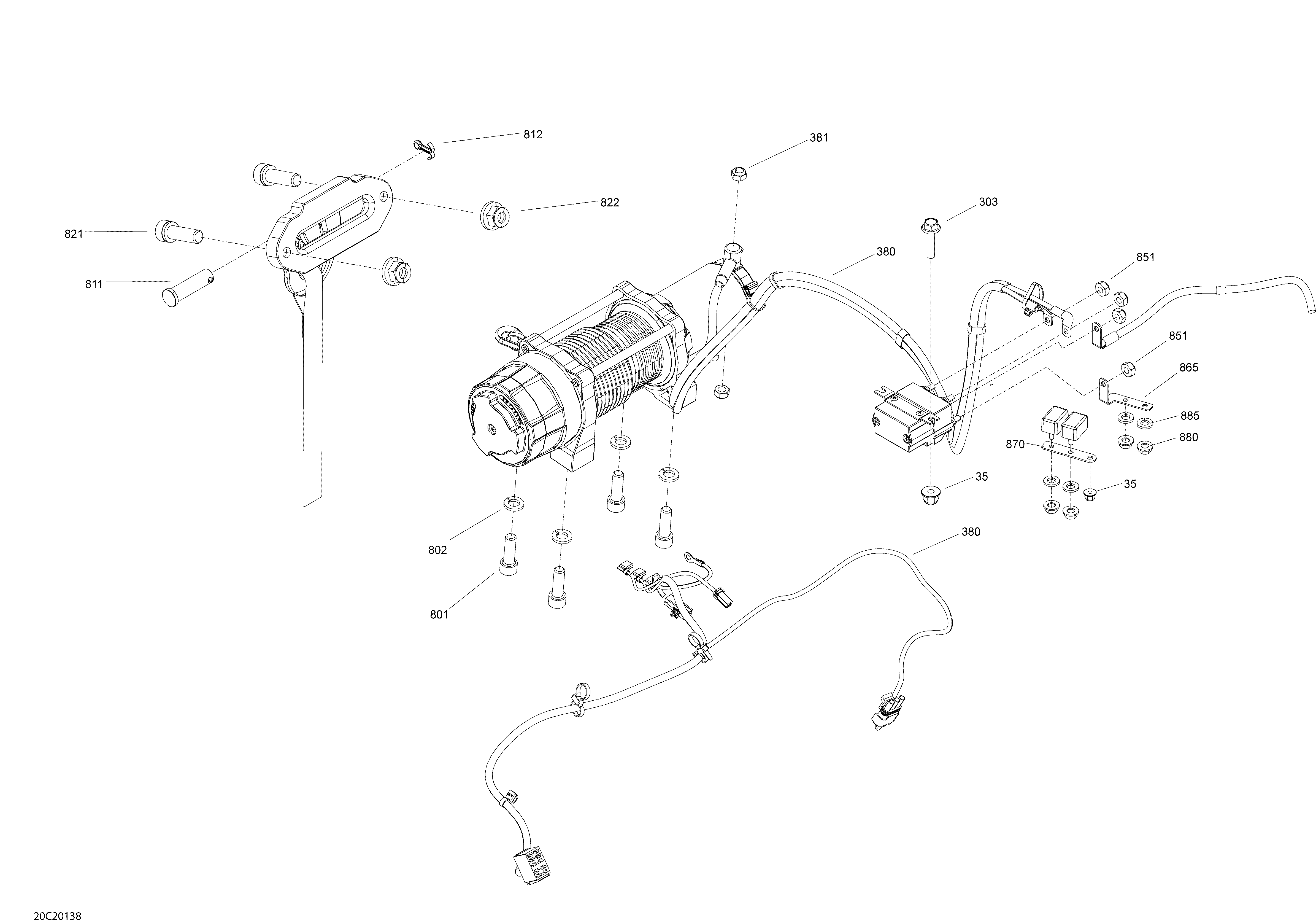

10- Electric - System - Winch для BRP 003 - Maverick Turbo - XRC - North America - 2020

  • №
    Артикул
    Название
  • 35
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 303
    207662554 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 380
    710006470 Winch Cables
    Winch Cables
  • 381
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 801
    205082544 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 802
    234181401 Lock Washer 8 mm
    Lock Washer 8 mm
  • 811
    710006995 Lock Pin
    Lock Pin
  • 812
    710006994 Cotter Pin
    Cotter Pin
  • 821
    205003044 Socket Screw M10 x 30
    Socket Screw M10 x 30
  • 822
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 851
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 865
    710006400 Copper Busbar
    Copper Busbar
  • 870
    710006401 Copper Busbar
    Copper Busbar
  • 880
    250100071 Hex. Flanged Nut M5
    Hex. Flanged Nut M5
  • 885
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
