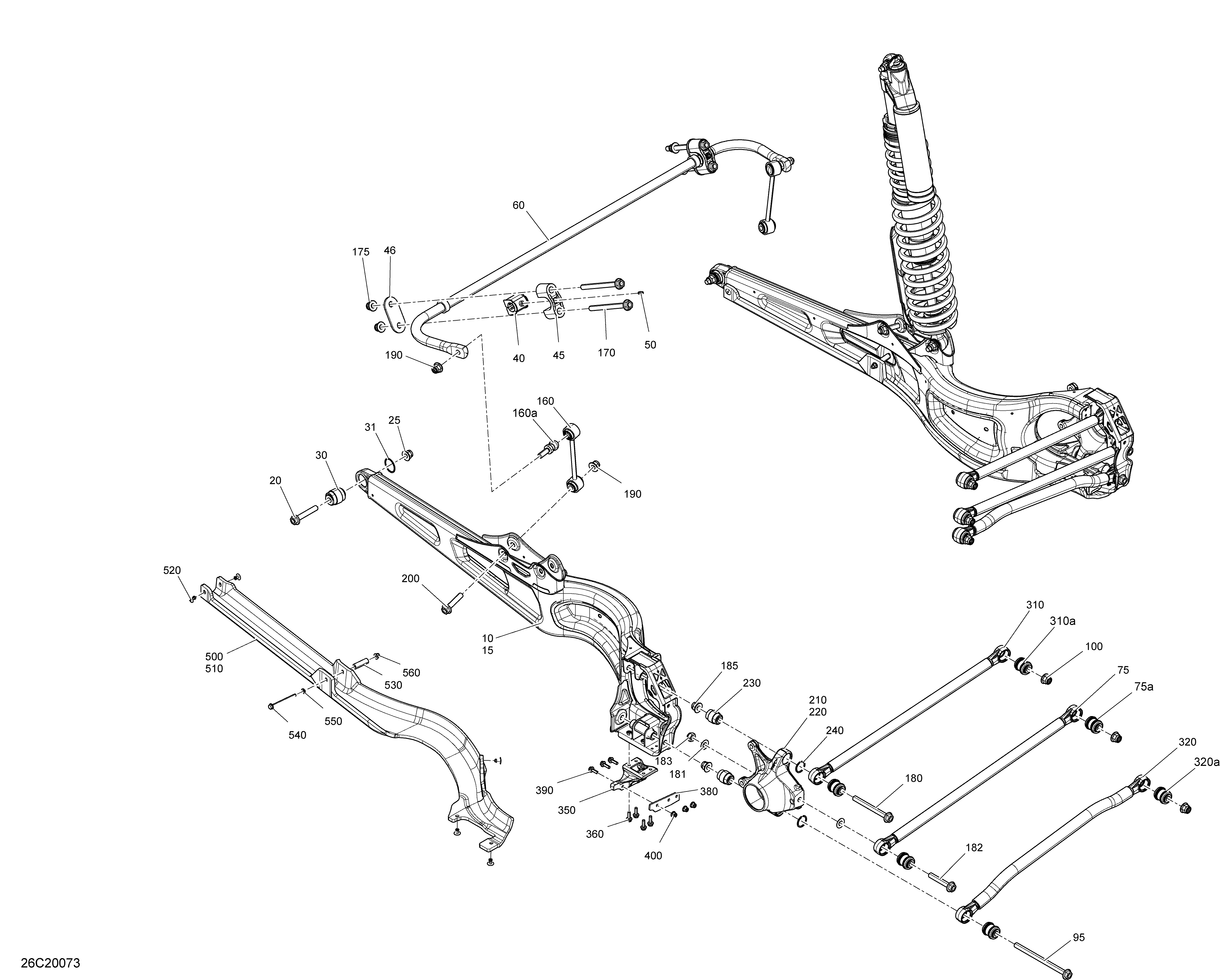

08- Rear Suspension для BRP 003 - Maverick Turbo - XRC - North America - 2020
-
№АртикулНазвание
-
10706003541 Orange Crush, LH Rear Suspension ArmOrange Crush, LH Rear Suspension Arm
-
15706003542 Orange Crush, RH Rear Suspension ArmOrange Crush, RH Rear Suspension Arm
-
20250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
25233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
30706001373 Radial JointRadial Joint
-
31293370093 Retaining RingRetaining Ring
-
40706002302 CushionCushion
-
45706002303 ClampClamp
-
46706002357 Support PlateSupport Plate
-
50408200700 Grease FittingGrease Fitting
-
60706002100 Stabilizer Bar Ass'yStabilizer Bar Ass'y
-
75706002099 Central Control Link. Includes 75 to 75aCentral Control Link. Includes 75 to 75a
-
75a706002135 Radial JointRadial Joint
-
95250000862 Screw Flange M12 X 175Screw Flange M12 X 175
-
100233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
160706003752 Rear Stabilizer Bar Link. Includes 160 to 160aRear Stabilizer Bar Link. Includes 160 to 160a
-
160a706002135 Radial JointRadial Joint
-
170250000861 Screw Flange M12 X 145Screw Flange M12 X 145
-
175233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
180250000860 Screw Flange M12 X 115Screw Flange M12 X 115
-
181250200086 Flat WasherFlat Washer
-
182250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
183232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
185233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
190233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
200250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
210706001960 LH KhuckleLH Khuckle
-
220706001961 RH KhuckleRH Khuckle
-
230706002317 Radial JointRadial Joint
-
240293370118 Retaining RingRetaining Ring
-
310706002136 Upper Control Link. Includes 310 to 310aUpper Control Link. Includes 310 to 310a
-
310a706002135 Radial JointRadial Joint
-
320706003140 Control Link. Includes 320 to 320aControl Link. Includes 320 to 320a
-
320a706002135 Radial JointRadial Joint
-
350706002905 DeflectorDeflector
-
360207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
380706002851 Wear PlateWear Plate
-
390207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
400233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
500706003211 72'' LH Rear Arm Protector72'' LH Rear Arm Protector
-
510706003212 72'' RH Rear Arm Protector72'' RH Rear Arm Protector
-
520293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
530705011168 SpacerSpacer
-
540250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
550234061410 Flat Washer 6 mmFlat Washer 6 mm
-
560233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
