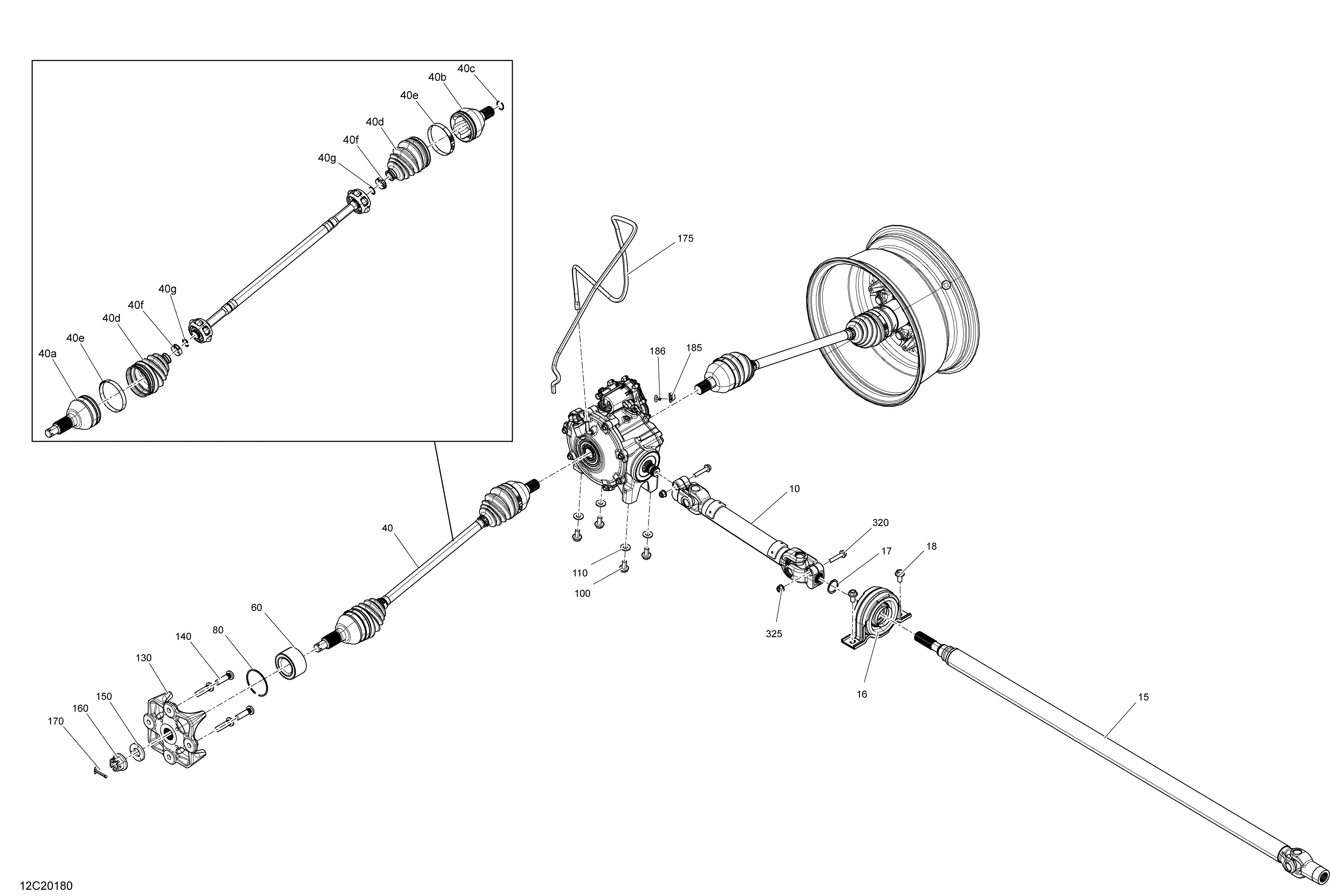

07- Front Drive - Common Parts для BRP 003 - Maverick Turbo - XRC - North America - 2020
-
№АртикулНазвание
-
16705401938 BearingBearing
-
17293370098 Snap RingSnap Ring
-
18207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
40705401634 Half Shaft. Includes 40 to 40gHalf Shaft. Includes 40 to 40g
-
40a715900574 CV JointCV Joint
-
40b715900575 Plunging JointPlunging Joint
-
40c715900569 CirclipCirclip
-
40d705401354 Boot Kit, Wheel Side. Includes 40d to 40fBoot Kit, Wheel Side. Includes 40d to 40f
-
40e715900260 Oetiker Clamp, LargeOetiker Clamp, Large
-
40f715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40g715900580 O-ringO-ring
-
60293350129 Ball BearingBall Bearing
-
80293370102 CirclipCirclip
-
100207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
110234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
130705502122 Wheel HubWheel Hub
-
140250300625 Wheel Stud M12X1.5Wheel Stud M12X1.5
-
150250200170 Conical Spring Washer M20Conical Spring Washer M20
-
160250100193 Castle Nut M20Castle Nut M20
-
170250400084 Cotter PinCotter Pin
-
175293830193 Polyurethane HosePolyurethane Hose
-
185518321570 Open ClampOpen Clamp
-
186293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
320250001050 Hex. Flanged Screw M8 X 42Hex. Flanged Screw M8 X 42
-
325233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
