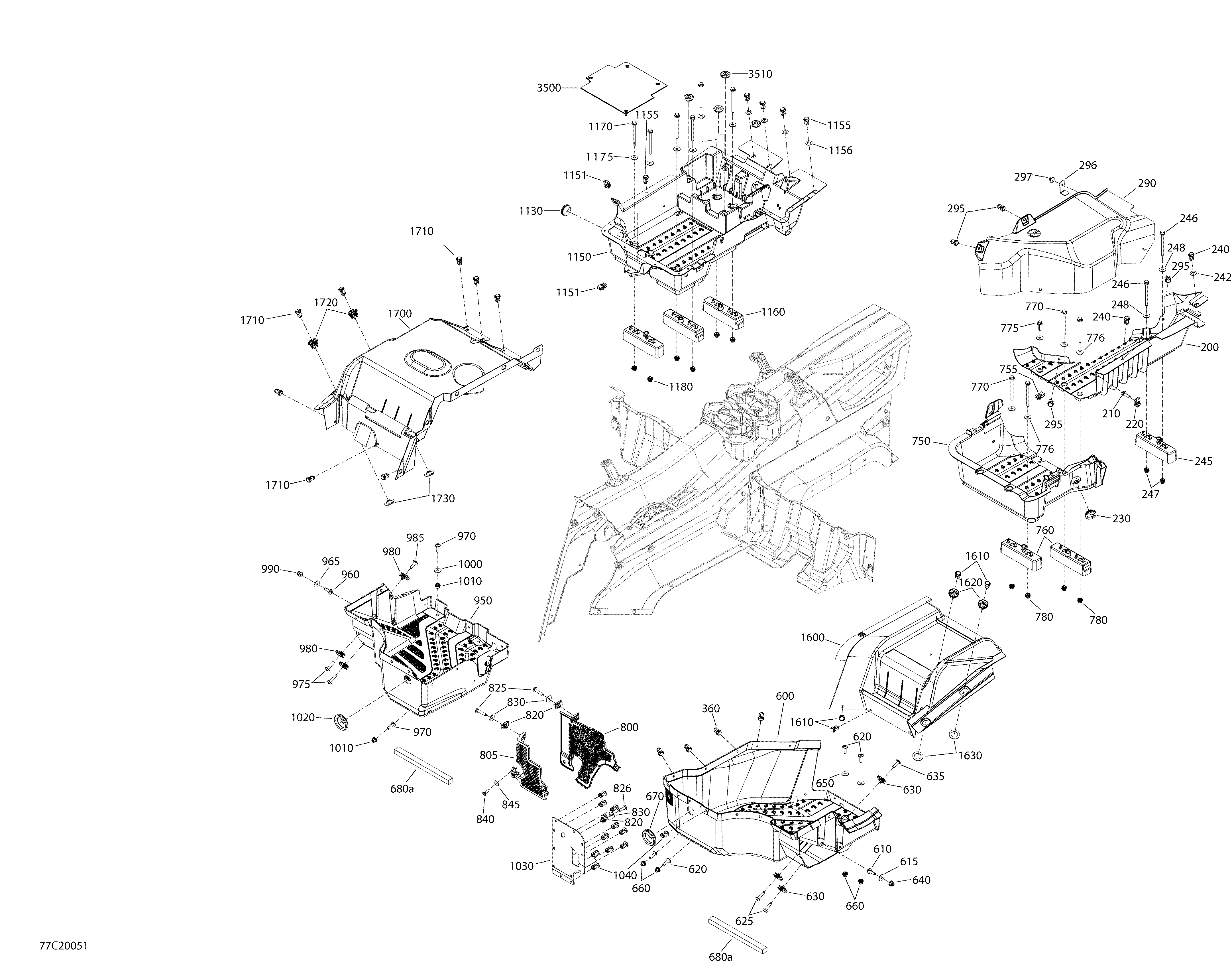

09- Cab Interior - Lower part для BRP 003 - Commander MAX 800R EFI - North America - 2020
-
№АртикулНазвание
-
200707900387 Under coverUnder cover
-
210207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
220250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
230293250242 Rubber CoverRubber Cover
-
240293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
242506151252 WasherWasher
-
245707900099 Support PlateSupport Plate
-
246207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
247250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
248234062670 Flat Washer, StainlessFlat Washer, Stainless
-
290707900388 Rear Floor capRear Floor cap
-
295293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
296705205445 Insert SupportInsert Support
-
297293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
360293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
600707900022 LH Lower FloorLH Lower Floor
-
610250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
615234062670 Flat Washer, StainlessFlat Washer, Stainless
-
620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
625250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
630250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
635250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
640233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
650234062670 Flat Washer, StainlessFlat Washer, Stainless
-
660250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
670293250242 Rubber CoverRubber Cover
-
680a293250362 Seal-TraySeal-Tray
-
750707900331 Rear FloorRear Floor
-
755250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
760707900099 Support PlateSupport Plate
-
770207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
775207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
776234062670 Flat Washer, StainlessFlat Washer, Stainless
-
780250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
800707900178 GrillGrill
-
805707900180 GrillGrill
-
820250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
825250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
826250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
830234062670 Flat Washer, StainlessFlat Washer, Stainless
-
840250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
845250200025 Washer M5Washer M5
-
950707900023 RH Lower FloorRH Lower Floor
-
960250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
965234062670 Flat Washer, StainlessFlat Washer, Stainless
-
970250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
975250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
980250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
985250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
990233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1000234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1010250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1020293250242 Rubber CoverRubber Cover
-
1030707900192 DeflectorDeflector
-
1040293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1130293250242 Rubber CoverRubber Cover
-
1150707900670 RH Lower Rear FloorRH Lower Rear Floor
-
1151250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1155293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1156506151252 WasherWasher
-
1160707900099 Support PlateSupport Plate
-
1170207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
1175234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1180250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1600707900130 Under Seat CoverUnder Seat Cover
-
1610293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1620707900133 InsertInsert
-
1630503189273 WasherWasher
-
1700707900006 RH Under Seat PlateRH Under Seat Plate
-
1710293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1720707900133 InsertInsert
-
1730503189273 WasherWasher
-
3500707900163 Battery CoverBattery Cover
-
3510705003264 GrommetGrommet
-
3600250000742 Torx Screw M5 X 14. Not ShownTorx Screw M5 X 14. Not Shown
-
3610250200040 Flat Washer. Not ShownFlat Washer. Not Shown
-
3615207562054 Flanged Hex. Screw S.GRIP M6 X 20. Not ShownFlanged Hex. Screw S.GRIP M6 X 20. Not Shown
-
3620207682044 Hex. Flanged Screw M8 X 20. Not ShownHex. Flanged Screw M8 X 20. Not Shown
-
3625233281414 Hex. Flanged Elastic Nut M8. Not ShownHex. Flanged Elastic Nut M8. Not Shown
