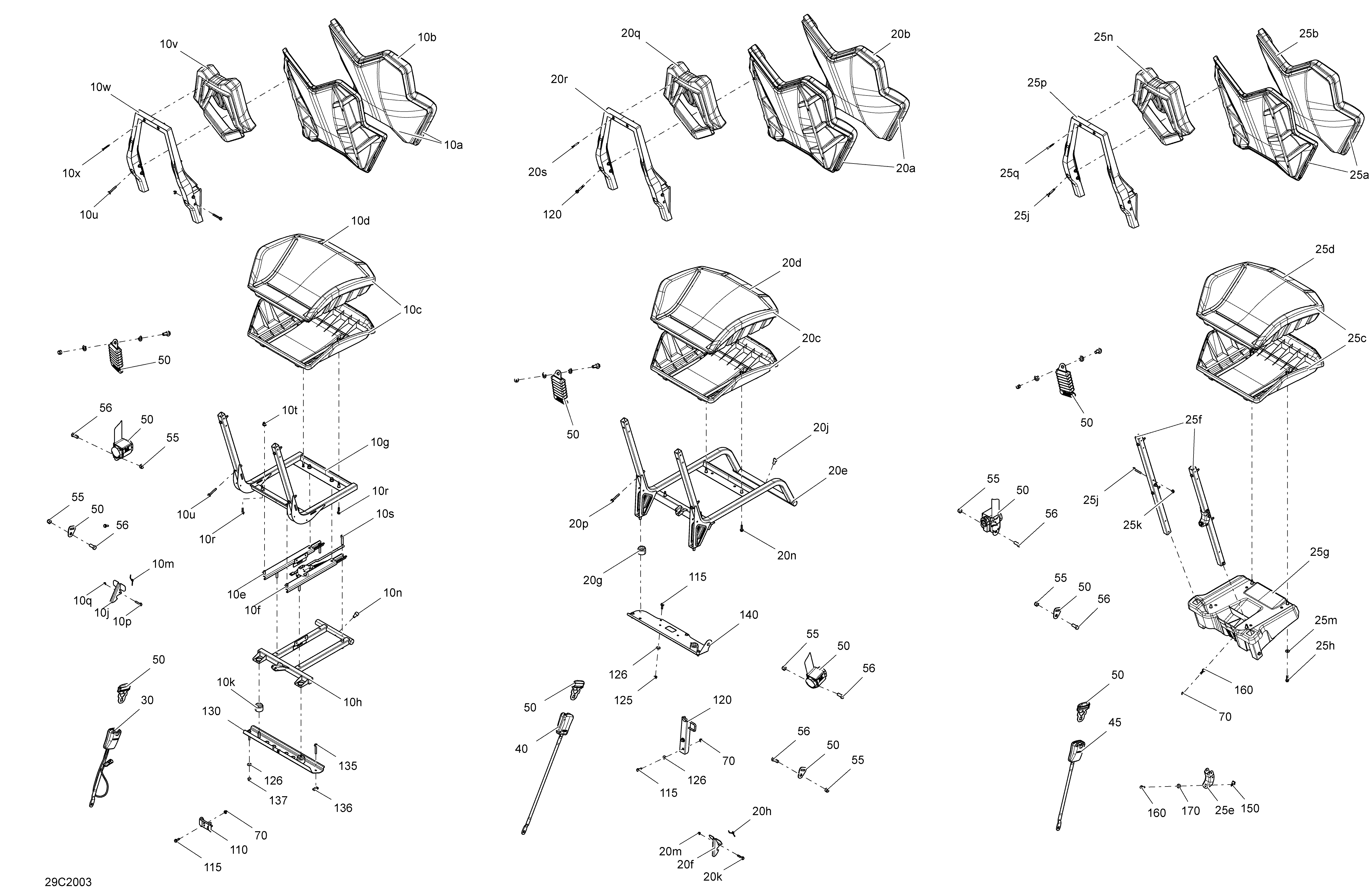

09- Seat для BRP 003 - Commander MAX 800R EFI - North America - 2020
-
№АртикулНазвание
-
10a703500945 Backrest Ass'y. Includes 10a to 10bBackrest Ass'y. Includes 10a to 10b
-
10b708000675 Backrest CoverBackrest Cover
-
10c703500943 Cushion Ass'y. Includes 10c to 10dCushion Ass'y. Includes 10c to 10d
-
10d708001103 Seat CoverSeat Cover
-
10e708000848 LH RailLH Rail
-
10f708001739 RH RailRH Rail
-
10g708001356 Operator Seat FrameOperator Seat Frame
-
10h708001174 Seat MemberSeat Member
-
10j708001355 Seat LatchSeat Latch
-
10k708001671 Rubber BumperRubber Bumper
-
10m708000921 SpringSpring
-
10n205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
10p207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
10q232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
10r207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10s205084044 Socket Head Screw M8 X 1.25 X 40Socket Head Screw M8 X 1.25 X 40
-
10t233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10u250000672 Hex. Flange Screw M6. Includes 10u to 10xHex. Flange Screw M6. Includes 10u to 10x
-
10v708001074 Head RestHead Rest
-
10w708001245 Seat SupportSeat Support
-
10x250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
20a703500945 Backrest Ass'y. Includes 20a to 20bBackrest Ass'y. Includes 20a to 20b
-
20b708000675 Backrest CoverBackrest Cover
-
20c703500943 Cushion Ass'y. Includes 20c to 20dCushion Ass'y. Includes 20c to 20d
-
20d708001103 Seat CoverSeat Cover
-
20e708001357 Passenger Seat FramePassenger Seat Frame
-
20f708001355 Seat LatchSeat Latch
-
20g708001671 Rubber BumperRubber Bumper
-
20h708000921 SpringSpring
-
20j205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
20k207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
20m232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
20n207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
20p250000672 Hex. Flange Screw M6. Includes 20p to 20sHex. Flange Screw M6. Includes 20p to 20s
-
20q708001074 Head RestHead Rest
-
20r708001245 Seat SupportSeat Support
-
20s250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
25a703500945 Backrest Ass'y. Includes 25a to 25bBackrest Ass'y. Includes 25a to 25b
-
25b708000675 Backrest CoverBackrest Cover
-
25c703500943 Cushion Ass'y. Includes 25c to 25dCushion Ass'y. Includes 25c to 25d
-
25d708001103 Seat CoverSeat Cover
-
25e708001474 Rear AnchorRear Anchor
-
25f708001476 Side TubeSide Tube
-
25g708001198 Seat SupportSeat Support
-
25h207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
25j250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
25k233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
25m234062670 Flat Washer, Stainless. Includes 25m to 25qFlat Washer, Stainless. Includes 25m to 25q
-
25n708001074 Head RestHead Rest
-
25p708001245 Seat SupportSeat Support
-
25q250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
30708002061 Driver Buckle SideDriver Buckle Side
-
40708002064 Passenger Buckle SidePassenger Buckle Side
-
45708002063 Rear Passenger Buckle SideRear Passenger Buckle Side
-
50708002644 Safety BeltSafety Belt
-
55250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
56250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
70250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
110708001212 AnchorAnchor
-
115207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
120708001213 AnchorAnchor
-
125233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
126234062670 Flat Washer, StainlessFlat Washer, Stainless
-
130708001214 Seat SupportSeat Support
-
135250000213 Hex. Flanged Screw M6 X 1.0 X 45Hex. Flanged Screw M6 X 1.0 X 45
-
136250100171 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
137233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
140708001804 SupportSupport
-
150250100171 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
160207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
170234281474 Conical Spring Washer M8Conical Spring Washer M8
-
180250100135 Nylon Insert Hex. Lock Nut 7/16-20. Not shownNylon Insert Hex. Lock Nut 7/16-20. Not shown
-
180v250000521 Hex. Cap Screw 7/16'' X 1''. Not shownHex. Cap Screw 7/16'' X 1''. Not shown
-
180w708000890 Safety Belt Screw. Not shownSafety Belt Screw. Not shown
-
180x708000891 Position Washer. Not shownPosition Washer. Not shown
-
180y233161464 Hex. Elastic Flange Nut M6. Not shownHex. Elastic Flange Nut M6. Not shown
-
180z250000672 Hex. Flange Screw M6. Not shownHex. Flange Screw M6. Not shown
