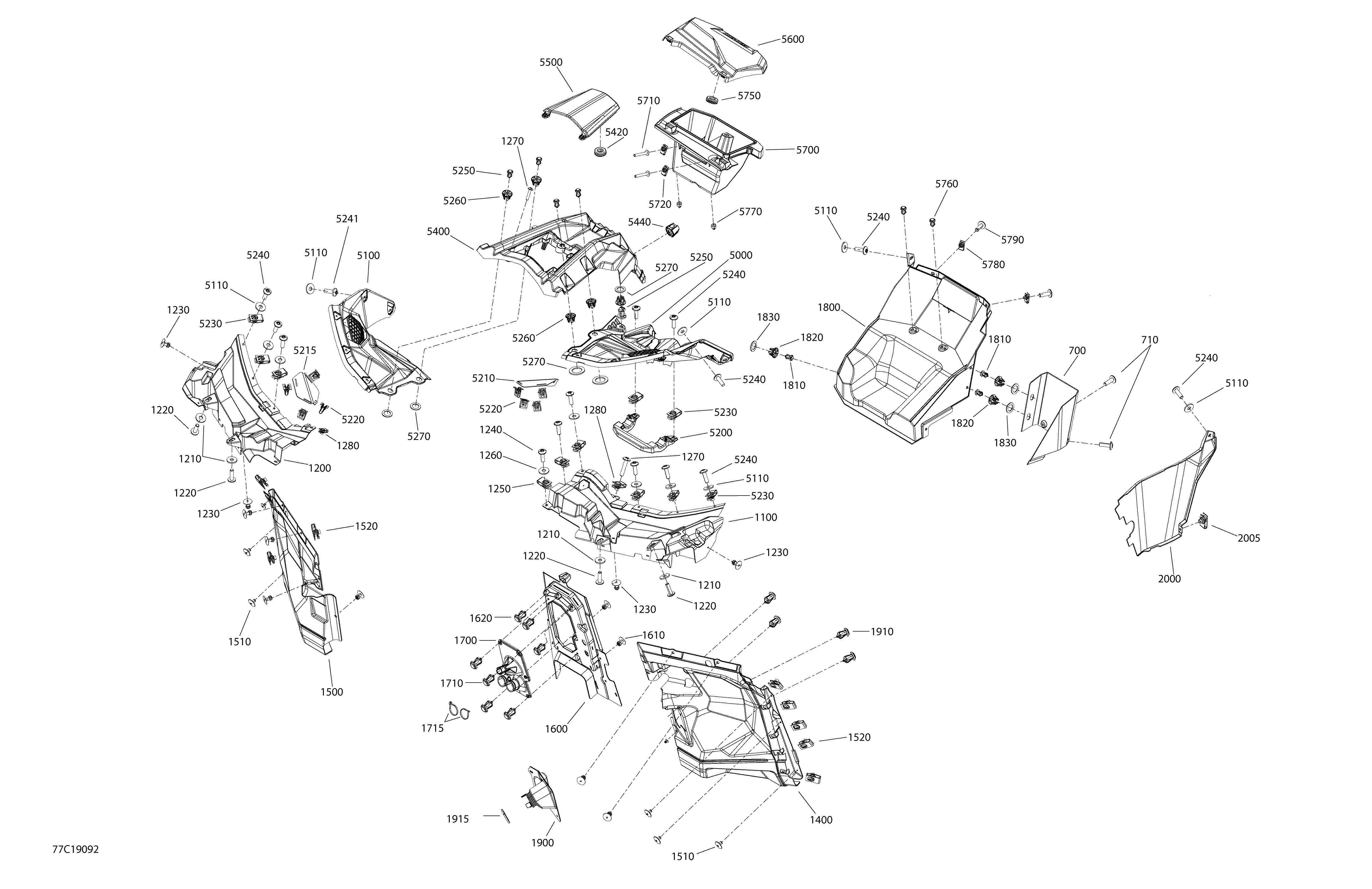

09- Cab Interior Maverick MAX - International - Front Upper Section для BRP 006 - Maverick MAX Turbo R - International - 2019
-
№АртикулНазвание
-
700707900473 Cover Central ConsoleCover Central Console
-
710250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1100707900337 LH Front Upper DeflectorLH Front Upper Deflector
-
1200707900338 RH Front Upper DeflectorRH Front Upper Deflector
-
1210234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1220250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1230293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1240250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1250250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1260234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1270250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
1280250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1400707900341 LH Front BulkheadLH Front Bulkhead
-
1500707900342 RH Front BulkheadRH Front Bulkhead
-
1510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1520250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1600707900407 Front Bulkhead PanelFront Bulkhead Panel
-
1610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1620293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1700707900701 GrommetGrommet
-
1710293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1715414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1800707900410 RH Lower Dash PanelRH Lower Dash Panel
-
1810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1820707900133 InsertInsert
-
1830503189273 WasherWasher
-
1900707900427 Cover Steering ColumnCover Steering Column
-
1910293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1915293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2000707900477 Side Panel CoverSide Panel Cover
-
2005250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5000715005326 LH Dashboard KitLH Dashboard Kit
-
5100707900698 Dashboard RHDashboard RH
-
5110234062670 Flat Washer, StainlessFlat Washer, Stainless
-
5200707900479 Dash SupportDash Support
-
5210707900465 LH Speaker CoverLH Speaker Cover
-
5215707900590 RH Speaker CoverRH Speaker Cover
-
5220517302785 ClipClip
-
5230250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5240250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5241250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
5250293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5260707900133 InsertInsert
-
5270503189273 WasherWasher
-
5400707900700 Dashboard CentralDashboard Central
-
5420517303756 GrommetGrommet
-
5440707900598 Key ProtectorKey Protector
-
5500707900400 Dash CoverDash Cover
-
5600715004067 Cover Glove Box KitCover Glove Box Kit
-
5700707900350 Glove BoxGlove Box
-
5710250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5720250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5750517303756 GrommetGrommet
-
5760293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5770293830005 Rubber BumperRubber Bumper
-
5780250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5790250000722 Torx Screw M6 X 20Torx Screw M6 X 20
