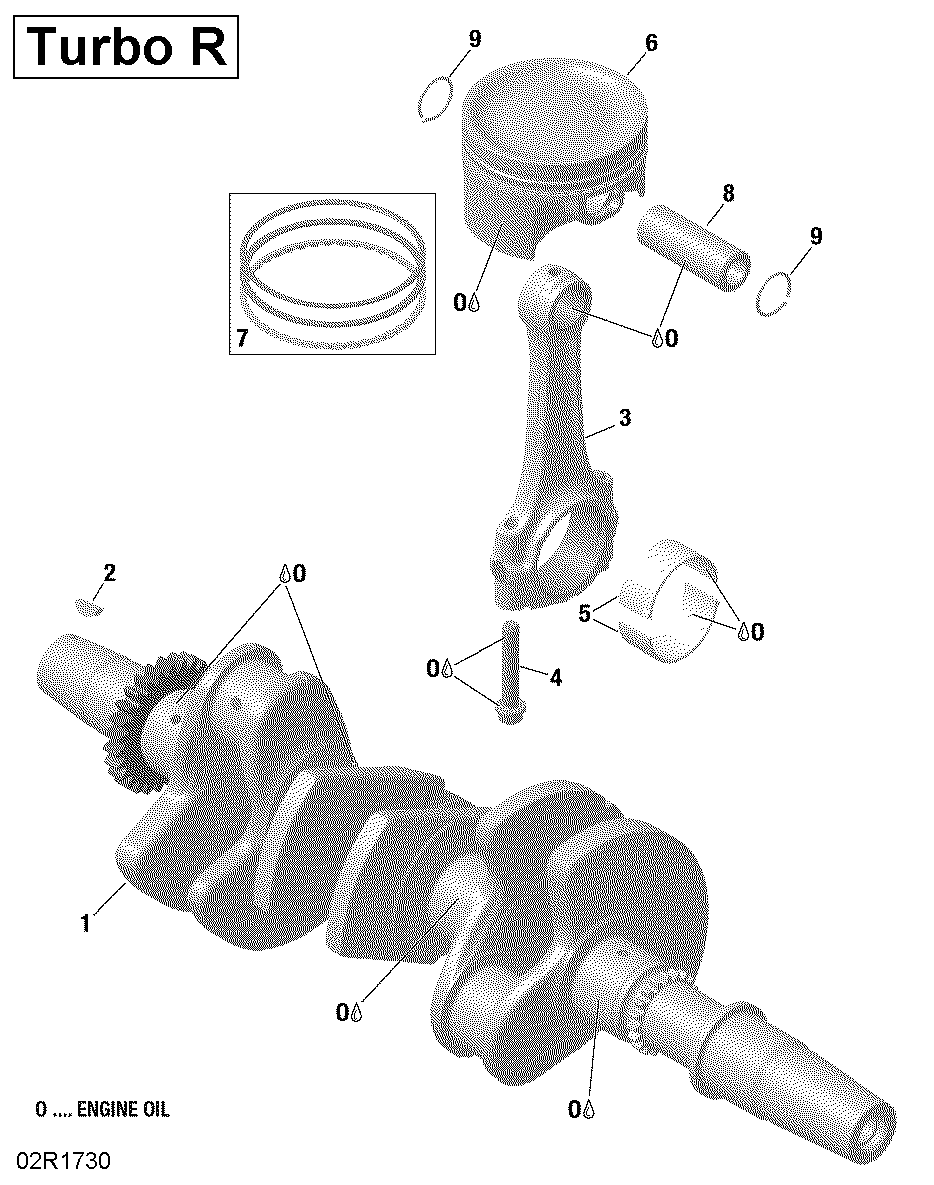

01- Crankshaft And Pistons для BRP 006 - Maverick MAX Turbo R - International - 2019
-
№АртикулНазвание
-
1>2420819935 CrankshaftCrankshaft
-
2420246571 Woodruff KeyWoodruff Key
-
3>4420917746 Connecting RodConnecting Rod
-
4420641790 Connecting Rod Screw M7 X 1Connecting Rod Screw M7 X 1
-
5420933195 Plain BearingPlain Bearing
-
6>7420893970 Piston Ass'y 73.958MMPiston Ass'y 73.958MM
-
7420892824 Piston Ring SetPiston Ring Set
-
8420916550 Piston PinPiston Pin
-
9420845540 Piston CirclipPiston Circlip
