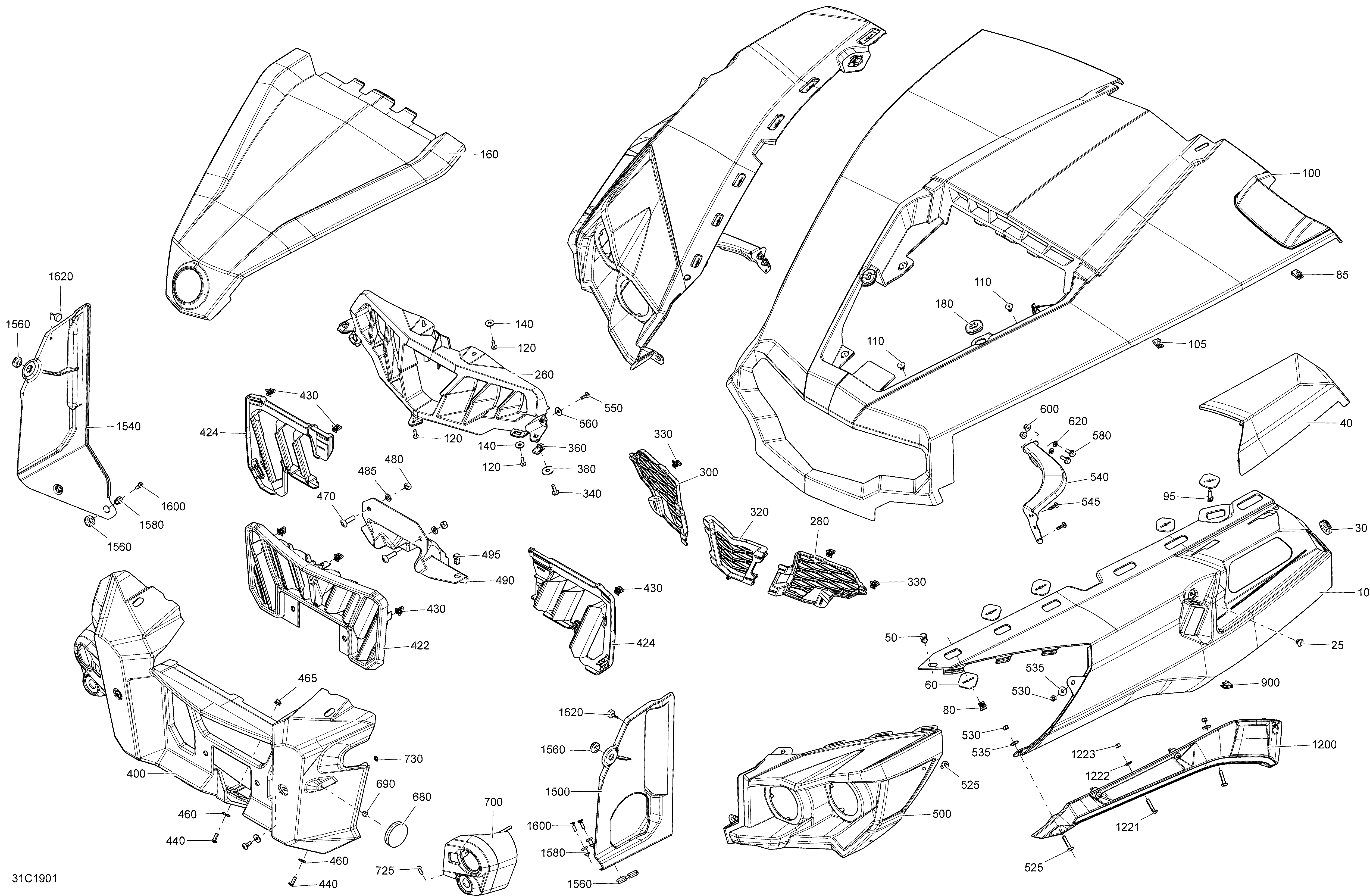

09- Body And Accessories - Front Section - Boreal Green для BRP 002 - Commander 1000R EFI - International - 2019
-
№АртикулНазвание
-
10705013171 Boreal Green, LH Front FenderBoreal Green, LH Front Fender
-
20705013172 RH Front Fender B-423RH Front Fender B-423
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30517303756 GrommetGrommet
-
40705013170 Boreal Green, Inlet Cover CVTBoreal Green, Inlet Cover CVT
-
50293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
60705003841 Support PlateSupport Plate
-
80517302785 ClipClip
-
85250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
95207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100705013169 Boreal Green, Hood FixedBoreal Green, Hood Fixed
-
105250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
140234062670 Flat Washer, StainlessFlat Washer, Stainless
-
160705013168 Boreal Green, HoodBoreal Green, Hood
-
180705005156 Oval WasherOval Washer
-
260705003629 Upper Facia, BlackUpper Facia, Black
-
280705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
300705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
320705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
330517302785 ClipClip
-
340250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
360250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
380234082410 Flat Washer 8 mmFlat Washer 8 mm
-
400a705008689 Black Front FaciaBlack Front Facia
-
422705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
424705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
424705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
430517302785 ClipClip
-
440250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
460234062670 Flat Washer, StainlessFlat Washer, Stainless
-
465250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
500705002885 LH Front FaciaLH Front Facia
-
500705002886 RH Front FaciaRH Front Facia
-
525250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
530232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
540705002891 Facia Front SupportFacia Front Support
-
545250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
580207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
600233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
620234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680705011222 Amber ReflectorAmber Reflector
-
900250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1200705008666 Black, LH Upper Front MudguardBlack, LH Upper Front Mudguard
-
1200705008667 Black, RH Upper Front MudguardBlack, RH Upper Front Mudguard
-
1221250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
1222234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1223232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
1500705005113 LH DeflectorLH Deflector
-
1540705002894 RH DeflectorRH Deflector
-
1560293720053 GrommetGrommet
-
1580517303439 KnobKnob
-
1600250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1620708000759 Rubber StopperRubber Stopper
