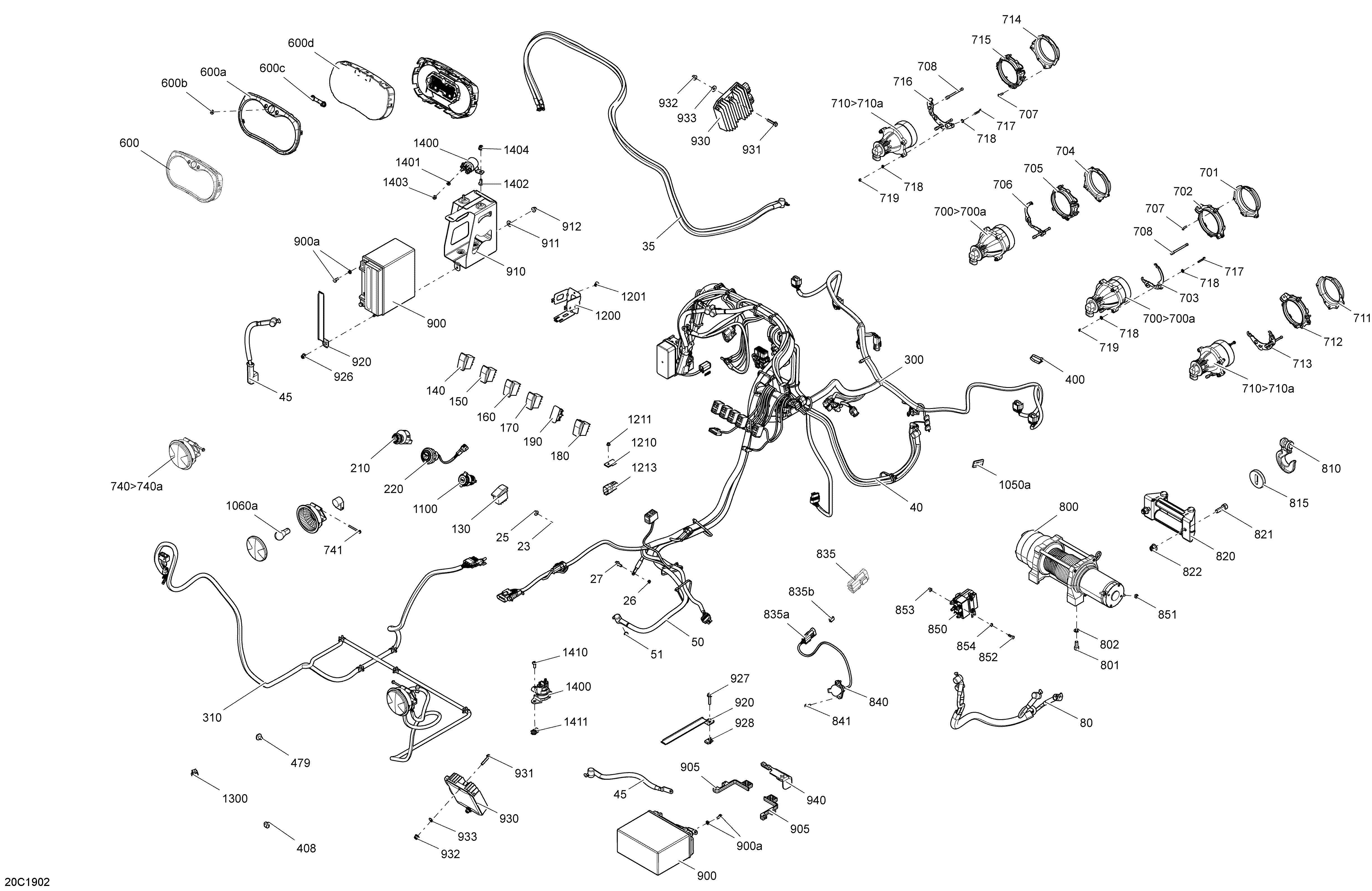

10- Electrical - XT для BRP 002 - Commander 1000R EFI - International - 2019

  • №
    Артикул
    Название
  • 22
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 23
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 25
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 26
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 27
    207561644 Hex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
    Hex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
  • 35
    710004575 Winch Cable (-/+). Package DPS
    Winch Cable (-/+). Package DPS
  • 40
    710005123 Winch Cable (-/+). Except Packages DPS & STD
    Winch Cable (-/+). Except Packages DPS & STD
  • 45
    710004384 Positive Cable. Packages DPS
    Positive Cable. Packages DPS
  • 50
    710004383 Positive Cable
    Positive Cable
  • 51
    232561414 Elastic Stop Nut M6 x 1.0
    Elastic Stop Nut M6 x 1.0
  • 80
    710004387 Electrical Winch Cable. Except Packages DPS & STD
    Electrical Winch Cable. Except Packages DPS & STD
  • 130
    710002053 Switch, Over ride
    Switch, Over ride
  • 140
    710001725 Hi/Low Switch
    Hi/Low Switch
  • 150
    710001737 Switch
    Switch
  • 160
    710003541 Switch PPS Sport
    Switch PPS Sport
  • 170
    710001781 Switch DPS. Except Package STD
    Switch DPS. Except Package STD
  • 180
    710002052 Switch. Except Packages STD & DPS
    Switch. Except Packages STD & DPS
  • 190
    710001999 Plug Carling
    Plug Carling
  • 210
    710003847 Ignition Switch
    Ignition Switch
  • 220
    710002594 Engine START Button
    Engine START Button
  • 300
    710006089 Harness Ass'y
    Harness Ass'y
  • 310
    710004681 Rear Harness
    Rear Harness
  • 408
    293730040 Mount Dart
    Mount Dart
  • 600
    710005553 Speedometer. Packages DPS & STD. Includes 600 to 600c
    Speedometer. Packages DPS & STD. Includes 600 to 600c
  • 600a
    710001183 Trim Ring Ass'y. Packages DPS & STD. Includes 600a to 600b
    Trim Ring Ass'y. Packages DPS & STD. Includes 600a to 600b
  • 600b
    704904615 BRP Logo, 13 mm. Packages DPS & STD
    BRP Logo, 13 mm. Packages DPS & STD
  • 600c
    715900265 Button. Packages DPS & STD
    Button. Packages DPS & STD
  • 600
    710005653 Speedometer. Except Packages DPS & STD. Includes 600 to 600c
    Speedometer. Except Packages DPS & STD. Includes 600 to 600c
  • 600a
    415129348 Gauge Ring. Except Packages DPS & STD
    Gauge Ring. Except Packages DPS & STD
  • 600c
    415129355 Speedometer Button. Except Packages DPS & STD
    Speedometer Button. Except Packages DPS & STD
  • 600d
    415129349 Lens. Except Packages DPS & STD
    Lens. Except Packages DPS & STD
  • 700
    710002524 Low Beam Ass'y. Includes 700 to 700a
    Low Beam Ass'y. Includes 700 to 700a
  • 700a
    415129249 Halogen Bulb
    Halogen Bulb
  • 701
    710001081 RH Low Front Housing
    RH Low Front Housing
  • 702
    710001082 RH Low Rear Housing
    RH Low Rear Housing
  • 703
    710001094 RH Low Light Support
    RH Low Light Support
  • 704
    710001083 LH Low Front Housing
    LH Low Front Housing
  • 705
    710001084 LH Low Rear Housing
    LH Low Rear Housing
  • 706
    710001037 LH Low Light Support
    LH Low Light Support
  • 707
    250000723 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 708
    710001147 Setting Screw
    Setting Screw
  • 710
    710002525 High Beam Ass'y. Includes 710 to 710a
    High Beam Ass'y. Includes 710 to 710a
  • 710a
    415129249 Halogen Bulb
    Halogen Bulb
  • 711
    710001085 RH High Front Housing
    RH High Front Housing
  • 712
    710001086 RH High Rear Housing
    RH High Rear Housing
  • 713
    710001115 RH High Light Support
    RH High Light Support
  • 714
    710001087 LH High Front Housing
    LH High Front Housing
  • 715
    710001088 LH High Rear Housing
    LH High Rear Housing
  • 716
    710001036 LH High Light Support
    LH High Light Support
  • 717
    207142544 Hex. Screw M4 X 25
    Hex. Screw M4 X 25
  • 718
    234051410 Flat Washer M5
    Flat Washer M5
  • 719
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 740
    710001645 Tail Light. Includes 740 to 740a
    Tail Light. Includes 740 to 740a
  • 740a
    520000758 Bulb
    Bulb
  • 741
    241154540 Hex. Screw K50 X 45
    Hex. Screw K50 X 45
  • 800
    710005732 Winch. Except Packages DPS & STD
    Winch. Except Packages DPS & STD
  • 801
    205082044 Socket Head Screw M8 X 20. Except Packages DPS & STD
    Socket Head Screw M8 X 20. Except Packages DPS & STD
  • 802
    234181401 Lock Washer 8 mm. Except Packages DPS & STD
    Lock Washer 8 mm. Except Packages DPS & STD
  • 810
    715003523 Hook and Strap kit. Except Packages DPS & STD
    Hook and Strap kit. Except Packages DPS & STD
  • 815
    710005142 Winch Cable Stopper. Except Packages DPS & STD
    Winch Cable Stopper. Except Packages DPS & STD
  • 820
    710004822 Winch Cable Guide. Except Packages DPS & STD
    Winch Cable Guide. Except Packages DPS & STD
  • 821
    205003044 Socket Screw M10 x 30. Except Packages DPS & STD
    Socket Screw M10 x 30. Except Packages DPS & STD
  • 822
    233201414 Hex. Flanged Elastic Nut M10. Except Packages DPS & STD
    Hex. Flanged Elastic Nut M10. Except Packages DPS & STD
  • 835
    710001059 Connector Ass'y. Except Packages DPS & STD. Includes 835 to 835b
    Connector Ass'y. Except Packages DPS & STD. Includes 835 to 835b
  • 835a
    278000281 Female Terminal Housing, 3 Circuits. Except Packages DPS & STD
    Female Terminal Housing, 3 Circuits. Except Packages DPS & STD
  • 835b
    710000992 Clip. Except Packages DPS & STD
    Clip. Except Packages DPS & STD
  • 840
    710005258 Winch Connector. Except Packages DPS & STD
    Winch Connector. Except Packages DPS & STD
  • 841
    250000720 Torx Screw K50 X 16. Except Packages DPS & STD
    Torx Screw K50 X 16. Except Packages DPS & STD
  • 850
    703500947 Solenoid. Except Packages DPS & STD
    Solenoid. Except Packages DPS & STD
  • 851
    232561434 Elastic Stop Nut M6. Except Packages DPS & STD
    Elastic Stop Nut M6. Except Packages DPS & STD
  • 852
    207151644 Hex. Screw M5 X 16. Except Packages DPS & STD
    Hex. Screw M5 X 16. Except Packages DPS & STD
  • 853
    233251494 Elastic Flanged Nut M5. Except Packages DPS & STD
    Elastic Flanged Nut M5. Except Packages DPS & STD
  • 854
    234051410 Flat Washer M5. Except Packages DPS & STD
    Flat Washer M5. Except Packages DPS & STD
  • 900
    410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900a
    Battery Ass'y, 18 Amperes. Includes 900 to 900a
  • 900a
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 910
    710003129 Battery Support
    Battery Support
  • 911
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 912
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 920
    710001916 Battery Holder
    Battery Holder
  • 926
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 930
    710005842 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 931
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 932
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 933
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 1100
    710001248 Outlet DC
    Outlet DC
  • 1200
    710003335 Fuse Holder
    Fuse Holder
  • 1201
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 1210
    270000141 Clip
    Clip
  • 1211
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1213
    710004904 Connector Plug
    Connector Plug
  • 1300
    414227300 Clip
    Clip
  • 1400
    710001364 Starter Relay
    Starter Relay
  • 1401
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 1402
    250000717 Torx Head Screw M6 X 1.0 X 16
    Torx Head Screw M6 X 1.0 X 16
  • 1403
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 1404
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
