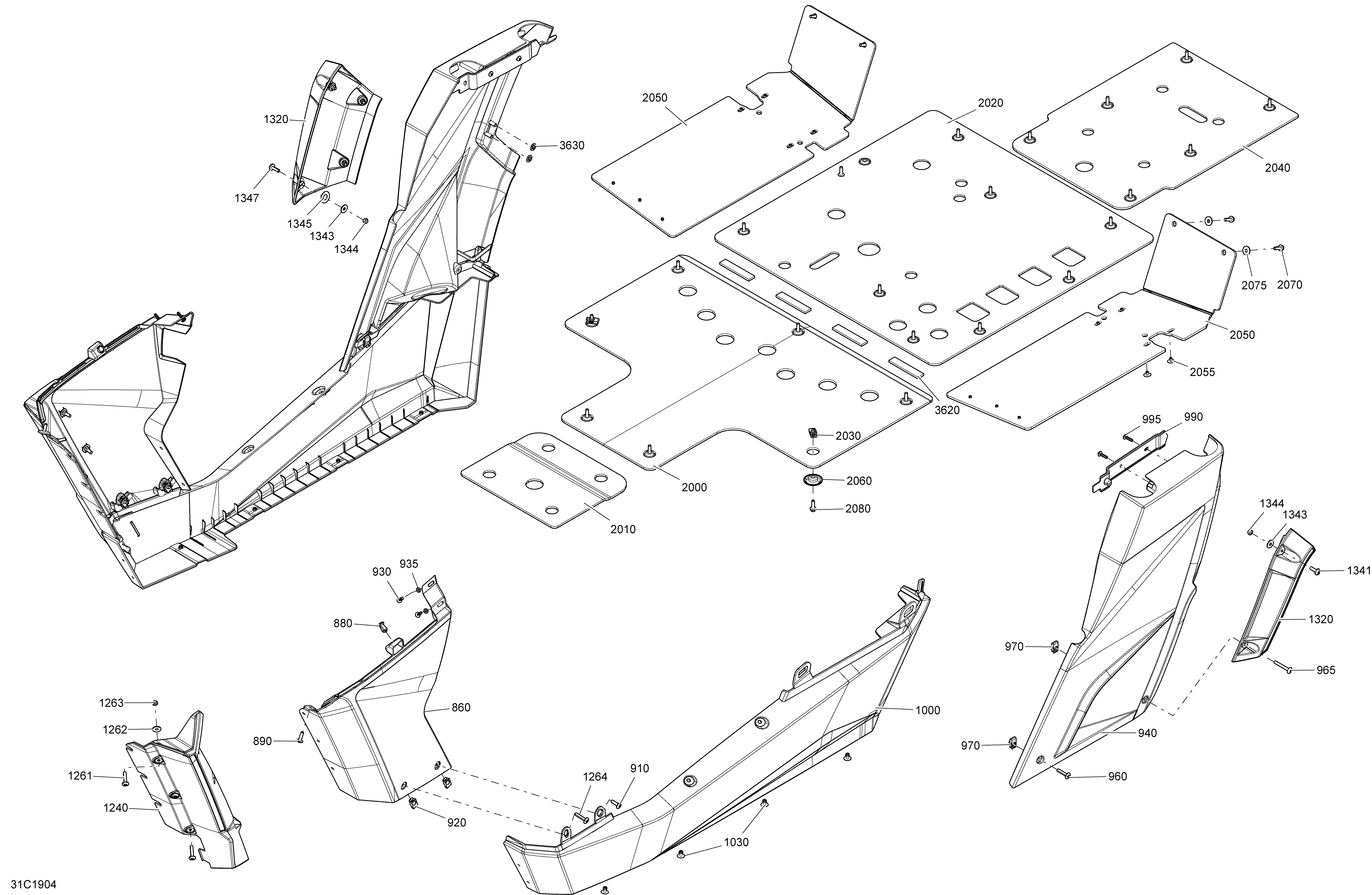

09- Body And Accessories - Central Panel - Timeless Black для BRP 002 - Commander 1000R EFI - International - 2019
-
№АртикулНазвание
-
860705011644 Timeless Black, LH Front PanelTimeless Black, LH Front Panel
-
860705011645 Timeless Black, RH Front PanelTimeless Black, RH Front Panel
-
880293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
890250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
900250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
910250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
920250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
930250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
935234051410 Flat Washer M5Flat Washer M5
-
940705011728 Timeless Black, LH Rear PanelTimeless Black, LH Rear Panel
-
940705011729 Timeless Black, RH Rear PanelTimeless Black, RH Rear Panel
-
960250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
965250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
970250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
990705007916 Support Skid PlateSupport Skid Plate
-
995250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
1000705006993 LH Middle Side PannelLH Middle Side Pannel
-
1000705006994 RH Middle Side PannelRH Middle Side Pannel
-
1030293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200705008666 Black, LH Upper Front MudguardBlack, LH Upper Front Mudguard
-
1220705008667 Black, RH Upper Front MudguardBlack, RH Upper Front Mudguard
-
1221250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
1222234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1223232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
1240705008668 Black, LH Lower MudguardBlack, LH Lower Mudguard
-
1240705008669 Black, RH Lower MudguardBlack, RH Lower Mudguard
-
1261250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
1262234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1263232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
1264250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
1320705008670 Black, LH Rear Lower MudguardBlack, LH Rear Lower Mudguard
-
1320705008672 RH Rear Lower Black MudguardRH Rear Lower Black Mudguard
-
1341250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1343234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1344232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
1345250200086 Flat WasherFlat Washer
-
1347250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
2000705007055 Middle Protector PlateMiddle Protector Plate
-
2020705007056 Rear Protector PlateRear Protector Plate
-
2040705007227 Rear Protector PlateRear Protector Plate
-
2050705007038 RH Lateral Skid PlateRH Lateral Skid Plate
-
2055293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2060705007171 CupCup
-
2070210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2075250200097 Flat WasherFlat Washer
-
2080210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3620291001932 PadPad
-
3700250100031 Push Nut. Not ShownPush Nut. Not Shown
