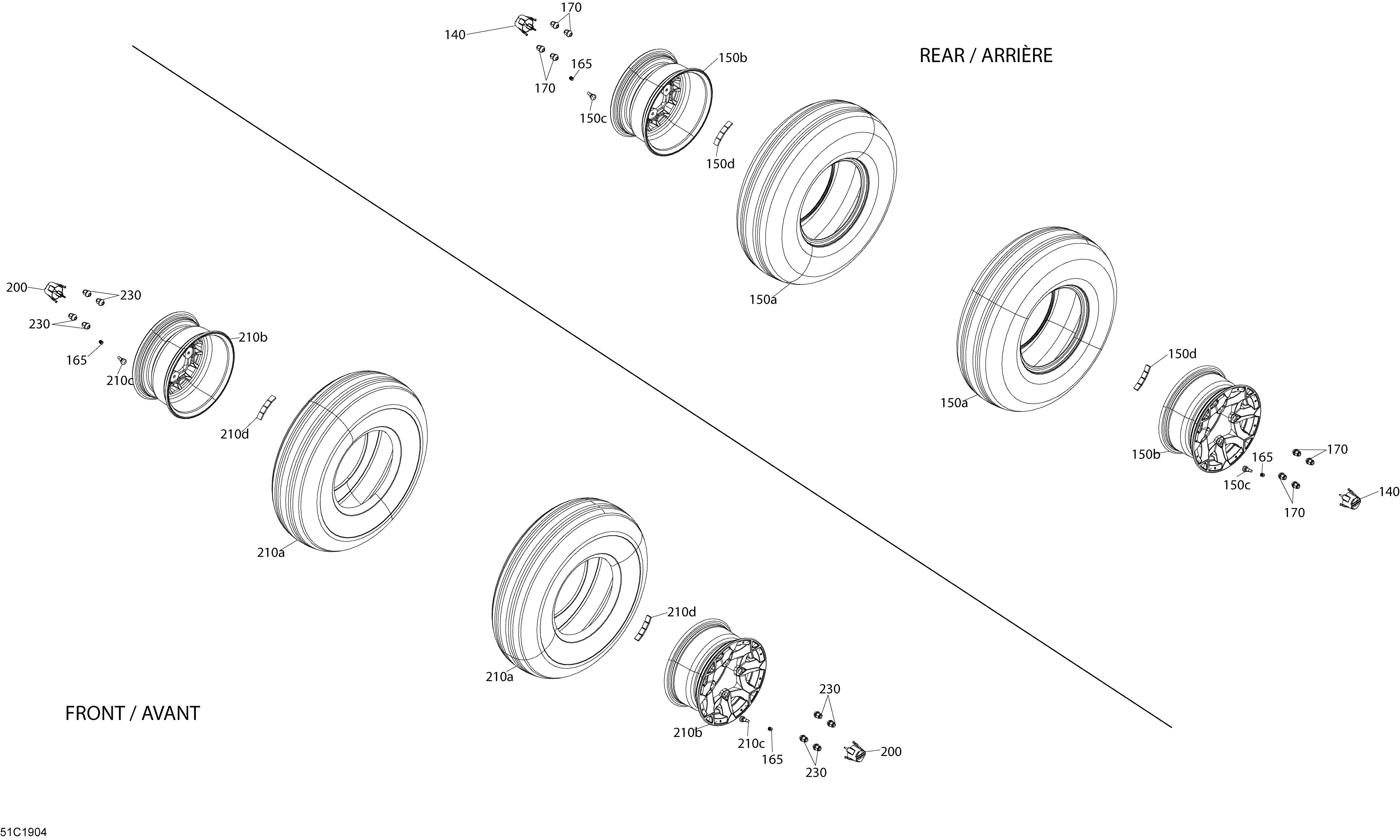

07- Wheels And Tires - Package XMR для BRP 004 - Maverick Sport 1000R - XMR - North America - 2019
-
№АртикулНазвание
-
165293000110 Valve CapValve Cap
-
200705401541 Wheel CapWheel Cap
-
210a705402096 Front Tire Carlstar 30X9X14Front Tire Carlstar 30X9X14
-
210b705402342 RimRim
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
140705401541 Wheel CapWheel Cap
-
150a705502621 Rear Tire Carlstar 30X11x14Rear Tire Carlstar 30X11x14
-
150b705502781 Rim PaintedRim Painted
-
150c705400193 Rim Valve With CapRim Valve With Cap
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
