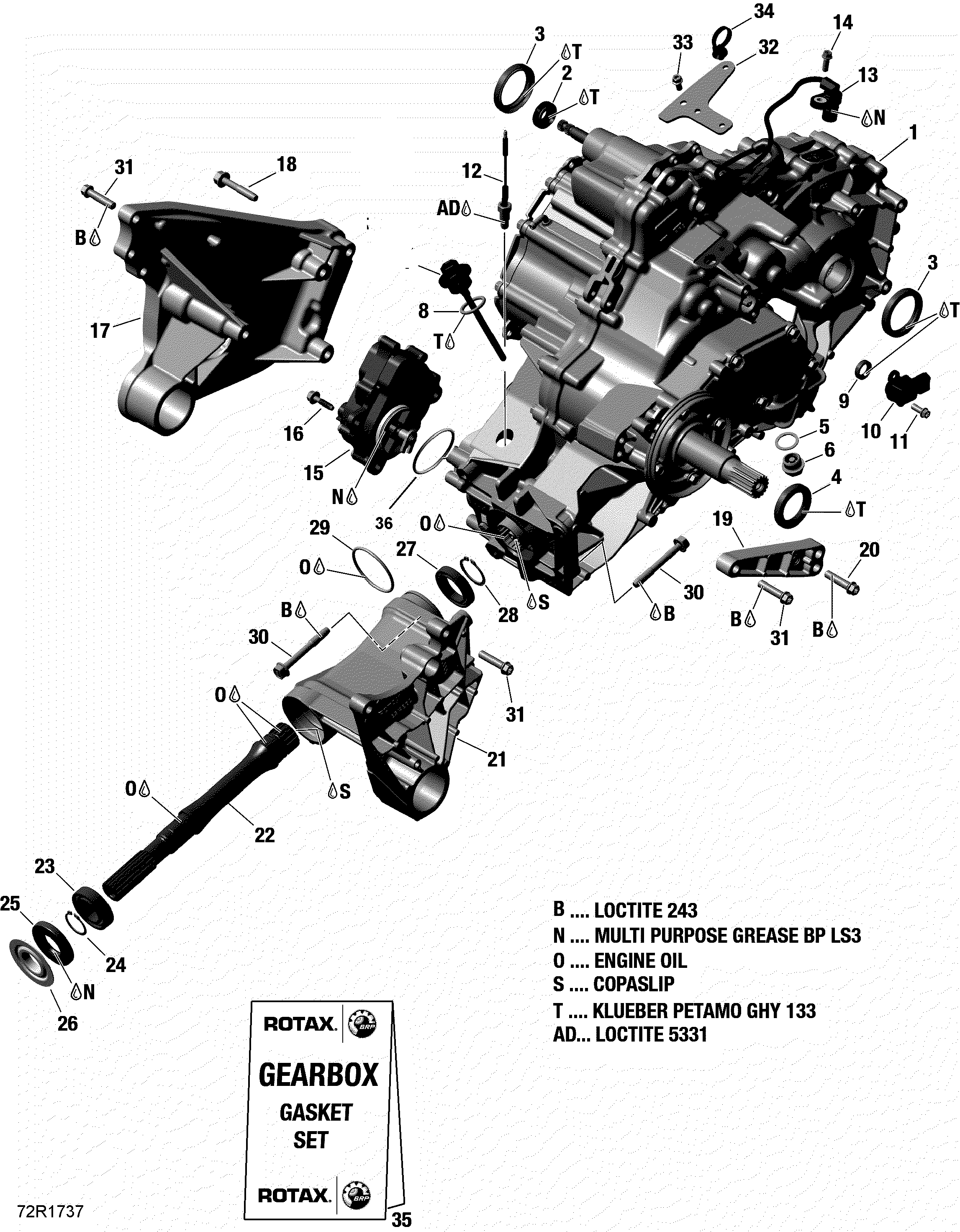

05- Gear Box And Components 420686754 для BRP 004 - Maverick Sport 1000R - XMR - North America - 2019
-
№АртикулНазвание
-
1>14420686754 Gear BoxGear Box
-
2420250452 Oil SealOil Seal
-
3420230137 Oil SealOil Seal
-
4420950089 Oil SealOil Seal
-
5420552280 O-RingO-Ring
-
6420840277 Drain Plug M18 X 1.5Drain Plug M18 X 1.5
-
7420256806 Oil DipstickOil Dipstick
-
8420631640 O-RingO-Ring
-
9420931802 Oil SealOil Seal
-
10420666850 Angle Rotation SensorAngle Rotation Sensor
-
11420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
12420640192 Position SwitchPosition Switch
-
13420265621 Speed SensorSpeed Sensor
-
14420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
15>15c715900613 Actuator Ass'y 4 pinsActuator Ass'y 4 pins
-
15a293300117 O-RingO-Ring
-
15b415129175 Shifting ForkShifting Fork
-
15c293370042 CirclipCirclip
-
16420441951 Collar Screw M6 x 25Collar Screw M6 x 25
-
17420212636 Engine Bracket MAG SideEngine Bracket MAG Side
-
18420441931 Collar Screw M8 x 45Collar Screw M8 x 45
-
19420212640 Gearbox BracketGearbox Bracket
-
20420440861 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
21420212631 Engine Bracket PTO SideEngine Bracket PTO Side
-
22420637600 Drive ShaftDrive Shaft
-
23420232341 Ball BearingBall Bearing
-
24420945810 CirclipCirclip
-
25420831178 Oil SealOil Seal
-
26420626990 CoverCover
-
27420632275 Ball BearingBall Bearing
-
28420945610 Retaining RingRetaining Ring
-
29420450391 O-RingO-Ring
-
30420440403 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
31420440861 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
32420651042 Support PlateSupport Plate
-
33420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
34420951345 Tie RapTie Rap
-
35TBD To be determinateTo be determinate
