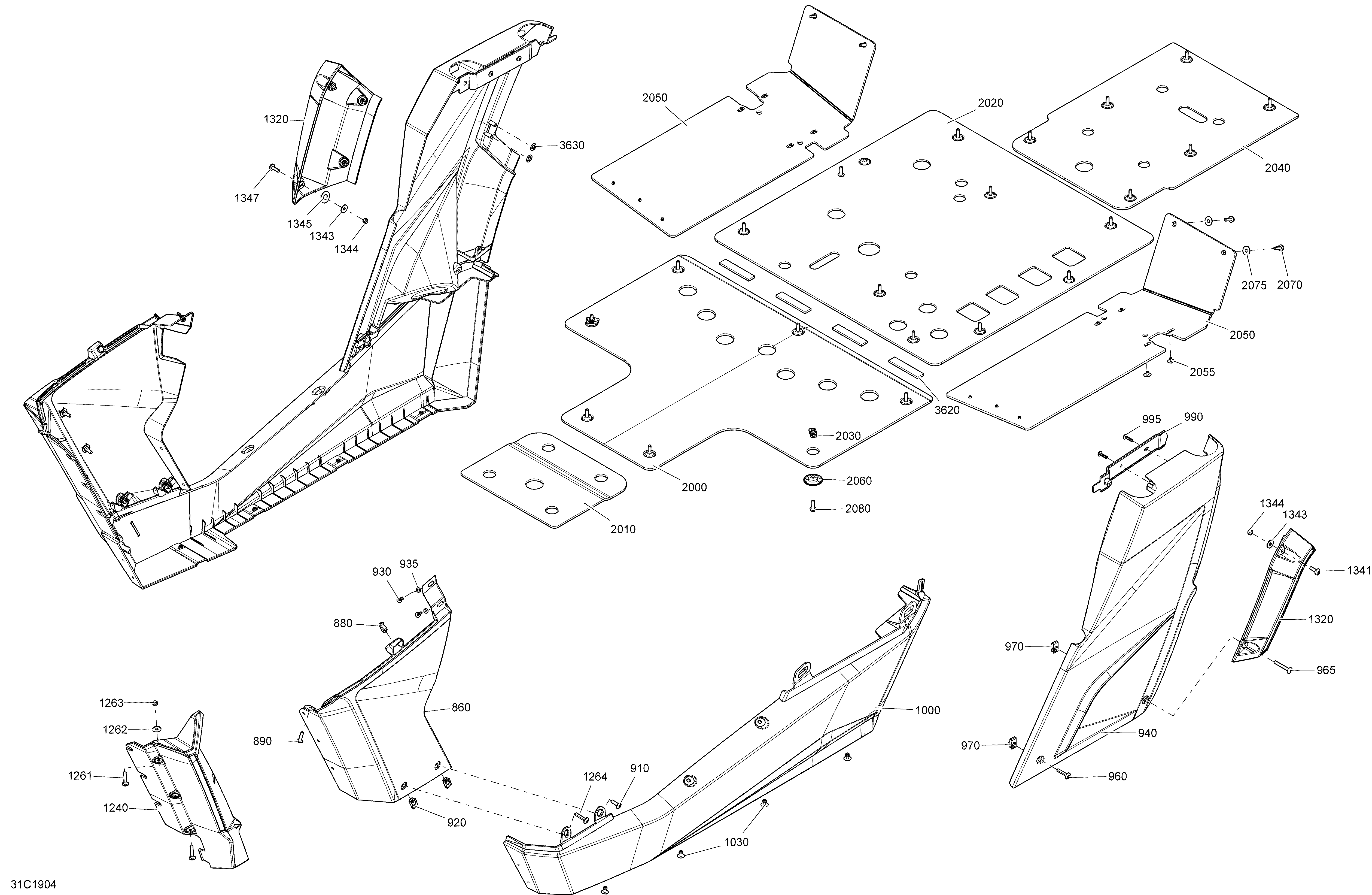

09- Body And Accessories - Central Panel - Squadron Green для BRP 002 - Commander 1000R EFI - North America - 2019

  • №
    Артикул
    Название
  • 860
    705011538 Squadron Green, LH Front Lateral Panel. Squadron Green
    Squadron Green, LH Front Lateral Panel. Squadron Green
  • 860
    705011539 Squadron Green, RH Front Lateral Panel. Squadron Green
    Squadron Green, RH Front Lateral Panel. Squadron Green
  • 880
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 890
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 900
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 910
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 920
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 930
    250000760 Torx Screw Truss Head K50X20 T20
    Torx Screw Truss Head K50X20 T20
  • 935
    234051410 Flat Washer M5
    Flat Washer M5
  • 940
    705011545 Squadron Green, LH Rear Lateral Panel. Squadron Green
    Squadron Green, LH Rear Lateral Panel. Squadron Green
  • 940
    705011550 Squadron Green, RH Rear Lateral Panel. Squadron Green
    Squadron Green, RH Rear Lateral Panel. Squadron Green
  • 960
    250000843 Torx Truss Screw M6 X 30
    Torx Truss Screw M6 X 30
  • 965
    250000748 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 970
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 990
    705007916 Support Skid Plate
    Support Skid Plate
  • 995
    250000760 Torx Screw Truss Head K50X20 T20
    Torx Screw Truss Head K50X20 T20
  • 1000
    705006991 LH Lateral Middle Panel. Packages DPS & STD
    LH Lateral Middle Panel. Packages DPS & STD
  • 1000
    705006992 RH Lateral Middle Panel. Packages DPS & STD
    RH Lateral Middle Panel. Packages DPS & STD
  • 1030
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 2000
    705007055 Middle Protector Plate. Except Package Hunting Edition
    Middle Protector Plate. Except Package Hunting Edition
  • 2020
    705007056 Rear Protector Plate. Except Package Hunting Edition
    Rear Protector Plate. Except Package Hunting Edition
  • 2040
    705007227 Rear Protector Plate
    Rear Protector Plate
  • 2050
    705007038 RH Lateral Skid Plate
    RH Lateral Skid Plate
  • 2055
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 2060
    705007171 Cup
    Cup
  • 2070
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 2075
    250200097 Flat Washer
    Flat Washer
  • 2080
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 3620
    291001932 Pad
    Pad
  • 3700
    250100031 Push Nut. Not Shown
    Push Nut. Not Shown
