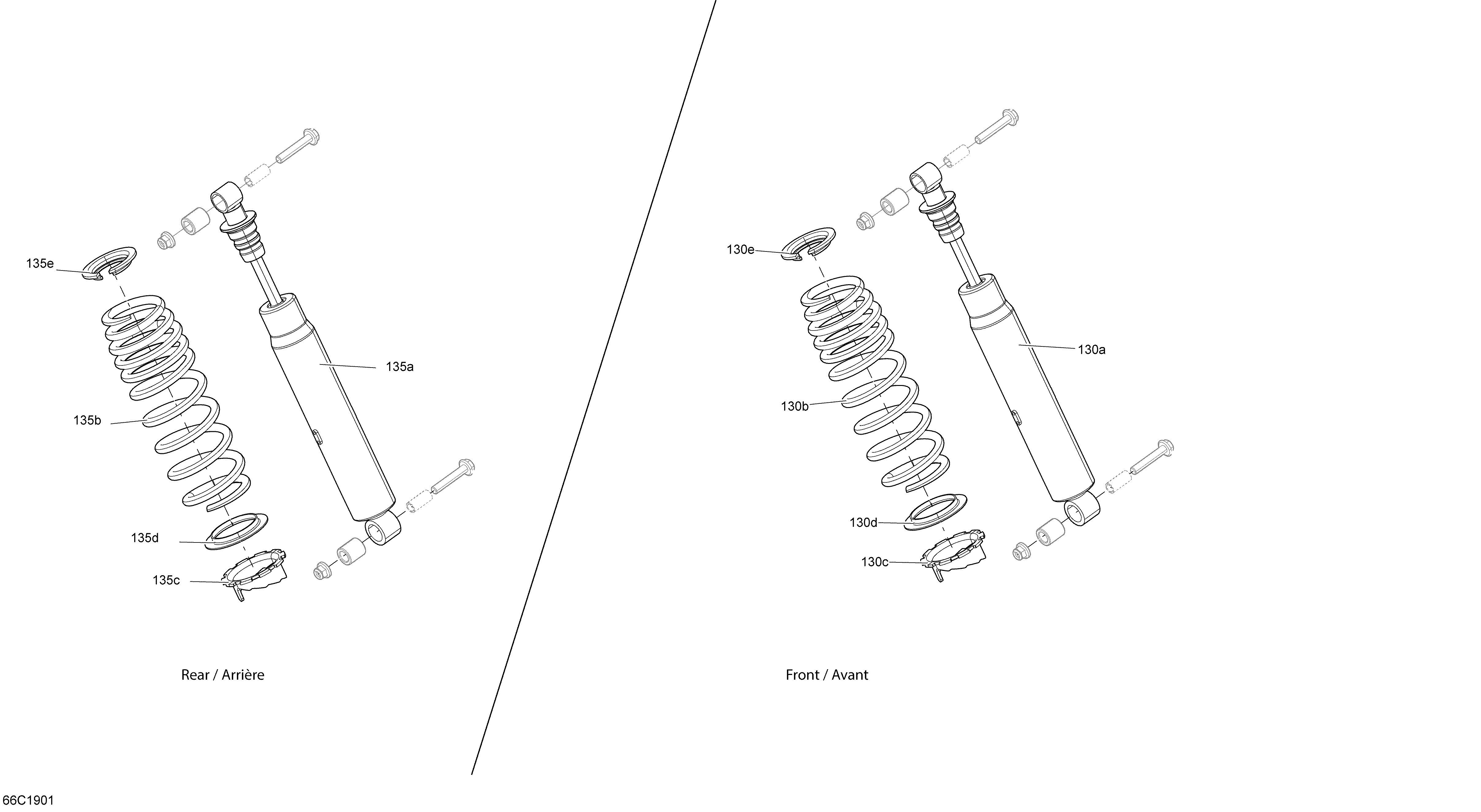

07- Shocks - Hunting Edition для BRP 002 - Commander 1000R EFI - North America - 2019
-
№АртикулНазвание
-
130a706200782 Front ShockFront Shock
-
130b706203269 Deep Black, Compression Spring FrontDeep Black, Compression Spring Front
-
130c706000910 Adjustable RingAdjustable Ring
-
130d706000911 Protector RingProtector Ring
-
130e706000567 Spring StopperSpring Stopper
-
135a706000615 Rear ShockRear Shock
-
135b706002467 Black Rear SpringBlack Rear Spring
-
135c706000910 Adjustable RingAdjustable Ring
-
135d706000911 Protector RingProtector Ring
-
135e706000567 Spring StopperSpring Stopper
