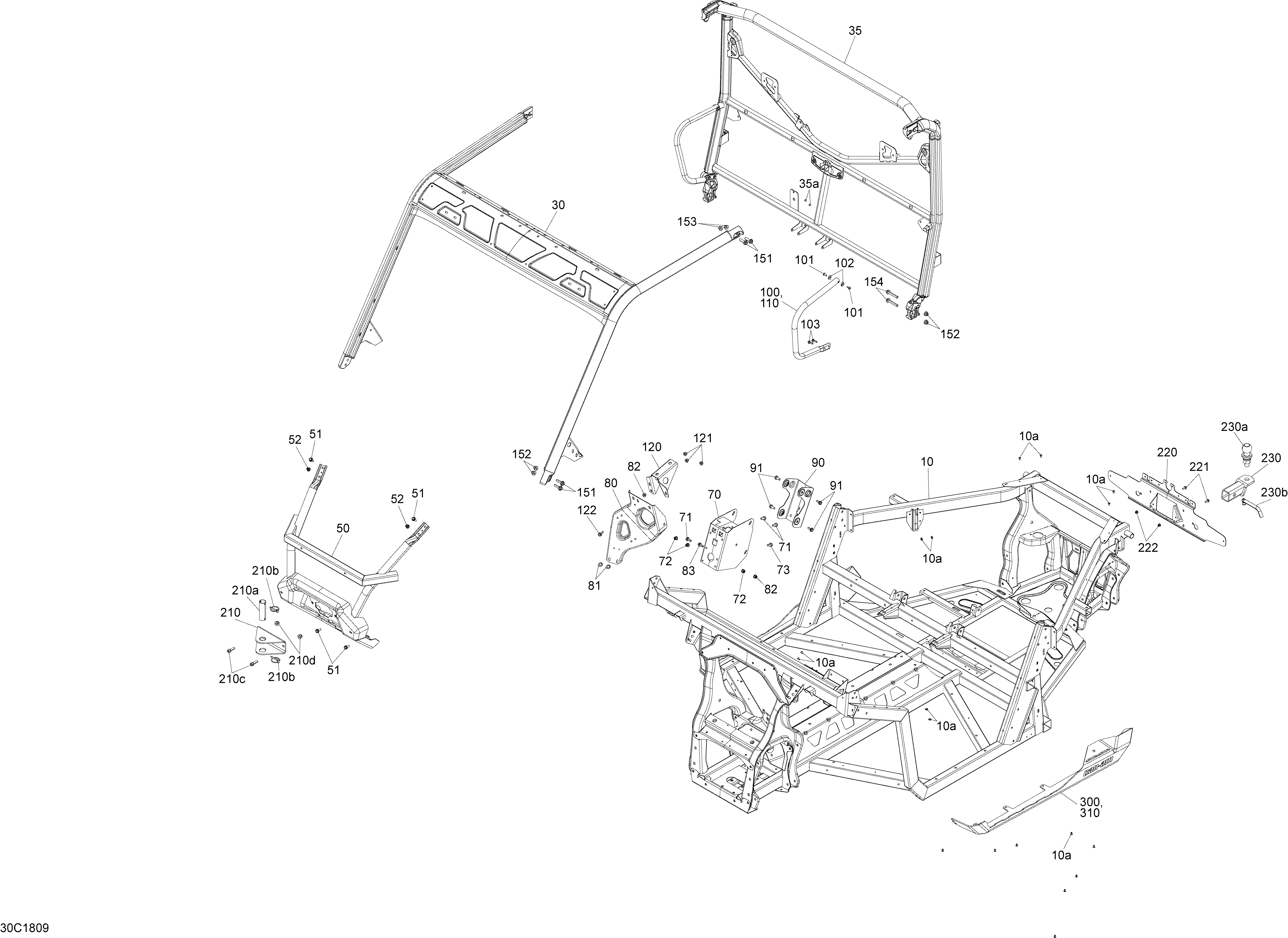

09- Frame Traxter T1B для BRP 6- Traxter T HD8 - 2018
‹-+›
-
№АртикулНазвание
-
10715005225 Frame Ass'y Black. Includes 10 to 10aFrame Ass'y Black. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30715005031 Front Cage Profile KitFront Cage Profile Kit
-
35715003569 Black, Rear Cage Kit. Includes 35 to 35aBlack, Rear Cage Kit. Includes 35 to 35a
-
35a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
35715003569 Black, Rear Cage KitBlack, Rear Cage Kit
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705206316 PlatePlate
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
73207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
80705206185 DPS SupportDPS Support
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
82233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
83207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
90705204429 Steering SupportSteering Support
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
110705204592 RH Protector TubeRH Protector Tube
-
120705205171 Shifting Module SupportShifting Module Support
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
210705206240 Front Coupling Device Ass'y. Includes 210 to 210dFront Coupling Device Ass'y. Includes 210 to 210d
-
210a605456511 PinPin
-
210b605456518 PinPin
-
210c205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
210d233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
220705011460 Plate SupportPlate Support
-
221207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
222233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
230705206264 Rear Hitch Kit. Includes 230 to 230bRear Hitch Kit. Includes 230 to 230b
-
230a705202391 Ball 50MMBall 50MM
-
230b705204490 Hitch PinHitch Pin
