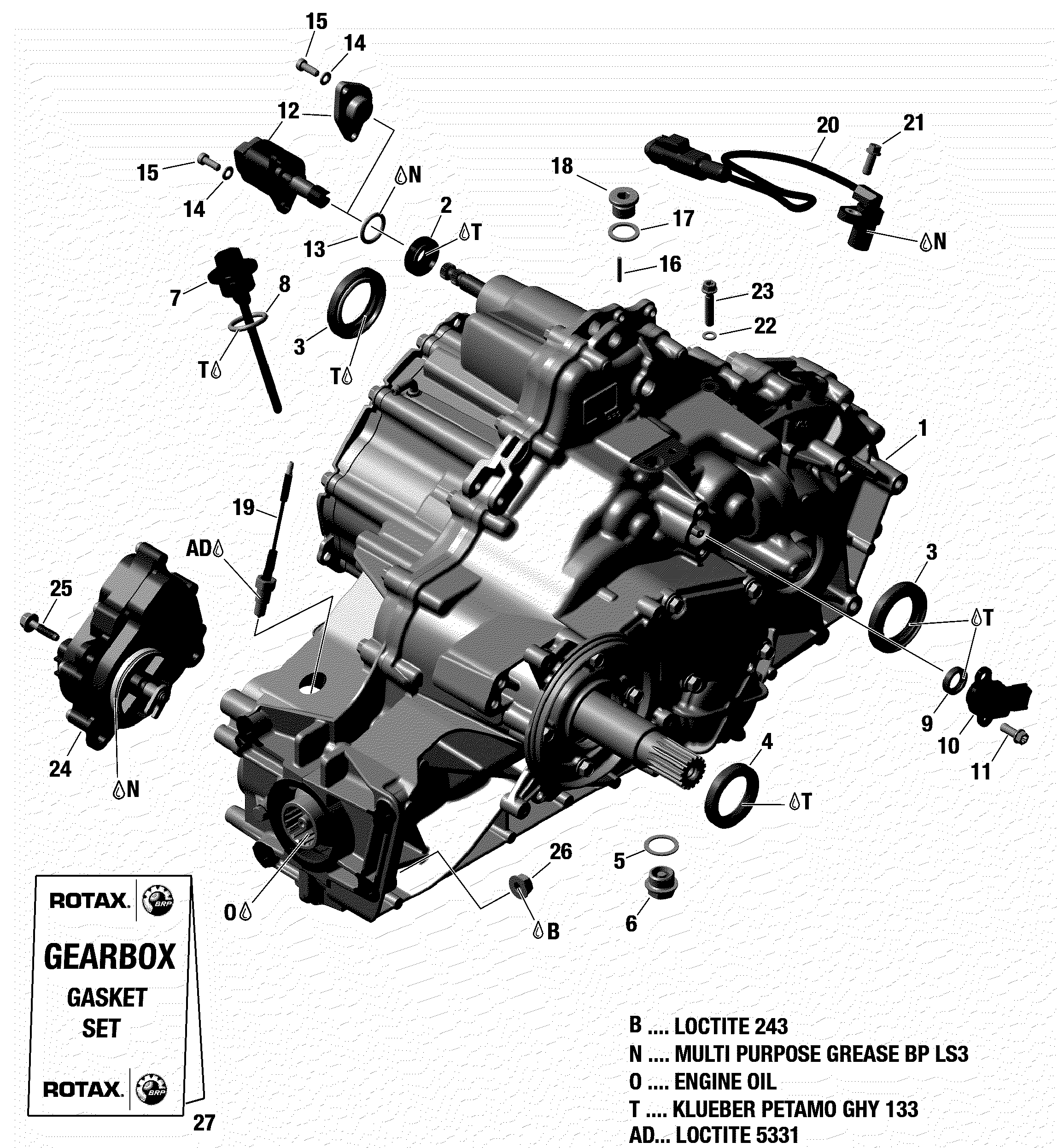

05- Gear Box Assembly для BRP 6- Traxter T HD8 - 2018

  • №
    Артикул
    Название
  • 1>23
    420686453 Gear Box Ass'y. With Lockable Differential. Ref Bulletin 2018-5
    Gear Box Ass'y. With Lockable Differential. Ref Bulletin 2018-5
  • 1>23
    421000722 Rebuilt Gear Box Ass'y. With Lockable Differential. Ref Bulletin 2018-5
    Rebuilt Gear Box Ass'y. With Lockable Differential. Ref Bulletin 2018-5
  • 1>23
    420686756 Gear Box Ass'y. Without Lockable Differential
    Gear Box Ass'y. Without Lockable Differential
  • 1>23
    420686756 Gear Box Ass'y. Without Lockable Differential
    Gear Box Ass'y. Without Lockable Differential
  • 2
    420250452 Oil Seal
    Oil Seal
  • 2
    420250452 Oil Seal
    Oil Seal
  • 3
    420831185 Oil Seal
    Oil Seal
  • 3
    420831185 Oil Seal
    Oil Seal
  • 4
    420950089 Oil Seal
    Oil Seal
  • 4
    420950089 Oil Seal
    Oil Seal
  • 5
    420552280 O-Ring
    O-Ring
  • 5
    420552280 O-Ring
    O-Ring
  • 6
    420840277 Drain Plug M18 X 1.5
    Drain Plug M18 X 1.5
  • 6
    420840277 Drain Plug M18 X 1.5
    Drain Plug M18 X 1.5
  • 7
    420256806 Oil Dipstick
    Oil Dipstick
  • 7
    420256806 Oil Dipstick
    Oil Dipstick
  • 8
    420631640 O-Ring
    O-Ring
  • 8
    420631640 O-Ring
    O-Ring
  • 9
    420931802 Oil Seal
    Oil Seal
  • 9
    420931802 Oil Seal
    Oil Seal
  • 10
    420666850 Angle Rotation Sensor
    Angle Rotation Sensor
  • 10
    420666850 Angle Rotation Sensor
    Angle Rotation Sensor
  • 11
    420440162 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 11
    420440162 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 12
    420265842 Servomotor. With Lockable Differential
    Servomotor. With Lockable Differential
  • 12
    420265842 Servomotor. With Lockable Differential
    Servomotor. With Lockable Differential
  • 12
    420427560 Cover. Without Lockable Differential
    Cover. Without Lockable Differential
  • 12
    420427560 Cover. Without Lockable Differential
    Cover. Without Lockable Differential
  • 13
    420450450 O-Ring
    O-Ring
  • 13
    420450450 O-Ring
    O-Ring
  • 14
    420927571 Washer
    Washer
  • 14
    420927571 Washer
    Washer
  • 15
    420240150 Allen Screw M5 X 14
    Allen Screw M5 X 14
  • 15
    420240150 Allen Screw M5 X 14
    Allen Screw M5 X 14
  • 16
    420932840 Needle Pin. With Lockable Differential
    Needle Pin. With Lockable Differential
  • 16
    420932840 Needle Pin. With Lockable Differential
    Needle Pin. With Lockable Differential
  • 17
    420430622 O-Ring
    O-Ring
  • 17
    420430622 O-Ring
    O-Ring
  • 18
    420240234 Plug Screw M16 X 1.5
    Plug Screw M16 X 1.5
  • 18
    420240234 Plug Screw M16 X 1.5
    Plug Screw M16 X 1.5
  • 19
    420640192 Position Switch
    Position Switch
  • 19
    420640192 Position Switch
    Position Switch
  • 20
    420265621 Speed Sensor
    Speed Sensor
  • 20
    420265621 Speed Sensor
    Speed Sensor
  • 21
    420440162 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 21
    420440162 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 22
    420230415 Seal Washer. Without Lockable Differential
    Seal Washer. Without Lockable Differential
  • 22
    420230415 Seal Washer. Without Lockable Differential
    Seal Washer. Without Lockable Differential
  • 23
    420440647 Flanged Torx Screw M6 X 30. Without Lockable Differential
    Flanged Torx Screw M6 X 30. Without Lockable Differential
  • 23
    420440647 Flanged Torx Screw M6 X 30. Without Lockable Differential
    Flanged Torx Screw M6 X 30. Without Lockable Differential
  • 24>24c
    415129174 Actuator Ass'y
    Actuator Ass'y
  • 24>24c
    415129174 Actuator Ass'y
    Actuator Ass'y
  • 24a
    415129175 Shifting Fork
    Shifting Fork
  • 24a
    415129175 Shifting Fork
    Shifting Fork
  • 24b
    293370042 Circlip
    Circlip
  • 24b
    293370042 Circlip
    Circlip
  • 24c
    293300117 O-Ring
    O-Ring
  • 24c
    293300117 O-Ring
    O-Ring
  • 25
    420441951 Collar Screw M6 x 25
    Collar Screw M6 x 25
  • 25
    420441951 Collar Screw M6 x 25
    Collar Screw M6 x 25
  • 26
    420842619 Hex. Nut M8
    Hex. Nut M8
  • 26
    420842619 Hex. Nut M8
    Hex. Nut M8
  • 27
    TBD To be determined
    To be determined
  • 27
    TBD To be determined
    To be determined
