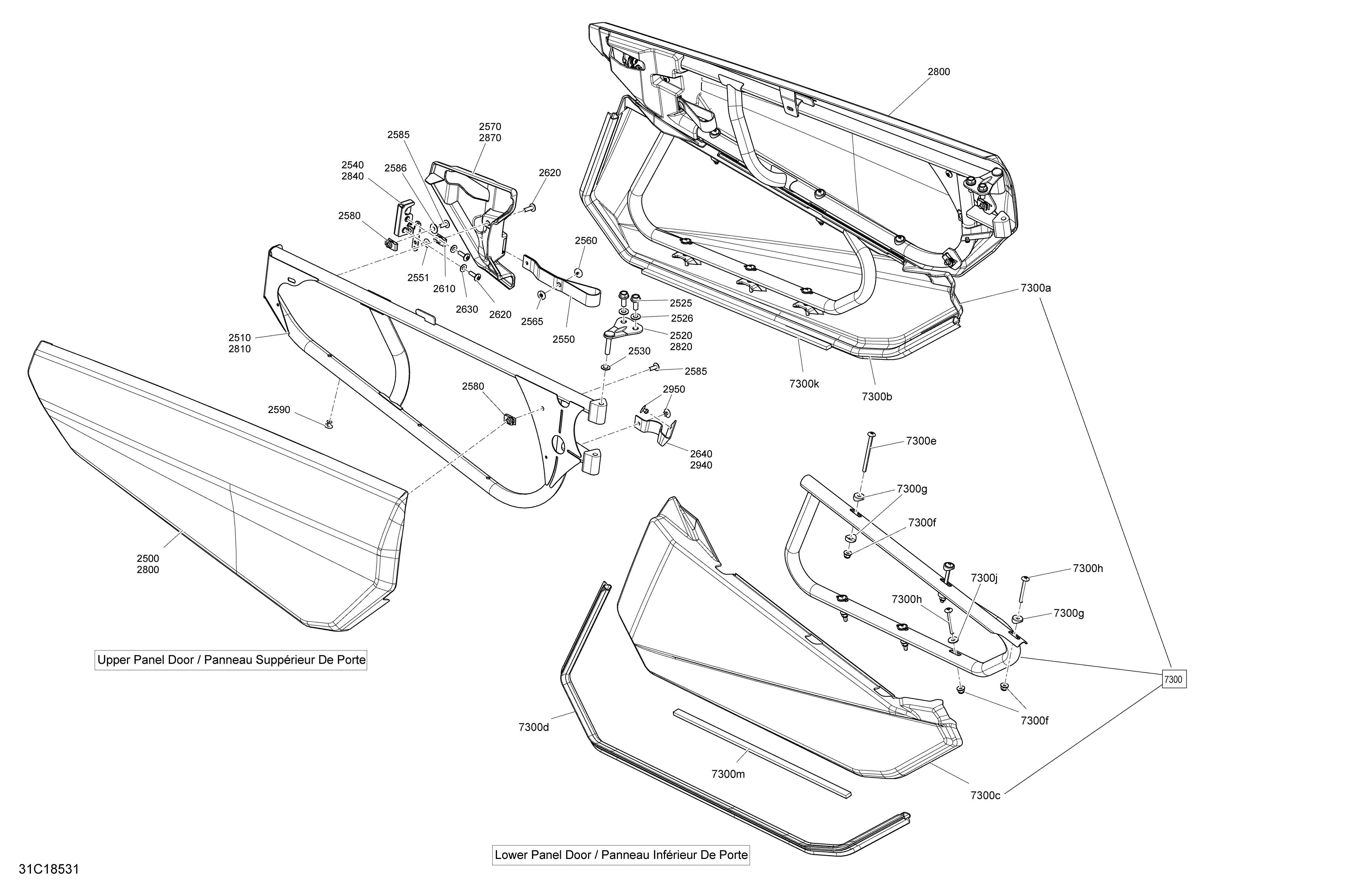

09- Body Side Part Maverick X3 Sunburst Yellow Models - Package XMR для BRP 7- Maverick X3 Turbo R - XMR - 2018

  • №
    Артикул
    Название
  • 2500
    705012472 Carbon Black, LH Door Panel
    Carbon Black, LH Door Panel
  • 2510
    705012564 Black, LH Door Frame. Black Cage Model
    Black, LH Door Frame. Black Cage Model
  • 2510
    705012545 Sunburst Yellow, LH Door Frame. Yellow Cage Model
    Sunburst Yellow, LH Door Frame. Yellow Cage Model
  • 2520
    705011187 Door Support
    Door Support
  • 2525
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 2526
    234081430 Flat Washer M8
    Flat Washer M8
  • 2530
    234081100 Flat Washer 8 mm, Nylon
    Flat Washer 8 mm, Nylon
  • 2540
    705012183 LH Latch
    LH Latch
  • 2550
    293850126 Belt
    Belt
  • 2551
    293150108 Pop Rivet 3/16”
    Pop Rivet 3/16”
  • 2560
    293730070 Belt Stopper
    Belt Stopper
  • 2565
    293730072 Belt Stopper
    Belt Stopper
  • 2570
    705010734 LH Latch Cover
    LH Latch Cover
  • 2580
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 2585
    250000721 Torx Truss Screw M6 X 16
    Torx Truss Screw M6 X 16
  • 2586
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2590
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 2610
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 2620
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 2630
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2640
    293850129 Door Belt
    Door Belt
  • 2650
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 2800
    705012935 Deep Black Right Door Panel
    Deep Black Right Door Panel
  • 2810
    705012546 Yellow, RH Door Frame. Yellow Cage Model
    Yellow, RH Door Frame. Yellow Cage Model
  • 2820
    705011187 Door Support
    Door Support
  • 2840
    705012184 RH Latch
    RH Latch
  • 2870
    705010735 RH Latch Cover
    RH Latch Cover
  • 2940
    293850129 Door Belt
    Door Belt
  • 2950
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 7300
    715002903 Door Panels. Includes 7300 to 7300m
    Door Panels. Includes 7300 to 7300m
  • 7300a
    705010272 RH Door Panels
    RH Door Panels
  • 7300b
    705012018 Door Seal
    Door Seal
  • 7300c
    705010271 LH Door Panels
    LH Door Panels
  • 7300d
    705012018 Door Seal
    Door Seal
  • 7300e
    250000902 Torx-Truss M/S M6 X 80
    Torx-Truss M/S M6 X 80
  • 7300f
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 7300g
    705202223 Offset Washer
    Offset Washer
  • 7300h
    250000749 Torx Truss Screw M6 X 50
    Torx Truss Screw M6 X 50
  • 7300j
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 7300k
    293200003 Neoprene Seal
    Neoprene Seal
  • 7300m
    293200003 Neoprene Seal
    Neoprene Seal
