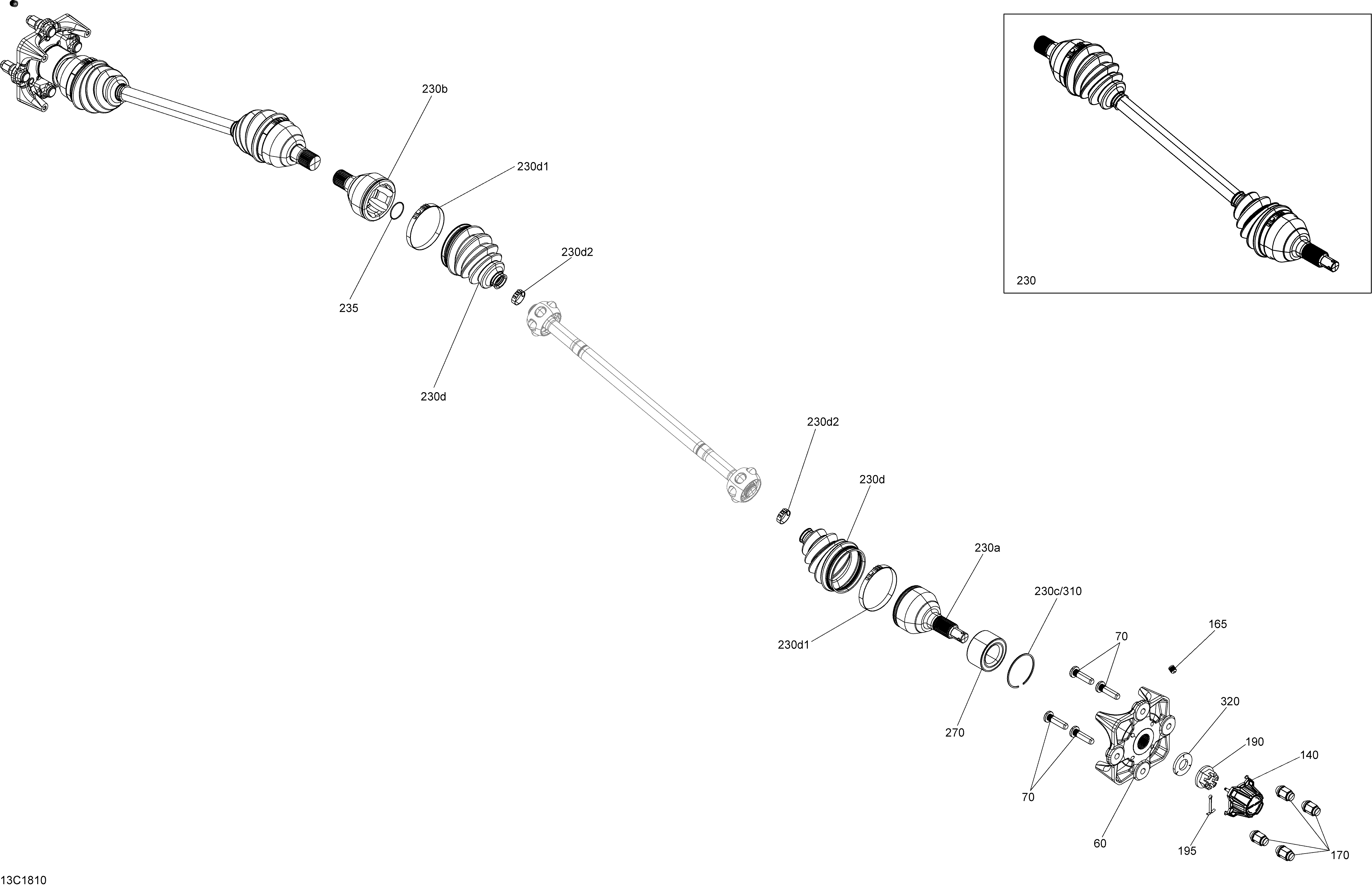

08- Rear Drive Maverick XMR, XRC для BRP 7- Maverick X3 Turbo R - XMR - 2018

‹-+›
  • №
    Артикул
    Название
  • 60
    705502122 Wheel Hub
    Wheel Hub
  • 70
    250300625 Wheel Stud M12X1.5
    Wheel Stud M12X1.5
  • 140
    705401841 Wheel Cap
    Wheel Cap
  • 165
    293000110 Valve Cap
    Valve Cap
  • 170
    250100196 Black Wheel Nut M12 X 1.50
    Black Wheel Nut M12 X 1.50
  • 190
    250100193 Castle Nut M20
    Castle Nut M20
  • 195
    250400084 Cotter Pin
    Cotter Pin
  • 230
    705502362 Homocinetic Joint. Includes 230 to 230d2
    Homocinetic Joint. Includes 230 to 230d2
  • 230a
    715900447 CV Joint
    CV Joint
  • 230b
    715900448 Plunging Joint
    Plunging Joint
  • 230c
    715900449 Circlip Joint
    Circlip Joint
  • 230d
    715900450 Boot Kit, Wheel Side. Includes 230d to 230d2
    Boot Kit, Wheel Side. Includes 230d to 230d2
  • 230d1
    715900455 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 230d2
    715900456 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 235
    293300196 O-Ring
    O-Ring
  • 270
    293350109 Ball Bearing
    Ball Bearing
  • 310
    293370102 Circlip
    Circlip
  • 320
    250200170 Conical Spring Washer M20
    Conical Spring Washer M20
