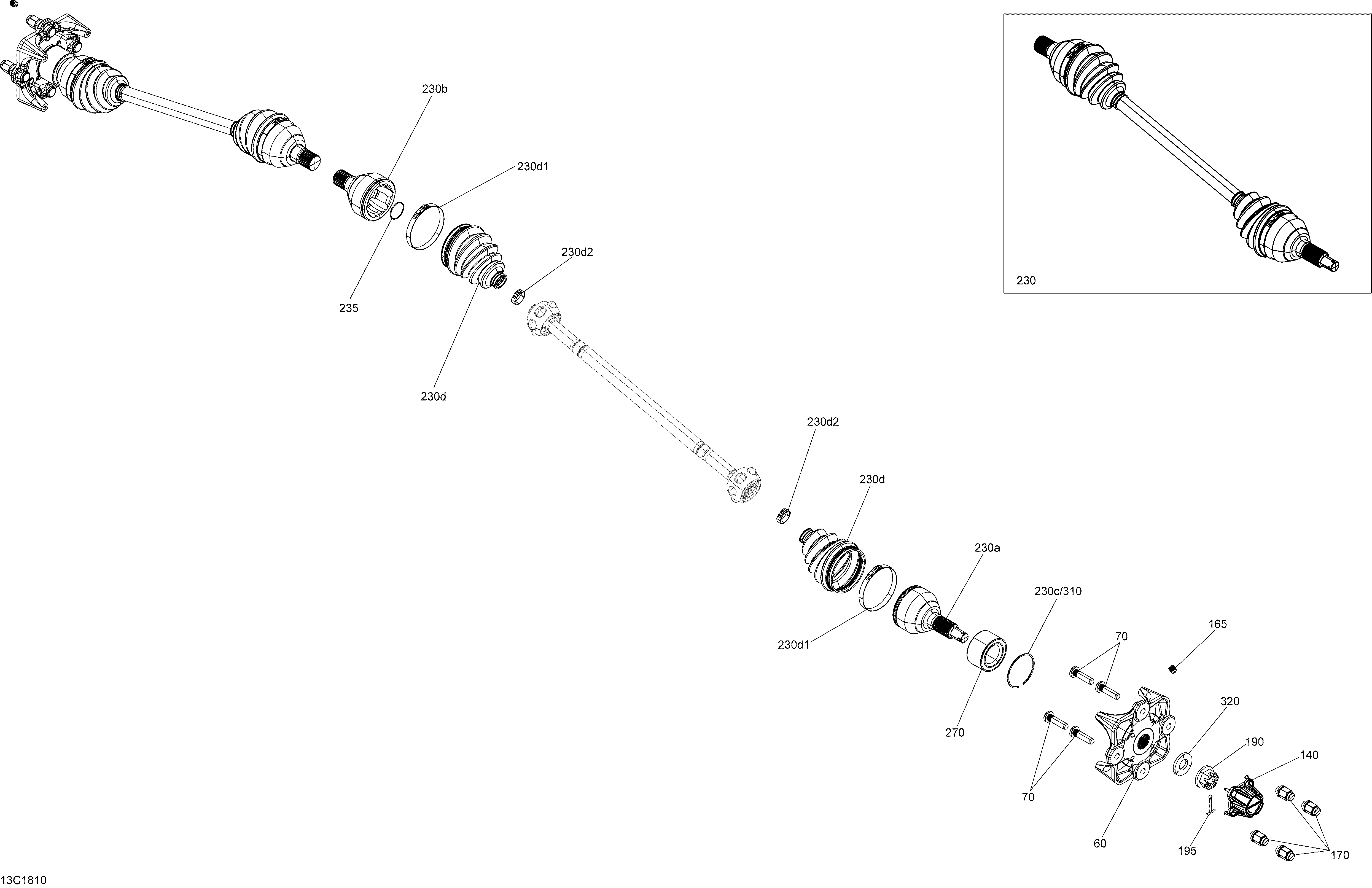

08- Rear Drive Maverick XMR, XRC для BRP 4- Maverick X3 Turbo - XRC - 2018
-
№АртикулНазвание
-
60705502122 Wheel HubWheel Hub
-
70250300625 Wheel Stud M12X1.5Wheel Stud M12X1.5
-
140705401841 Wheel CapWheel Cap
-
165293000110 Valve CapValve Cap
-
170250100196 Black Wheel Nut M12 X 1.50Black Wheel Nut M12 X 1.50
-
190250100193 Castle Nut M20Castle Nut M20
-
195250400084 Cotter PinCotter Pin
-
230705502154 Homocinetic Joint. Includes 230 to 230d2Homocinetic Joint. Includes 230 to 230d2
-
230a715900447 CV JointCV Joint
-
230b715900448 Plunging JointPlunging Joint
-
230c715900449 Circlip JointCirclip Joint
-
230d715900450 Boot Kit, Wheel Side. Includes 230d to 230d2Boot Kit, Wheel Side. Includes 230d to 230d2
-
230d1715900455 Oetiker Clamp, LargeOetiker Clamp, Large
-
230d2715900456 Oetiker Clamp, SmallOetiker Clamp, Small
-
235293300196 O-RingO-Ring
-
270293350109 Ball BearingBall Bearing
-
310293370102 CirclipCirclip
-
320250200170 Conical Spring Washer M20Conical Spring Washer M20
