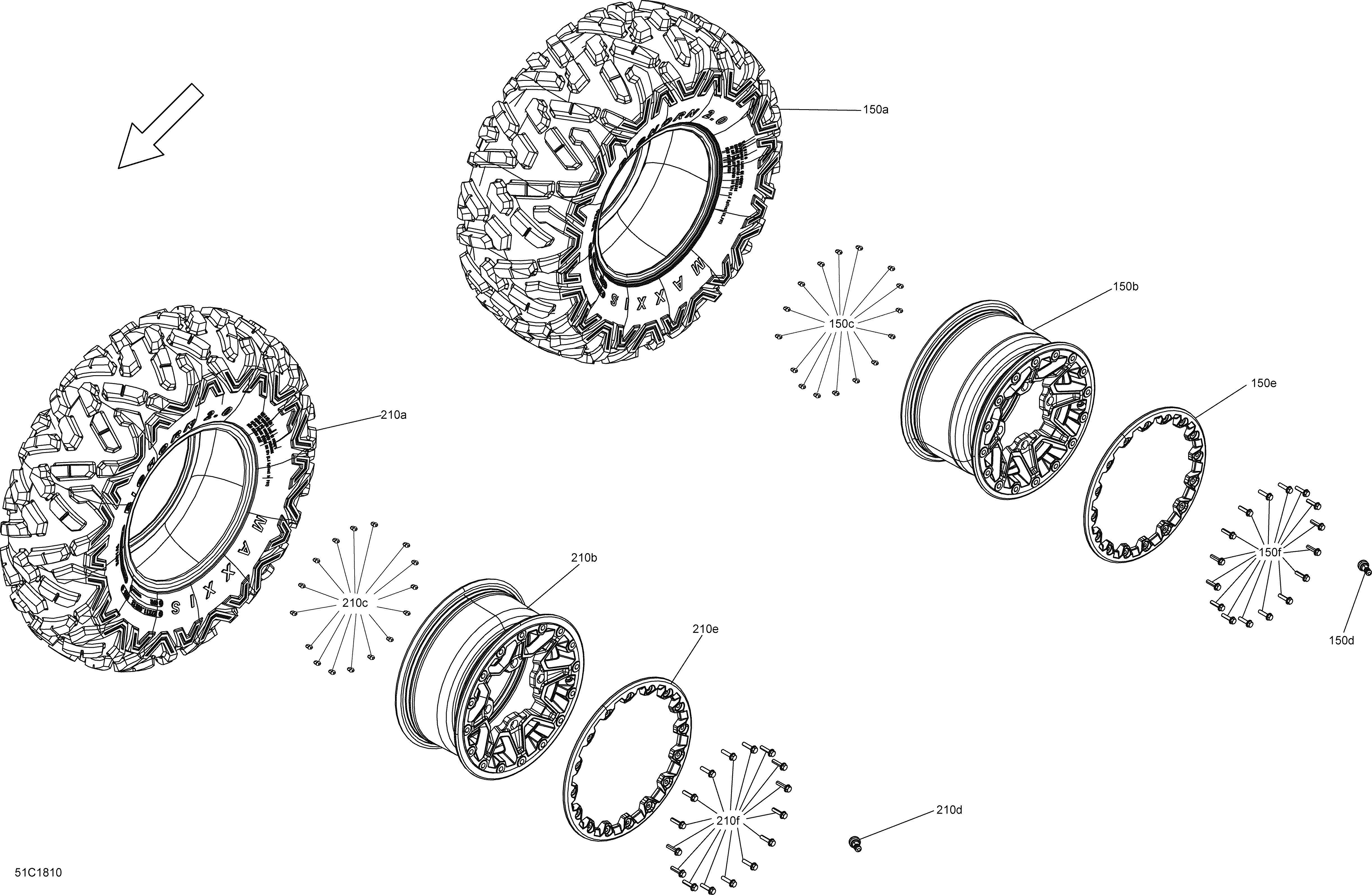

07- Wheels and Tires - Front and Rear - Package XRC для BRP 4- Maverick X3 Turbo - XRC - 2018
-
№АртикулНазвание
-
210a705402143 Tire Maxxis 30X10X14Tire Maxxis 30X10X14
-
210b705402173 Front Rim. Turbo R ModelFront Rim. Turbo R Model
-
210b705402254 Front Rim. Turbo ModelFront Rim. Turbo Model
-
210c293450360 InsertInsert
-
210d705400193 Rim Valve With CapRim Valve With Cap
-
210e705401709 Black Reinforcement Disk. Turbo R ModelBlack Reinforcement Disk. Turbo R Model
-
210f250000893 Screw Flanger M8 X 25Screw Flanger M8 X 25
-
150a705402143 Tire Maxxis 30X10X14Tire Maxxis 30X10X14
-
150b705402173 Rim. Turbo R ModelRim. Turbo R Model
-
150b705402254 Rim. Turbo ModelRim. Turbo Model
-
150c293450360 InsertInsert
-
150d705400193 Rim Valve With CapRim Valve With Cap
-
150e705401709 Black Reinforcement Disk. Turbo R ModelBlack Reinforcement Disk. Turbo R Model
-
150f250000893 Screw Flanger M8 X 25Screw Flanger M8 X 25
