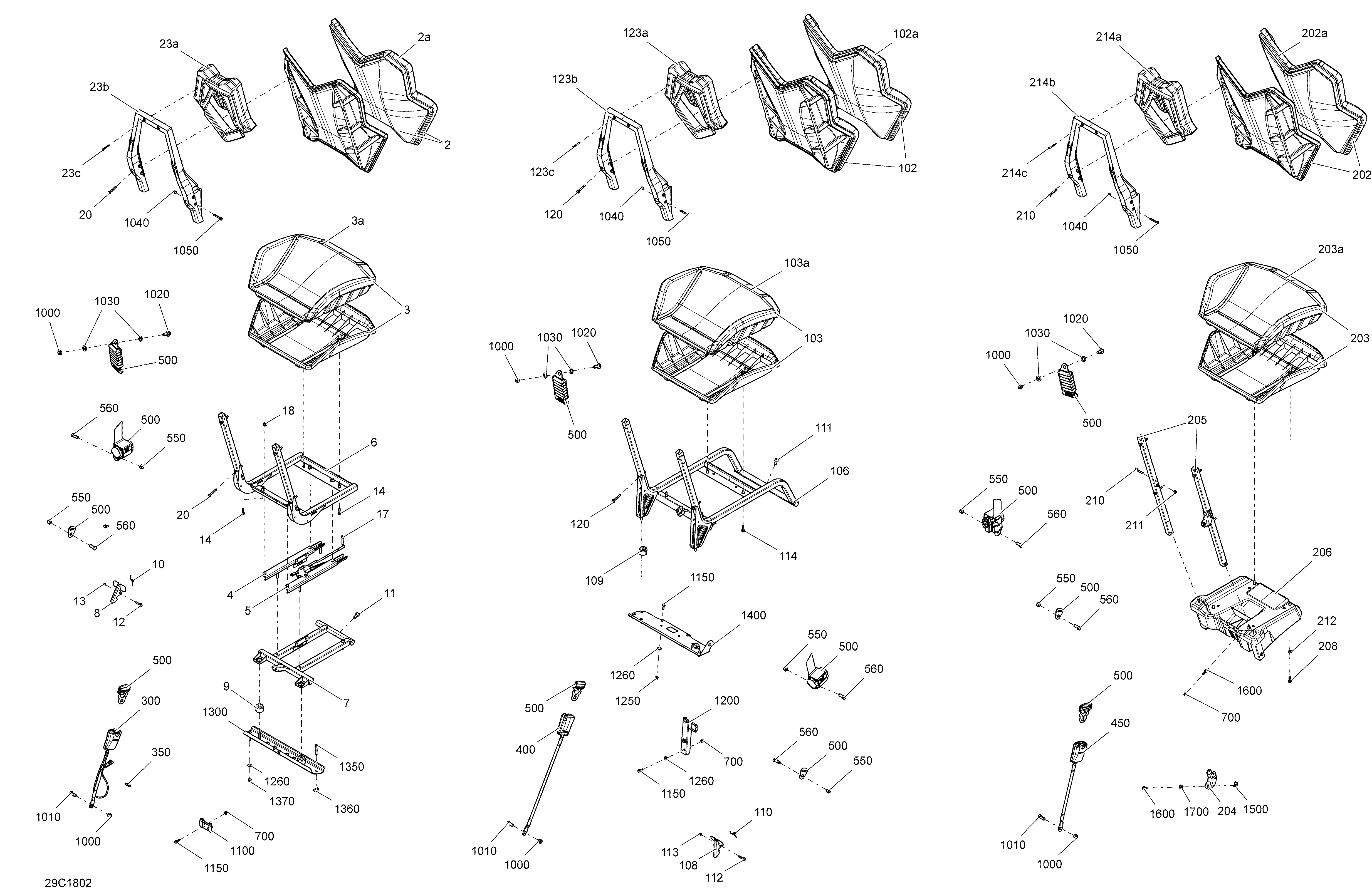

09- Seat Commander MAX для BRP 4- Commander MAX 1000R EFI - 2018

  • №
    Артикул
    Название
  • 2
    708001316 Backrest Assembly. Package DPS
    Backrest Assembly. Package DPS
  • 2
    708001316 Backrest Assembly. Package XT
    Backrest Assembly. Package XT
  • 2
    708001316 Backrest Assembly. Package STD
    Backrest Assembly. Package STD
  • 2
    708002246 Backrest Ass'y Black. Package Hunter
    Backrest Ass'y Black. Package Hunter
  • 2
    708002616 Backrest Ass'y. Package LTD
    Backrest Ass'y. Package LTD
  • 2a
    708000675 Backrest Cover. Package DPS
    Backrest Cover. Package DPS
  • 2a
    708000675 Backrest Cover. Package XT
    Backrest Cover. Package XT
  • 2a
    708000675 Backrest Cover. Package STD
    Backrest Cover. Package STD
  • 2a
    708002248 Backrest Cover Black. Package Hunter
    Backrest Cover Black. Package Hunter
  • 2a
    708002618 Backrest Cover. Package LTD
    Backrest Cover. Package LTD
  • 3
    703500943 Cushion Ass'y. Package DPS
    Cushion Ass'y. Package DPS
  • 3
    703500943 Cushion Ass'y. Package XT
    Cushion Ass'y. Package XT
  • 3
    703500943 Cushion Ass'y. Package STD
    Cushion Ass'y. Package STD
  • 3
    708002247 Cushion Ass'y Black. Package Hunter
    Cushion Ass'y Black. Package Hunter
  • 3
    708002617 Cushion Ass'y. Package LTD
    Cushion Ass'y. Package LTD
  • 3a
    708001103 Seat Cover. Package DPS
    Seat Cover. Package DPS
  • 3a
    708001103 Seat Cover. Package XT
    Seat Cover. Package XT
  • 3a
    708001103 Seat Cover. Package STD
    Seat Cover. Package STD
  • 3a
    708002249 Cushion Cover Black. Package Hunter
    Cushion Cover Black. Package Hunter
  • 3a
    708002619 Seat Cover. Package LTD
    Seat Cover. Package LTD
  • 4
    708000848 LH Rail
    LH Rail
  • 5
    708001739 RH Rail
    RH Rail
  • 6
    708001356 Operator Seat Frame
    Operator Seat Frame
  • 7
    708001174 Seat Member. Package DPS
    Seat Member. Package DPS
  • 7
    708001174 Seat Member. Package XT
    Seat Member. Package XT
  • 7
    708000667 Seat Member. Package STD
    Seat Member. Package STD
  • 7
    708000667 Seat Member. Package Hunter
    Seat Member. Package Hunter
  • 7
    708001174 Seat Member. Package LTD
    Seat Member. Package LTD
  • 8
    708001355 Seat Latch
    Seat Latch
  • 9
    708001671 Rubber Bumper
    Rubber Bumper
  • 10
    708000921 Spring
    Spring
  • 11
    205501644 Socket Screw M10 X 16
    Socket Screw M10 X 16
  • 12
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 13
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 14
    207562544 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 17
    205084044 Socket Head Screw M8 X 40
    Socket Head Screw M8 X 40
  • 18
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 20
    250000672 Hex. Flange Screw M6
    Hex. Flange Screw M6
  • 23a
    708001074 Head Rest
    Head Rest
  • 23b
    708001245 Seat Support
    Seat Support
  • 23C
    250000897 Hex. Flange Screw K50 X 40
    Hex. Flange Screw K50 X 40
  • 102
    708001316 Backrest Assembly. Package STD, DPS, XT
    Backrest Assembly. Package STD, DPS, XT
  • 102
    708002246 Backrest Ass'y Black. Package Hunter
    Backrest Ass'y Black. Package Hunter
  • 102
    708002616 Backrest Ass'y. Package LTD
    Backrest Ass'y. Package LTD
  • 102a
    708000675 Backrest Cover. Package STD, DPS, XT
    Backrest Cover. Package STD, DPS, XT
  • 102a
    708002248 Backrest Cover Black. Package Hunter
    Backrest Cover Black. Package Hunter
  • 102a
    708002618 Backrest Cover. Package LTD
    Backrest Cover. Package LTD
  • 103
    703500943 Cushion Ass'y. Package STD, DPS, XT
    Cushion Ass'y. Package STD, DPS, XT
  • 103
    708002247 Cushion Ass'y Black. Package Hunter
    Cushion Ass'y Black. Package Hunter
  • 103
    708002617 Cushion Ass'y. Package LTD
    Cushion Ass'y. Package LTD
  • 103a
    708001103 Seat Cover. Package STD, DPS, XT
    Seat Cover. Package STD, DPS, XT
  • 103a
    708002249 Cushion Cover Black. Package Hunter
    Cushion Cover Black. Package Hunter
  • 103a
    708002619 Seat Cover. Package LTD
    Seat Cover. Package LTD
  • 106
    708001357 Passenger Seat Frame. All Package
    Passenger Seat Frame. All Package
  • 108
    708001355 Seat Latch
    Seat Latch
  • 109
    708001671 Rubber Bumper
    Rubber Bumper
  • 110
    708000921 Spring
    Spring
  • 111
    205501644 Socket Screw M10 X 16
    Socket Screw M10 X 16
  • 112
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 113
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 114
    207562544 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 120
    250000672 Hex. Flange Screw M6
    Hex. Flange Screw M6
  • 123a
    708001074 Head Rest
    Head Rest
  • 123b
    708001245 Seat Support
    Seat Support
  • 123c
    250000897 Hex. Flange Screw K50 X 40
    Hex. Flange Screw K50 X 40
  • 202
    708001316 Backrest Assembly. Package DPS
    Backrest Assembly. Package DPS
  • 202
    708001316 Backrest Assembly. Package XT
    Backrest Assembly. Package XT
  • 202
    708002616 Backrest Ass'y. Package LTD
    Backrest Ass'y. Package LTD
  • 202a
    708000675 Backrest Cover. Package DPS
    Backrest Cover. Package DPS
  • 202a
    708000675 Backrest Cover. Package XT
    Backrest Cover. Package XT
  • 202a
    708002618 Backrest Cover. Package LTD
    Backrest Cover. Package LTD
  • 203
    703500943 Cushion Ass'y. Package DPS
    Cushion Ass'y. Package DPS
  • 203
    703500943 Cushion Ass'y. Package XT
    Cushion Ass'y. Package XT
  • 203
    708002617 Cushion Ass'y. Package LTD
    Cushion Ass'y. Package LTD
  • 203a
    708001103 Seat Cover. Package DPS
    Seat Cover. Package DPS
  • 203a
    708001103 Seat Cover. Package XT
    Seat Cover. Package XT
  • 203a
    708002619 Seat Cover. Package LTD
    Seat Cover. Package LTD
  • 204
    708001474 Rear Anchor
    Rear Anchor
  • 205
    708001476 Side Tube
    Side Tube
  • 206
    708001198 Seat Support
    Seat Support
  • 208
    207562544 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 210
    250000672 Hex. Flange Screw M6
    Hex. Flange Screw M6
  • 211
    233161464 Hex. Elastic Flange Nut M6
    Hex. Elastic Flange Nut M6
  • 212
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 214a
    708001074 Head Rest
    Head Rest
  • 214b
    708001245 Seat Support
    Seat Support
  • 214c
    250000897 Hex. Flange Screw K50 X 40
    Hex. Flange Screw K50 X 40
  • 300
    708002061 Driver Buckle Side
    Driver Buckle Side
  • 400
    708002064 Passenger Buckle Side
    Passenger Buckle Side
  • 450
    708002063 Rear Passenger Buckle Side
    Rear Passenger Buckle Side
  • 500
    708002644 Safety Belt
    Safety Belt
  • 550
    250100135 Nylon Insert Hex. Lock Nut 7/16-20
    Nylon Insert Hex. Lock Nut 7/16-20
  • 560
    250000521 Hex. Cap Screw 7/16'' X 1''
    Hex. Cap Screw 7/16'' X 1''
  • 700
    293450274 Insert
    Insert
  • 1100
    708001212 Anchor
    Anchor
  • 1150
    207562054 Flanged Hex. Screw S.GRIP M6 X 20
    Flanged Hex. Screw S.GRIP M6 X 20
  • 1200
    708001213 Anchor
    Anchor
  • 1250
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 1260
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 1300
    708001214 Seat Support
    Seat Support
  • 1350
    250000213 Hex. Flanged Screw M6 X 1.0 X 45
    Hex. Flanged Screw M6 X 1.0 X 45
  • 1360
    250100171 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 1370
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1400
    708001804 Support
    Support
  • 1500
    250100171 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 1600
    207562054 Flanged Hex. Screw S.GRIP M6 X 20
    Flanged Hex. Screw S.GRIP M6 X 20
  • 1700
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 1000
    250100135 Nylon Insert Hex. Lock Nut 7/16-20
    Nylon Insert Hex. Lock Nut 7/16-20
  • 1010
    708000890 Safety Belt Screw
    Safety Belt Screw
  • 1020
    708000891 Position Washer
    Position Washer
  • 1030
    233161464 Hex. Elastic Flange Nut M6
    Hex. Elastic Flange Nut M6
  • 1040
    250000521 Hex. Cap Screw 7/16'' X 1''
    Hex. Cap Screw 7/16'' X 1''
  • 1050
    250000672 Hex. Flange Screw M6
    Hex. Flange Screw M6
