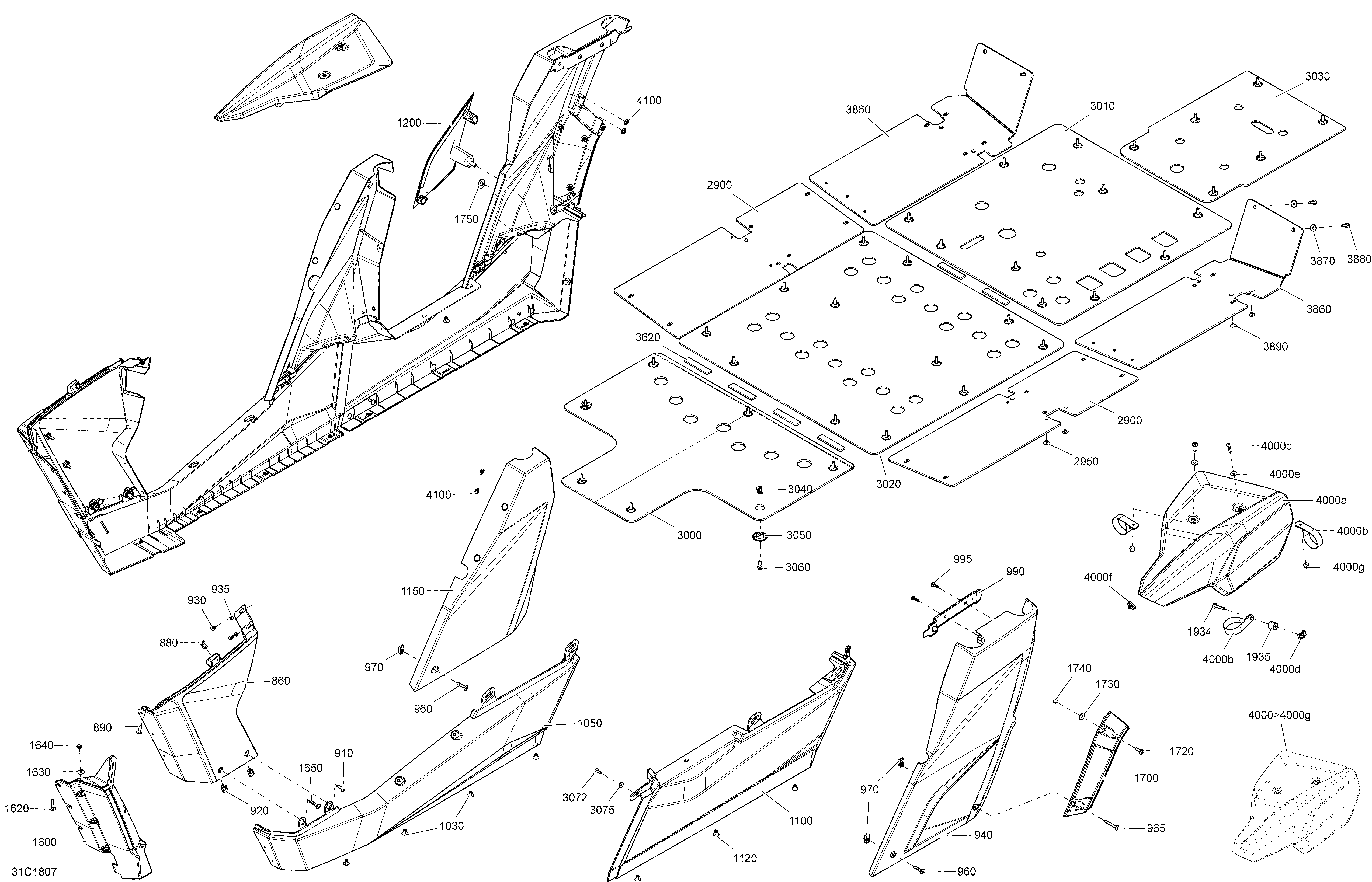

09- Body And Accessories Commander MAX - Central Midnight Blue Models для BRP 4- Commander MAX 1000R EFI - 2018

  • №
    Артикул
    Название
  • 860
    705011654 Painted Midnight Blue Left Front Panel. Midnight Blue Models
    Painted Midnight Blue Left Front Panel. Midnight Blue Models
  • 870
    705011655 Painted Midnight BlueRight Front Panel. Midnight Blue Models
    Painted Midnight BlueRight Front Panel. Midnight Blue Models
  • 880
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 890
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 900
    250000957 Extruded Panel Nut M6 X 1.0. Not Shown
    Extruded Panel Nut M6 X 1.0. Not Shown
  • 910
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 915
    250000722 Torx Screw M6 X 20. Package DPS. Not Shown
    Torx Screw M6 X 20. Package DPS. Not Shown
  • 920
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 930
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 935
    234051410 Flat Washer M5
    Flat Washer M5
  • 940
    705011724 Painted Midnight Blue Left Rear Panel. Midnight Blue Models
    Painted Midnight Blue Left Rear Panel. Midnight Blue Models
  • 950
    705011727 Painted Midnight Blue Right Rear Panel. Midnight Blue Models
    Painted Midnight Blue Right Rear Panel. Midnight Blue Models
  • 960
    250000843 Torx Truss Screw M6 X 30
    Torx Truss Screw M6 X 30
  • 965
    250000748 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 970
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 990
    705007916 Support Skid Plate
    Support Skid Plate
  • 995
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 1030
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1050
    705005423 Black LH Lower Panel
    Black LH Lower Panel
  • 1050
    705007035 Black LH Lower Panel. Package LTD
    Black LH Lower Panel. Package LTD
  • 1050
    705007035 Black LH Lower Panel. Package XT
    Black LH Lower Panel. Package XT
  • 1060
    705005424 Black RH Lower Panel
    Black RH Lower Panel
  • 1060
    705007036 Black RH Lower Panel. Package LTD
    Black RH Lower Panel. Package LTD
  • 1060
    705007036 Black RH Lower Panel. Package XT
    Black RH Lower Panel. Package XT
  • 1100
    705005425 Black LH Rear Lower Panel
    Black LH Rear Lower Panel
  • 1110
    705005426 Black RH Rear Lower Panel
    Black RH Rear Lower Panel
  • 1120
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1150
    705011681 Painted Midnight Blue LH Center Panel . Midnight Blue Models
    Painted Midnight Blue LH Center Panel . Midnight Blue Models
  • 1160
    705011682 Painted Midnight Blue RH Center Panel. Midnight Blue Models
    Painted Midnight Blue RH Center Panel. Midnight Blue Models
  • 1200
    705011738 Painted Midnight Blue Panel Cover. Midnight Blue Models
    Painted Midnight Blue Panel Cover. Midnight Blue Models
  • 1600
    705008668 LH Lower Black Mudguard. Package XT, LTD
    LH Lower Black Mudguard. Package XT, LTD
  • 1610
    705008669 RH Lower Black Mudguard. Package XT, LTD
    RH Lower Black Mudguard. Package XT, LTD
  • 1620
    250000842 Torx Screw M6 X 30 Stainless. Package XT, LTD
    Torx Screw M6 X 30 Stainless. Package XT, LTD
  • 1630
    234062670 Flat Washer, Stainless. Package XT, LTD
    Flat Washer, Stainless. Package XT, LTD
  • 1640
    232561434 Elastic Stop Nut M6. Package XT, LTD
    Elastic Stop Nut M6. Package XT, LTD
  • 1650
    250000842 Torx Screw M6 X 30 Stainless. Package XT, LTD
    Torx Screw M6 X 30 Stainless. Package XT, LTD
  • 1700
    705008670 LH Rear Lower Black Mudguard. Package XT, LTD
    LH Rear Lower Black Mudguard. Package XT, LTD
  • 1710
    705008672 RH Rear Lower Black Mudguard. Package XT, LTD
    RH Rear Lower Black Mudguard. Package XT, LTD
  • 1720
    250000712 Torx Screw M6 X 20. Package XT, LTD
    Torx Screw M6 X 20. Package XT, LTD
  • 1730
    234062670 Flat Washer, Stainless. Package XT, LTD
    Flat Washer, Stainless. Package XT, LTD
  • 1740
    232561434 Elastic Stop Nut M6. Package XT, LTD
    Elastic Stop Nut M6. Package XT, LTD
  • 1750
    250200086 Flat Washer. Package XT, LTD
    Flat Washer. Package XT, LTD
  • 2900
    705008421 Side Protector Plate
    Side Protector Plate
  • 2950
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 3000
    705007055 Middle Protector Plate
    Middle Protector Plate
  • 3010
    705007056 Rear Protector Plate
    Rear Protector Plate
  • 3020
    705009447 Skid Plate
    Skid Plate
  • 3030
    705007227 Rear Protector Plate
    Rear Protector Plate
  • 3040
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 3050
    705007171 Cup
    Cup
  • 3060
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 3072
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 3075
    250200025 Washer M5
    Washer M5
  • 3620
    291001932 Pad
    Pad
  • 3860
    705007038 RH Lateral Skid Plate
    RH Lateral Skid Plate
  • 3870
    250200097 Flat Washer
    Flat Washer
  • 3880
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 3890
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 4000>4000e
    705012096 Kit Cage Cover Midnight Blue. Midnight Blue Models. Includes 4000 to 4000e
    Kit Cage Cover Midnight Blue. Midnight Blue Models. Includes 4000 to 4000e
  • 4000a
    705005626 ''P'' Bracket, 2'' Dia.. Midnight Blue Models
    ''P'' Bracket, 2'' Dia.. Midnight Blue Models
  • 4000b
    207662054 Hex. Flanged Screw M6 X 20. Midnight Blue Models
    Hex. Flanged Screw M6 X 20. Midnight Blue Models
  • 4000c
    250000957 Extruded Panel Nut M6 X 1.0. Midnight Blue Models
    Extruded Panel Nut M6 X 1.0. Midnight Blue Models
  • 4000d
    234062670 Flat Washer, Stainless. Midnight Blue Models
    Flat Washer, Stainless. Midnight Blue Models
  • 4000e
    233261494 Hex. Elastic Flanged Nut M6. Midnight Blue Models
    Hex. Elastic Flanged Nut M6. Midnight Blue Models
