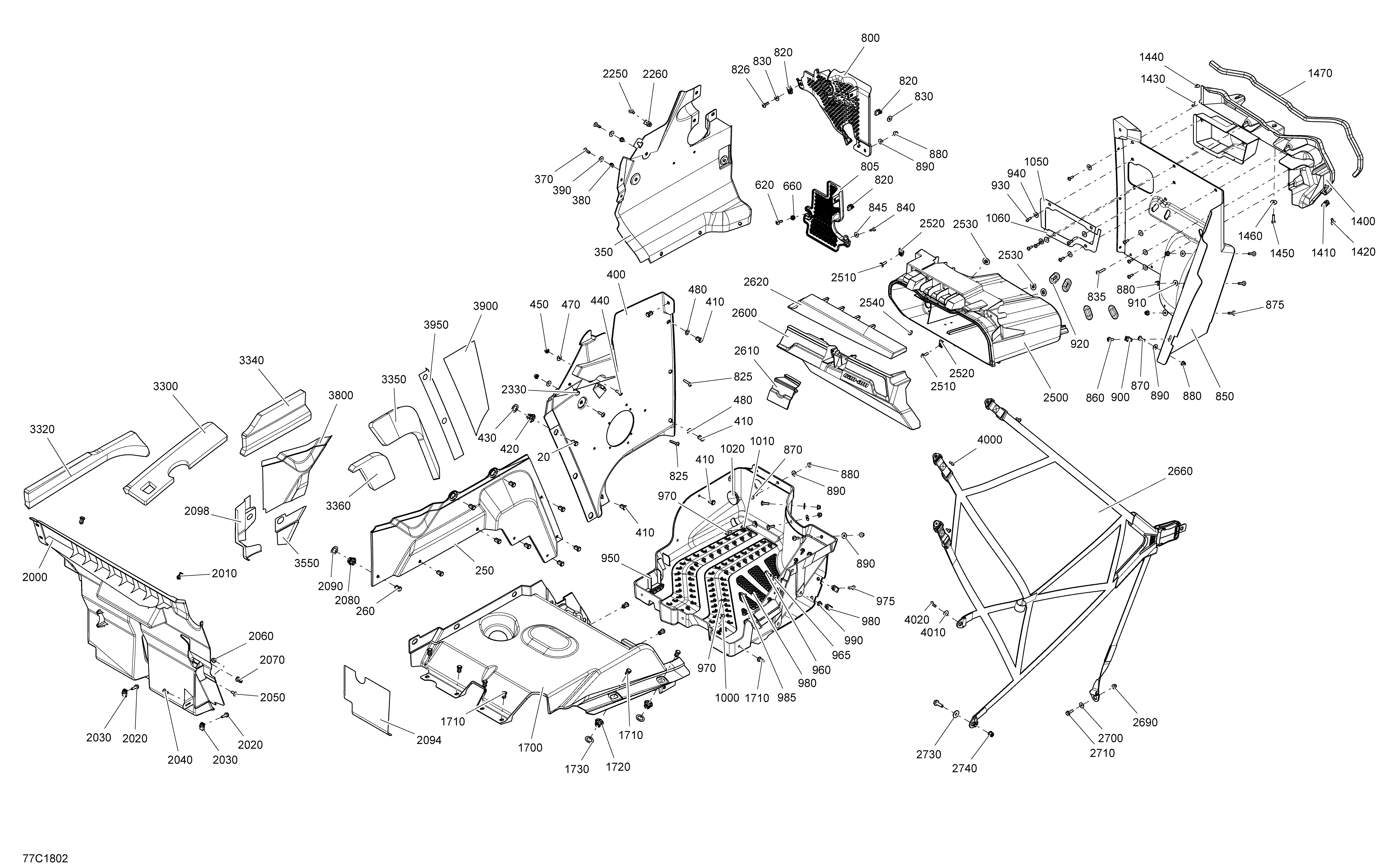

09- Cab Interior Commander Non MAX - Side Panels All Models для BRP 1- Commander 800R EFI - 2018
-
№АртикулНазвание
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
250707900002 RH Side ConsoleRH Side Console
-
260293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
350707900193 Front Side Dash Panel. Package STD, DPSFront Side Dash Panel. Package STD, DPS
-
370250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
380293450274 InsertInsert
-
390234062670 Flat Washer, StainlessFlat Washer, Stainless
-
400707900021 RH Fixe Side Console. Package XT, HunterRH Fixe Side Console. Package XT, Hunter
-
400707900021 RH Fixe Side Console. Package STD, DPSRH Fixe Side Console. Package STD, DPS
-
400707900098 RH Fixe Side Console. Package LTDRH Fixe Side Console. Package LTD
-
410293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
420707900133 InsertInsert
-
430503189273 WasherWasher
-
440250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
450293450274 InsertInsert
-
470234062670 Flat Washer, StainlessFlat Washer, Stainless
-
480506151252 WasherWasher
-
620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
660293450274 InsertInsert
-
800707900178 GrillGrill
-
805707900180 GrillGrill
-
820250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
825250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
826250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
830234062670 Flat Washer, StainlessFlat Washer, Stainless
-
835250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
840250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
845250200025 Washer M5Washer M5
-
850707900004 RH Front FloorRH Front Floor
-
860250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
870250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
875250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
880233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
890234062670 Flat Washer, StainlessFlat Washer, Stainless
-
900250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
910234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920705003668 Oblong GrommetOblong Grommet
-
930250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
940234062410 Flat Washer 6 mmFlat Washer 6 mm
-
950707900023 RH Lower FloorRH Lower Floor
-
960250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
965234062670 Flat Washer, StainlessFlat Washer, Stainless
-
970250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
975250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
980250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
985250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
990233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1000234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1010293450274 InsertInsert
-
1020293250242 Rubber CoverRubber Cover
-
1050293250252 Upper SealUpper Seal
-
1060293250253 Bottom SealBottom Seal
-
1400707900030 RH Floor SupportRH Floor Support
-
1410250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
1420250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1430250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1440224060201 Flat WasherFlat Washer
-
1450207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
1460224061201 Flat WasherFlat Washer
-
1470293200093 Neoprene SealNeoprene Seal
-
1700707900006 RH Under Seat PlateRH Under Seat Plate
-
1710293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1720707900133 InsertInsert
-
1730503189273 WasherWasher
-
2000707900166 RH Rear DeflectorRH Rear Deflector
-
2010293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2020207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2030250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2040250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2050250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
2060233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
2070293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2080707900133 InsertInsert
-
2090503189273 WasherWasher
-
2094707900167 Heat ShieldHeat Shield
-
2098707900184 Heat ShieldHeat Shield
-
2250250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2260250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2330293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2500707900009 Storage Bin. Package STD, DPSStorage Bin. Package STD, DPS
-
2500707900046 Storage Bin. Package XT, Hunter, LTDStorage Bin. Package XT, Hunter, LTD
-
2510207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2520250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2530414859400 CapCap
-
2540293830005 Rubber BumperRubber Bumper
-
2600707900221 Luggage Cover KitLuggage Cover Kit
-
2610707900031 LatchLatch
-
2620707900062 Trim Glove BoxTrim Glove Box
-
2660707900062 Trim Glove BoxTrim Glove Box
-
2690233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2700234062410 Flat Washer 6 mmFlat Washer 6 mm
-
2710207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2730234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2740233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3300707900619 Front Central Console FoamFront Central Console Foam
-
3320707900620 Left Upper Lateral Console FoamLeft Upper Lateral Console Foam
-
3340707900622 Right Lateral Console FoamRight Lateral Console Foam
-
3350707900623 Right Lateral Console FoamRight Lateral Console Foam
-
3360707900624 Right Lateral Console FoamRight Lateral Console Foam
-
3550707900148 Heat SheetHeat Sheet
-
3800707900147 Heat SheetHeat Sheet
-
3900707900190 Heat SheetHeat Sheet
-
3950707900191 Heat SheetHeat Sheet
-
4000250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
4010250200040 Flat WasherFlat Washer
-
4020207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
