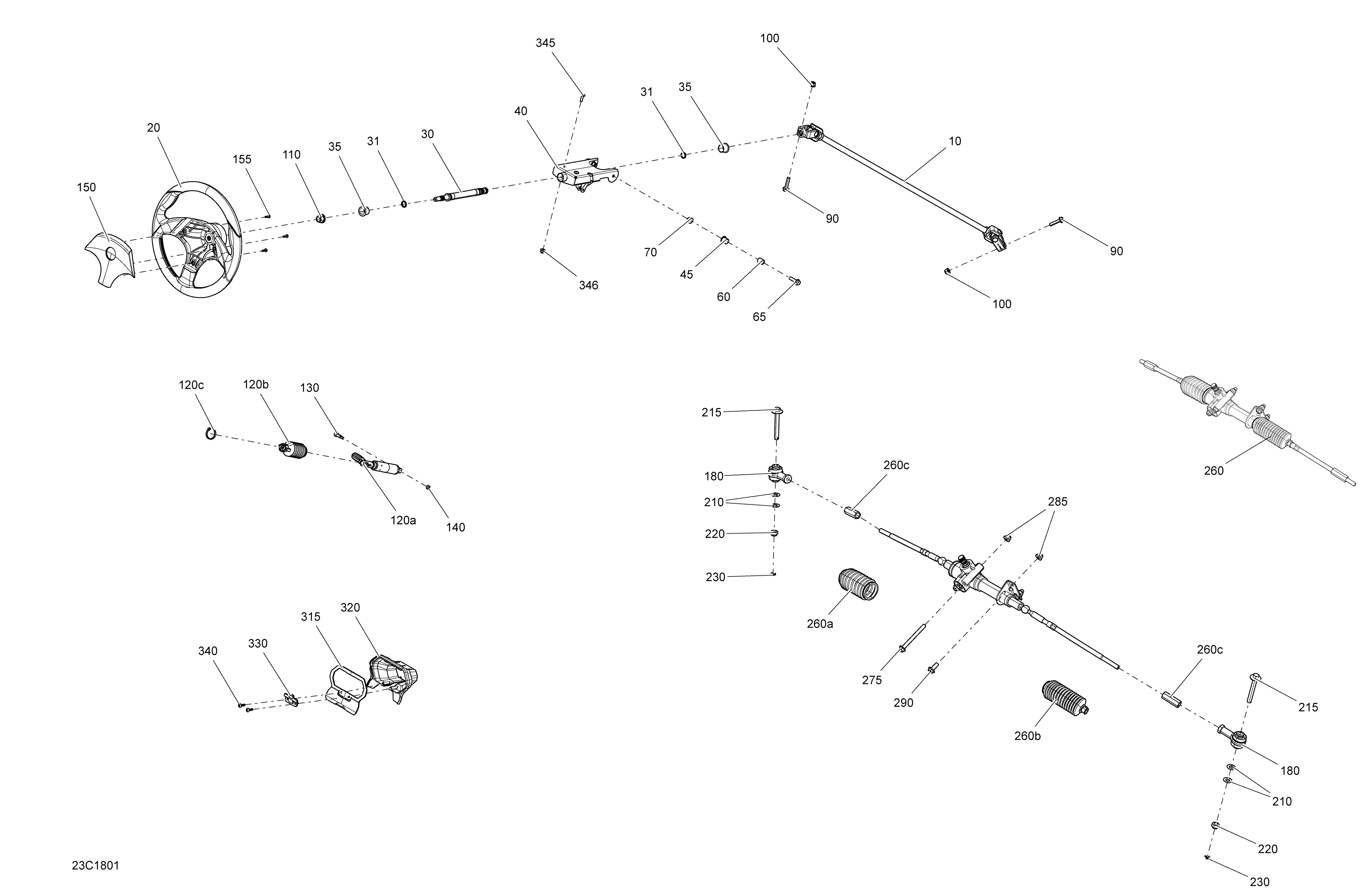

07- Steering Commander - Package STD для BRP 1- Commander 800R EFI - 2018
-
№АртикулНазвание
-
10709401498 Steering Shaft Ass'ySteering Shaft Ass'y
-
20709400650 Steering WheelSteering Wheel
-
30709401167 Steering ShaftSteering Shaft
-
31293300144 O-RingO-Ring
-
35415108000 CushionCushion
-
40709401391 Painted Steering Wheel SupportPainted Steering Wheel Support
-
45705600799 BushingBushing
-
60293900106 BushingBushing
-
65207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
70233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
90207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
100233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
110233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
120a709400656 Adjustment CylinderAdjustment Cylinder
-
120b709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
120c414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
130250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
140232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
150709400780 Steering CenterSteering Center
-
155250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
180709401134 Ball JointBall Joint
-
210250200086 Flat WasherFlat Washer
-
215250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
220232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
230211400017 Cotter PinCotter Pin
-
260>260c709401500 Rack And Pinion Steering. Includes 260 to 260cRack And Pinion Steering. Includes 260 to 260c
-
260a715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
260b715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
260c715900237 Nut Tie Rod EndNut Tie Rod End
-
275230600046 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
285233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
290207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
315709400760 Cluster SupportCluster Support
-
320709400514 Speedometer CoverSpeedometer Cover
-
330709400573 Latch Indicator CoverLatch Indicator Cover
-
340250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
345250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
346233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
