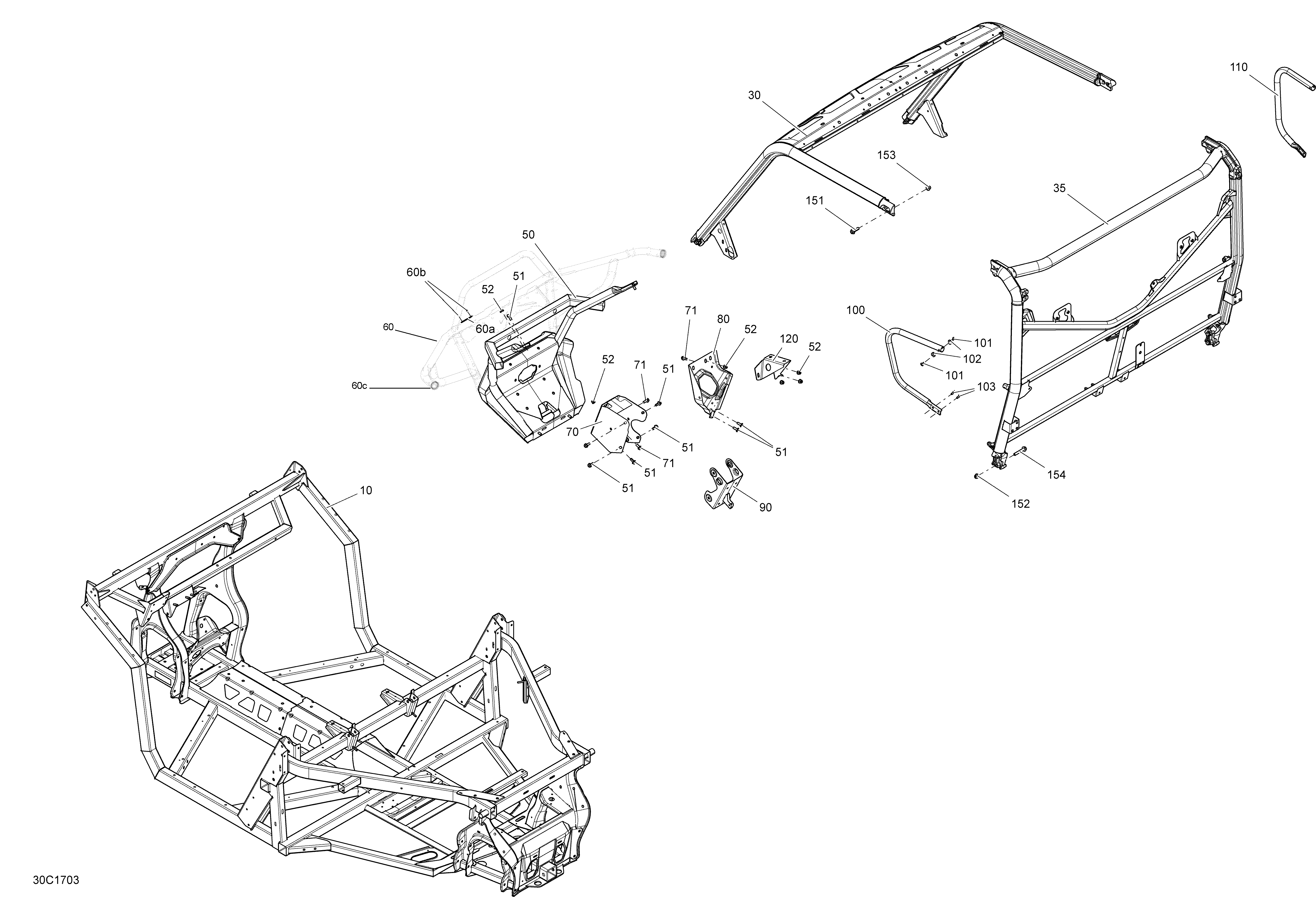

09- Frame - All Models для BRP Traxter HD8, HD10 - 2017
-
№АртикулНазвание
-
10715003762 Black Frame Ass'yBlack Frame Ass'y
-
30715003560 Front Cage Profile KitFront Cage Profile Kit
-
35715003569 Rear Cage Profile KitRear Cage Profile Kit
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
60a704902307 Can Am LogoCan Am Logo
-
60b293150189 Pop Rivet 1/8'', BlackPop Rivet 1/8'', Black
-
60c705205318 CapCap
-
70705204228 Brake Module SupportBrake Module Support
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
80715003570 DPS SupportDPS Support
-
90705204429 Steering SupportSteering Support
-
100705204594 LH Protector TubeLH Protector Tube
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
110705204592 RH Protector TubeRH Protector Tube
-
120705205171 Shifting Module SupportShifting Module Support
-
151250000855 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
152233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
153233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
154207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
