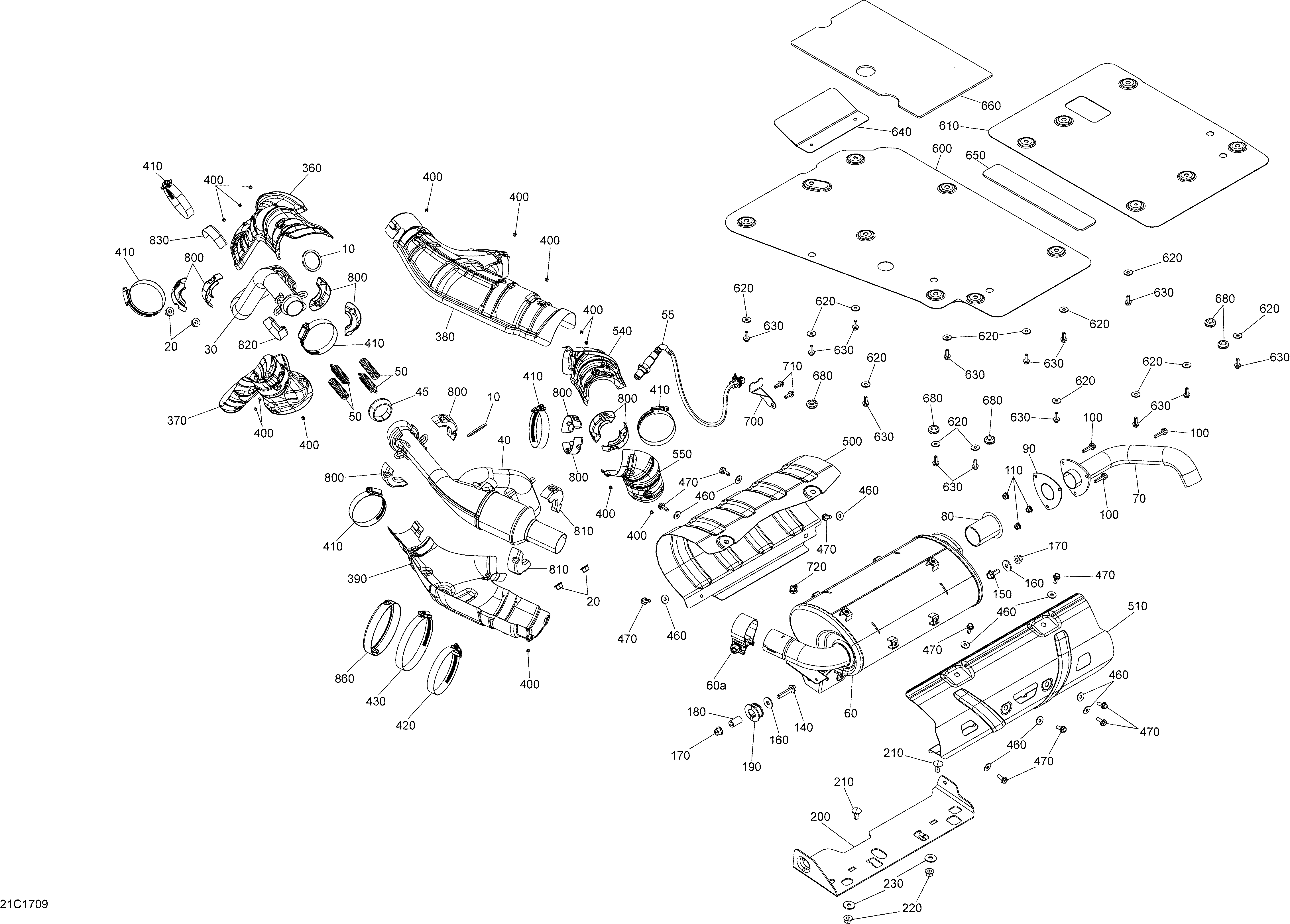

01- Exhaust System - December 2016 and up для BRP Traxter HD8, HD10 - 2017

  • №
    Артикул
    Название
  • 10
    707600317 Gasket
    Gasket
  • 20
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 30
    707601913 Front Exhaust Pipe. Engine HD8
    Front Exhaust Pipe. Engine HD8
  • 30
    707601903 Front Exhaust Pipe. Engine HD10
    Front Exhaust Pipe. Engine HD10
  • 40
    707601916 Rear Exhaust Pipe. Engine HD8
    Rear Exhaust Pipe. Engine HD8
  • 40
    707601906 Rear Exhaust Pipe. Engine HD10
    Rear Exhaust Pipe. Engine HD10
  • 45
    707601814 Exhaust Gasket
    Exhaust Gasket
  • 50
    707601834 Spring
    Spring
  • 55
    707600872 Oxygen Sensor
    Oxygen Sensor
  • 60>60a
    707601770 Muffler
    Muffler
  • 60a
    293650228 Exhaust Pipe Clamp
    Exhaust Pipe Clamp
  • 70
    707601526 Exhaust Tail Pipe
    Exhaust Tail Pipe
  • 80
    707601803 Spark Arrestor
    Spark Arrestor
  • 90
    707601799 Gasket
    Gasket
  • 100
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 110
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 140
    207684044 Hex. Flanged Screw M8 X 40
    Hex. Flanged Screw M8 X 40
  • 150
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 160
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 170
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 180
    707601901 Spacer
    Spacer
  • 190
    707601902 Rubber Mount
    Rubber Mount
  • 200
    707601588 Muffler Support
    Muffler Support
  • 210
    207782044 Carriage Bolt, M8 X 20
    Carriage Bolt, M8 X 20
  • 220
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 230
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 360
    707601923 Heat Shield, Front
    Heat Shield, Front
  • 370
    707601924 Heat Shield, Front
    Heat Shield, Front
  • 380
    707601925 Heat Shield
    Heat Shield
  • 390
    707601926 Heat Shield
    Heat Shield
  • 400
    293150071 Pop Rivet 1/8
    Pop Rivet 1/8
  • 410
    293650258 Tridon Gear Clamp
    Tridon Gear Clamp
  • 420
    293650250 Tridon Gear Clamp
    Tridon Gear Clamp
  • 430
    293650261 Tridon Gear Clamp
    Tridon Gear Clamp
  • 460
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 470
    250000906 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 500
    707601521 Heat Shield
    Heat Shield
  • 510
    707602170 Heat Shield
    Heat Shield
  • 540
    707601927 Heat Shield, Rear
    Heat Shield, Rear
  • 550
    707601928 Heat Shield, Rear
    Heat Shield, Rear
  • 600
    707602083 Heat Shield
    Heat Shield
  • 610
    707601759 Heat Shield
    Heat Shield
  • 620
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 630
    210261640 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 640
    707601970 Heat Shield
    Heat Shield
  • 650
    707601921 Reflective Sheet
    Reflective Sheet
  • 660
    707602032 Reflective Sheet
    Reflective Sheet
  • 680
    709000582 Grommet
    Grommet
  • 700
    707602025 Connector Support
    Connector Support
  • 710
    210261640 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 720
    710005529 Dart Mount
    Dart Mount
  • 800
    707602026 Exhaust Pipe Spacer
    Exhaust Pipe Spacer
  • 810
    707602027 Exhaust Pipe Spacer
    Exhaust Pipe Spacer
  • 820
    707601948 Exhaust Pipe Spacer
    Exhaust Pipe Spacer
  • 830
    707602016 Exhaust Pipe Spacer
    Exhaust Pipe Spacer
  • 860
    707602013 Exhaust Pipe Spacer
    Exhaust Pipe Spacer
