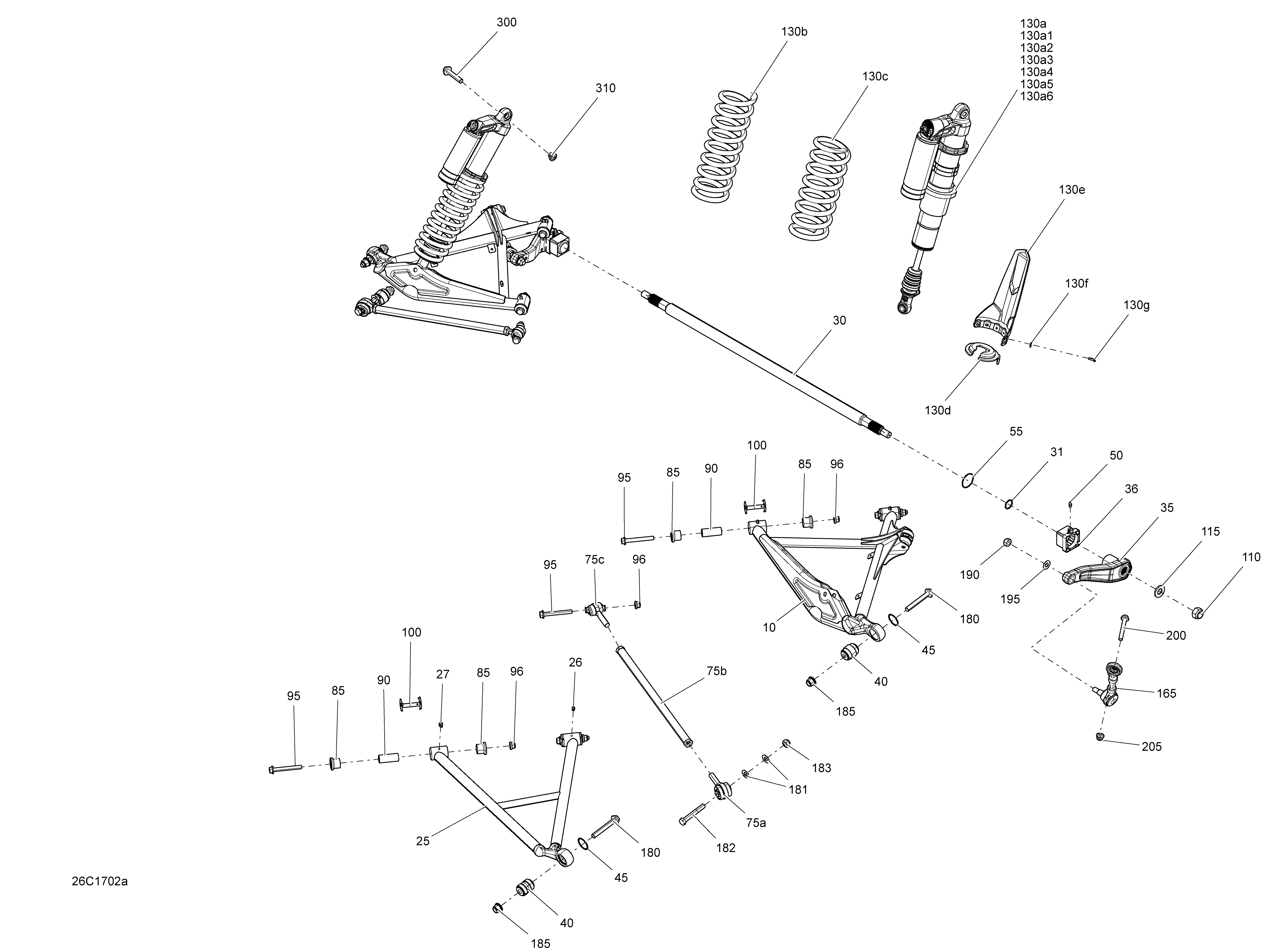

08- Rear Suspension - All Models для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
10706002223 Black LH Rear Upper Arm. Package XDS STDBlack LH Rear Upper Arm. Package XDS STD
-
10706002224 Black RH Rear Upper Arm. Package XDS STDBlack RH Rear Upper Arm. Package XDS STD
-
10706002152 Gulfstream Blue LH Rear Upper Arm. Package XMR, DPSGulfstream Blue LH Rear Upper Arm. Package XMR, DPS
-
10706002153 Gulfstream Blue RH Rear Upper Arm. Package XMR, DPSGulfstream Blue RH Rear Upper Arm. Package XMR, DPS
-
10706002341 Gulfstream Blue LH Rear Upper Arm. Package XDS DPSGulfstream Blue LH Rear Upper Arm. Package XDS DPS
-
10706002342 Gulfstream Blue RH Rear Upper Arm. Package XDS DPSGulfstream Blue RH Rear Upper Arm. Package XDS DPS
-
10706002095 Red LH Rear Upper Arm. Package DPSRed LH Rear Upper Arm. Package DPS
-
10706002096 Red RH Rear Upper Arm. Package DPSRed RH Rear Upper Arm. Package DPS
-
10706002365 Red LH Rear Upper Arm. Package XDS XRSRed LH Rear Upper Arm. Package XDS XRS
-
10706002366 Red RH Rear Upper Arm. Package XDS XRSRed RH Rear Upper Arm. Package XDS XRS
-
25706001935 Black LH Rear Lower Arm. Package XDS XRS, XDS DPS, XDS STDBlack LH Rear Lower Arm. Package XDS XRS, XDS DPS, XDS STD
-
25706001936 Black RH Rear Lower Arm. Package XDS XRS, XDS DPS, XDS STDBlack RH Rear Lower Arm. Package XDS XRS, XDS DPS, XDS STD
-
25706001354 Black LH Rear Lower Arm. Package XMR, DPSBlack LH Rear Lower Arm. Package XMR, DPS
-
25706001355 Black RH Rear Lower Arm. Package XMR, DPSBlack RH Rear Lower Arm. Package XMR, DPS
-
26408200700 Grease FittingGrease Fitting
-
27293550056 Grease Fitting 90°Grease Fitting 90°
-
30706001625 Sway BarSway Bar
-
31706000251 Retaining RingRetaining Ring
-
35706001371 Sway Bar LeverSway Bar Lever
-
36706001402 Sway Bar HousingSway Bar Housing
-
40706001373 Radial JointRadial Joint
-
45293370093 Retaining RingRetaining Ring
-
50408200700 Grease FittingGrease Fitting
-
55293300100 O-RingO-Ring
-
75a706001437 Ball JointBall Joint
-
75b706002081 Adjustment RodAdjustment Rod
-
75c706001798 Ball JointBall Joint
-
85706201659 CushionCushion
-
90706201590 SleeveSleeve
-
95207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
96233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
100706201660 Wear PlateWear Plate
-
110232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
115250200045 WasherWasher
-
130a>130a6706002558 Rear Shock. Package XMR. Includes 130a to 130a6Rear Shock. Package XMR. Includes 130a to 130a6
-
130a>130a6706001947 Shock. Package XDS XRS. Includes 130a to 130a6Shock. Package XDS XRS. Includes 130a to 130a6
-
130a>130a6706002628 Rear Shock. Package XDS STD, XDS DPS. Includes 130a to 130a6Rear Shock. Package XDS STD, XDS DPS. Includes 130a to 130a6
-
130a>130a6706002626 Rear Shock. Package DPS. Includes 130a to 130a6Rear Shock. Package DPS. Includes 130a to 130a6
-
130a1715900337 Spherical Bearing. Package XDS XRS, XDS STD, XDS DPSSpherical Bearing. Package XDS XRS, XDS STD, XDS DPS
-
130a1715900329 Spherical Bearing. Package DPS, XMRSpherical Bearing. Package DPS, XMR
-
130a2715900330 Spherical Bearing. Package DPS, XMRSpherical Bearing. Package DPS, XMR
-
130a3715900331 Protector. Package DPS, XMRProtector. Package DPS, XMR
-
130a4715900338 O-Ring Bushing. Package XDS XRS, XDS STD, XDS DPSO-Ring Bushing. Package XDS XRS, XDS STD, XDS DPS
-
130a4715900268 O-Ring Bushing. Package DPS, XMRO-Ring Bushing. Package DPS, XMR
-
130a5715900480 Circlip. Package XDS XRS, XDS STD, XDS DPSCirclip. Package XDS XRS, XDS STD, XDS DPS
-
130a5715900252 Retaining Ring. Package DPS, XMRRetaining Ring. Package DPS, XMR
-
130a6715900481 Reducer. Package XDS XRS, XDS STD, XDS DPSReducer. Package XDS XRS, XDS STD, XDS DPS
-
130a6715900267 Internal Bushing. Package DPS, XMRInternal Bushing. Package DPS, XMR
-
130b706002447 Gulfstream Blue - Rear Spring. Package XDS STD, XDS DPSGulfstream Blue - Rear Spring. Package XDS STD, XDS DPS
-
130b706002559 Gulfstream Blue - Rear Spring. Package XMRGulfstream Blue - Rear Spring. Package XMR
-
130b706002547 Red - Rear Spring. Package XDS XRSRed - Rear Spring. Package XDS XRS
-
130b706002272 Red - Rear Spring. Package DPSRed - Rear Spring. Package DPS
-
130c706002448 Gulfstream Blue - Rear Spring. Package XDS STD, XDS DPSGulfstream Blue - Rear Spring. Package XDS STD, XDS DPS
-
130c706002560 Gulfstream Blue - Rear Spring. Package XMRGulfstream Blue - Rear Spring. Package XMR
-
130c706002548 Red - Rear Spring. Package XDS XRSRed - Rear Spring. Package XDS XRS
-
130c706002273 Red - Rear Spring. Package DPSRed - Rear Spring. Package DPS
-
130d706202216 Spring Retainer. Package XDS STD, XDS DPS, XDS XRSSpring Retainer. Package XDS STD, XDS DPS, XDS XRS
-
130e706202215 Protector. Package XDS STD, XDS DPS, XDS XRSProtector. Package XDS STD, XDS DPS, XDS XRS
-
130f250200025 Washer M5. Package XDS STD, XDS DPS, XDS XRSWasher M5. Package XDS STD, XDS DPS, XDS XRS
-
130g210251650 Hex. Forming Screw M5 X 16. Package XDS STD, XDS DPS, XDS XRSHex. Forming Screw M5 X 16. Package XDS STD, XDS DPS, XDS XRS
-
130h706001710 Spring Spacer. Package XMRSpring Spacer. Package XMR
-
130h706001711 Spring Spacer. Package DPSSpring Spacer. Package DPS
-
165706001741 LH Double Ball Joint. Package DPS, XMRLH Double Ball Joint. Package DPS, XMR
-
165706001742 RH Double Ball Joint. Package DPS, XMRRH Double Ball Joint. Package DPS, XMR
-
165706002089 LH Double Ball Joint. Package XDS STD, XDS DPS, XDS XRSLH Double Ball Joint. Package XDS STD, XDS DPS, XDS XRS
-
165706002090 RH Double Ball Joint. Package XDS STD, XDS DPS, XDS XRSRH Double Ball Joint. Package XDS STD, XDS DPS, XDS XRS
-
180207628546 Hex. Flanged Screw M12 X 85Hex. Flanged Screw M12 X 85
-
181250200086 Flat WasherFlat Washer
-
182207028046 Hex. Screw M12 X 80Hex. Screw M12 X 80
-
183232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
185233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
190250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
195250200086 Flat WasherFlat Washer
-
200207607046 Hex. Flanged Screw M10 X 70. Package DPS, XMRHex. Flanged Screw M10 X 70. Package DPS, XMR
-
205233201416 Hex. Flanged Elastic Nut M10. Package DPS, XMRHex. Flanged Elastic Nut M10. Package DPS, XMR
-
300207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
310233221416 Elastic Flange Nut M12Elastic Flange Nut M12
