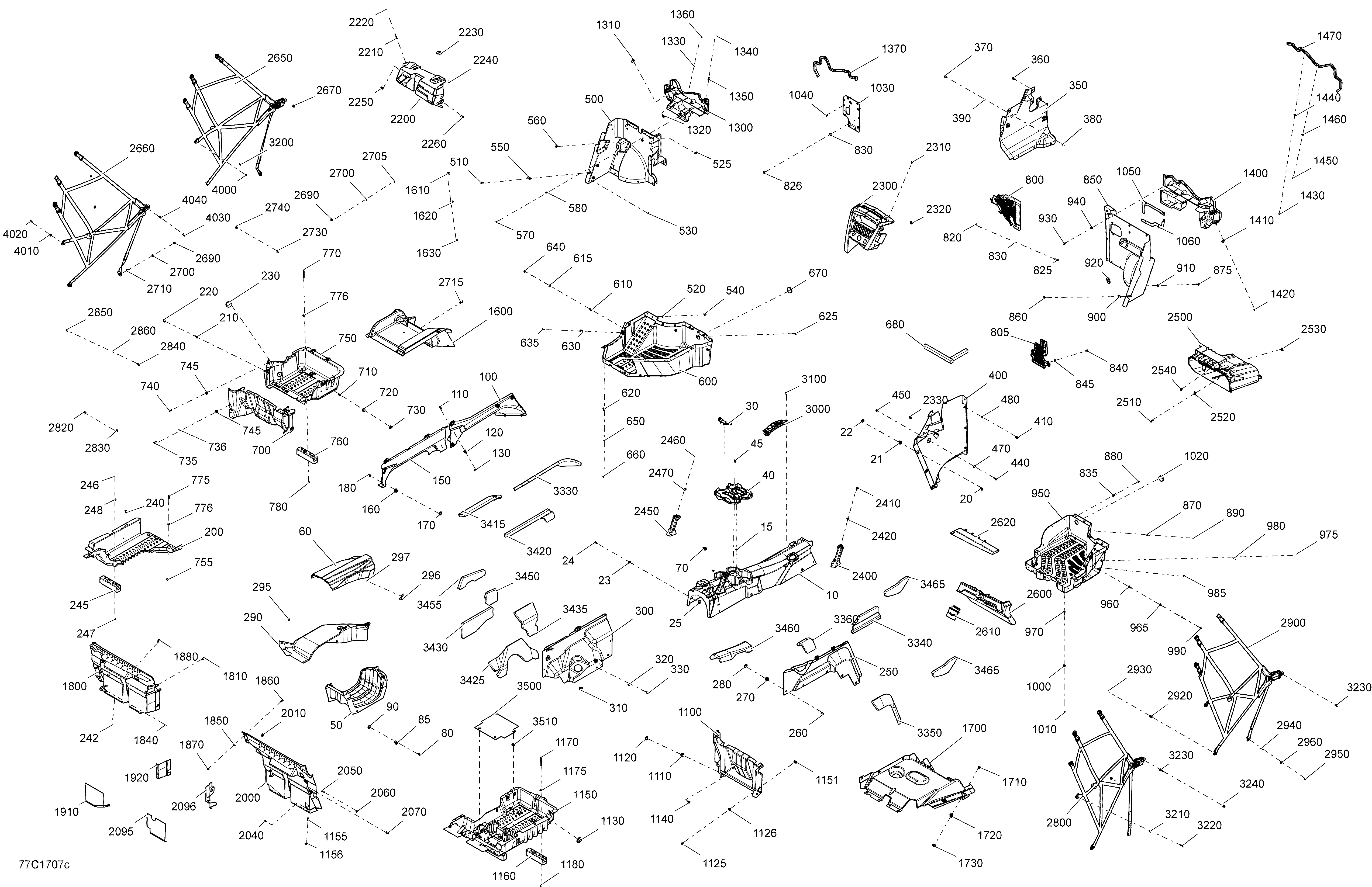

09- Cab Interior - Except Package XMR для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
10715003370 Front Console Kit. Package DPSFront Console Kit. Package DPS
-
10715004178 Front Console Kit. Package XDS DPS North AmericaFront Console Kit. Package XDS DPS North America
-
10715004178 Front Console Kit. Package XDS STD North AmericaFront Console Kit. Package XDS STD North America
-
10715004182 Front Console Kit. Package XDS XRS North AmericaFront Console Kit. Package XDS XRS North America
-
10715004336 Front Console Kit. Package XDS DPS InternationalFront Console Kit. Package XDS DPS International
-
10715004336 Front Console Kit. Package XDS STD InternationalFront Console Kit. Package XDS STD International
-
10715004337 Front Console Kit. Package XDS XRS InternationalFront Console Kit. Package XDS XRS International
-
15732610072 Push NutPush Nut
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
21707900133 InsertInsert
-
22503189273 WasherWasher
-
23234062670 Flat Washer, StainlessFlat Washer, Stainless
-
24250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
25250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
30707900036 Cup RetainerCup Retainer
-
40707900100 Cup HolderCup Holder
-
45293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
50707900075 Rear Central Console. Package DPSRear Central Console. Package DPS
-
50707900334 Rear Console Kit. Engine 1000T EFIRear Console Kit. Engine 1000T EFI
-
60707900229 Rear Console Cover Kit. Package DPSRear Console Cover Kit. Package DPS
-
70517303756 Grommet. Package DPSGrommet. Package DPS
-
80293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
85707900133 InsertInsert
-
90503189273 WasherWasher
-
100707900001 LH Side ConsoleLH Side Console
-
110293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
120707900133 InsertInsert
-
130503189273 WasherWasher
-
150707900391 Rear LH consolRear LH consol
-
160707900133 InsertInsert
-
170503189273 WasherWasher
-
180293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
200707900387 Under coverUnder cover
-
210207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
220250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
230293250242 Rubber CoverRubber Cover
-
240293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
242506151252 WasherWasher
-
245707900099 Support PlateSupport Plate
-
246207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
247293450274 InsertInsert
-
248234062670 Flat Washer, StainlessFlat Washer, Stainless
-
250707900002 RH Side ConsoleRH Side Console
-
260293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
270707900133 InsertInsert
-
280503189273 WasherWasher
-
290707900388 Rear Floor capRear Floor cap
-
295293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
296705205445 Insert SupportInsert Support
-
297293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
300707900080 RH Rear Console PanelRH Rear Console Panel
-
310707900133 InsertInsert
-
320503189273 WasherWasher
-
330293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
350707900193 Front Side Dash PanelFront Side Dash Panel
-
360293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
370250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
380293450274 InsertInsert
-
390234062670 Flat Washer, StainlessFlat Washer, Stainless
-
400707900021 RH Fixe Side ConsoleRH Fixe Side Console
-
410293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
440250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
450293450274 InsertInsert
-
470234062670 Flat Washer, StainlessFlat Washer, Stainless
-
480506151252 WasherWasher
-
500707900175 LH Front Upper FloorLH Front Upper Floor
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
520250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
525250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
530233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
540234062670 Flat Washer, StainlessFlat Washer, Stainless
-
550250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
570250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
580234062410 Flat Washer 6 mmFlat Washer 6 mm
-
600707900022 LH Lower FloorLH Lower Floor
-
610250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
615234062670 Flat Washer, StainlessFlat Washer, Stainless
-
620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
625250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
630250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
635250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
640233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
650234062670 Flat Washer, StainlessFlat Washer, Stainless
-
660293450274 InsertInsert
-
670293250242 Rubber CoverRubber Cover
-
680293250381 Seal TraySeal Tray
-
700707900082 LH Rear Upper Floor CoverLH Rear Upper Floor Cover
-
710293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
720707900133 InsertInsert
-
730503189273 WasherWasher
-
735250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
736234062670 Flat Washer, StainlessFlat Washer, Stainless
-
740250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
745250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
750707900331 Rear FloorRear Floor
-
755250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
760707900099 Support PlateSupport Plate
-
770207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
775207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
776234062670 Flat Washer, StainlessFlat Washer, Stainless
-
780293450274 InsertInsert
-
800707900178 GrillGrill
-
805707900180 GrillGrill
-
820250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
825250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
826250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
830234062670 Flat Washer, StainlessFlat Washer, Stainless
-
835250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
840250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
845250200025 Washer M5Washer M5
-
850707900004 RH Front FloorRH Front Floor
-
860250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
870250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
875250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
880233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
890234062670 Flat Washer, StainlessFlat Washer, Stainless
-
900250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
910234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920705003668 Oblong GrommetOblong Grommet
-
930250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
940234062410 Flat Washer 6 mmFlat Washer 6 mm
-
950707900023 RH Lower FloorRH Lower Floor
-
960250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
965234062670 Flat Washer, StainlessFlat Washer, Stainless
-
970250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
975250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
980250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
985250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
990233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1000234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1010293450274 InsertInsert
-
1020293250242 Rubber CoverRubber Cover
-
1030707900204 DeflectorDeflector
-
1040293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1050293250252 Upper SealUpper Seal
-
1060293250253 Bottom SealBottom Seal
-
1100707900083 Seat CoverSeat Cover
-
1110707900133 InsertInsert
-
1120503189273 WasherWasher
-
1125250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1126234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1130293250242 Rubber CoverRubber Cover
-
1140293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1150707900231 RH Lower Rear FloorRH Lower Rear Floor
-
1151250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1155293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1156506151252 WasherWasher
-
1160707900099 Support PlateSupport Plate
-
1170207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
1175234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1180293450274 InsertInsert
-
1300707900561 Floor Support LHFloor Support LH
-
1310250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1320250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1330250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1340224060201 Flat WasherFlat Washer
-
1350250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1360224060201 Flat WasherFlat Washer
-
1370293200093 Neoprene SealNeoprene Seal
-
1400707900562 Floor Support RHFloor Support RH
-
1410250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1420250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1430250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1440224060201 Flat WasherFlat Washer
-
1450250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1460224060201 Flat WasherFlat Washer
-
1470293200093 Neoprene SealNeoprene Seal
-
1600707900130 Under Seat CoverUnder Seat Cover
-
1610293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1620707900133 InsertInsert
-
1630503189273 WasherWasher
-
1700707900006 RH Under Seat PlateRH Under Seat Plate
-
1710293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1720707900133 InsertInsert
-
1730503189273 WasherWasher
-
1800707900220 LH Rear DeflectorLH Rear Deflector
-
1810293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1840250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1850250200040 Flat WasherFlat Washer
-
1860250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1870233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1880293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1910707900182 Heat ShieldHeat Shield
-
1920707900183 Heat ShieldHeat Shield
-
2000707900219 RH Rear DeflectorRH Rear Deflector
-
2010293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2040250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2050250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
2060234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2070293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2095707900167 Heat ShieldHeat Shield
-
2096707900184 Heat ShieldHeat Shield
-
2200715001250 Dashboard Ass'yDashboard Ass'y
-
2210250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
2220234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2230705003841 Support PlateSupport Plate
-
2240517302785 ClipClip
-
2250250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2260250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2300715002178 Central Dashboard Ass'yCentral Dashboard Ass'y
-
2310250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2320250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
2330293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2400707900011 Passenger HandlePassenger Handle
-
2410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2420707900048 Connector TubeConnector Tube
-
2450707900103 HandleHandle
-
2460250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2470707900048 Connector TubeConnector Tube
-
2500707900009 Storage BinStorage Bin
-
2510207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2520250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2530414859400 CapCap
-
2540293830005 Rubber BumperRubber Bumper
-
2600707900221 Luggage Cover KitLuggage Cover Kit
-
2610707900031 LatchLatch
-
2620707900062 Trim Glove BoxTrim Glove Box
-
2650707900237 Front LH Safety Net. Include Buckle 715900398Front LH Safety Net. Include Buckle 715900398
-
2660707900238 Front RH Safety Net. Include Buckle 715900398Front RH Safety Net. Include Buckle 715900398
-
2670233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2690233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2700234062410 Flat Washer 6 mmFlat Washer 6 mm
-
2705234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2710207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2715250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
2730234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2740233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2800707900239 Rear LH Safety NetRear LH Safety Net
-
2820233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2830234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2840207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2850233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2860234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2900707900240 Rear RH Safety NetRear RH Safety Net
-
2920233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2930234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2940207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2950233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2960234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3000707900088 Shift Lever IndicatorShift Lever Indicator
-
3100250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3200250000742 Torx Screw M5 X 14. Engine 1000T EFI Model North AmericaTorx Screw M5 X 14. Engine 1000T EFI Model North America
-
3210250200040 Flat Washer. Engine 1000T EFI Model North AmericaFlat Washer. Engine 1000T EFI Model North America
-
3220207562054 Flanged Hex. Screw S.GRIP M6 X 20. Engine 1000T EFI Model North AmericaFlanged Hex. Screw S.GRIP M6 X 20. Engine 1000T EFI Model North America
-
3230207682044 Hex. Flanged Screw M8 X 20. Engine 1000T EFI Model North AmericaHex. Flanged Screw M8 X 20. Engine 1000T EFI Model North America
-
3240233281414 Hex. Flanged Elastic Nut M8. Engine 1000T EFI Model North AmericaHex. Flanged Elastic Nut M8. Engine 1000T EFI Model North America
-
3330707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
3340707900045 RH Lateral Console FoamRH Lateral Console Foam
-
3350707900055 RH Lateral Console FoamRH Lateral Console Foam
-
3360707900056 RH Lateral Console FoamRH Lateral Console Foam
-
3415707900333 Acoustic FoamAcoustic Foam
-
3420707900120 Acoustic FoamAcoustic Foam
-
3425707900121 Acoustic FoamAcoustic Foam
-
3430707900205 Acoustic FoamAcoustic Foam
-
3435707900206 Acoustic FoamAcoustic Foam
-
3450707900209 Acoustic FoamAcoustic Foam
-
3455707900210 Acoustic FoamAcoustic Foam
-
3460707900211 Acoustic Foam. Package DPSAcoustic Foam. Package DPS
-
3465707900212 Acoustic Foam. Package DPSAcoustic Foam. Package DPS
-
3500707900163 Battery CoverBattery Cover
-
3510705003264 GrommetGrommet
-
4000250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
4010250200040 Flat WasherFlat Washer
-
4020207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
4030207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
4040233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System - All Models
- 01- Crankcase - 1000R
- 01- Crankcase - Turbo
- 01- Crankshaft, Piston and Cylinder - 1000R
- 01- Crankshaft, Piston and Cylinder - Turbo
- 01- Cylinder Head, Front - 1000R
- 01- Cylinder Head, Front - Turbo
- 01- Cylinder Head, Rear - 1000R
- 01- Cylinder Head, Rear - Turbo
- 01- Engine - 1000R EFI Except Package XMR
- 01- Engine - Package XMR
- 01- Engine - Turbo
- 01- Engine Cooling - 1000R
- 01- Engine Cooling - Turbo
- 01- Engine Lubrication - 1000R
- 01- Engine Lubrication - Turbo
- 01- Exhaust System - 1000R EFI
- 01- Exhaust System - Turbo
- 01- Gear Box and Components - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box and Components - GBPS - Maverick-Maverick MAX, XMR
- 01- Gear Box Assy - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box Assy - GBPS - Maverick-Maverick MAX, XMR
- 01- Gear Box Output Shaft - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box Output Shaft - GBPS - Maverick-Maverick MAX, XMR
- 01- Turbocharger
- 02- Air Intake - 1000R EFI
- 02- Air Intake - Turbo
- 02- Air Intake Manifold and Throttle Body - 1000R
- 02- Air Intake Manifold and Throttle Body - Turbo
- 02- Fuel System - All Models
- 03- Magneto and Electric Starter - 1000R
- 03- Magneto and Electric Starter - Turbo
- 05- Transmission - 1000R
- 05- Transmission - Turbo
- 05- Transmission - XMR
- 05- Transmission, Driven Pulley - Turbo
- 05- Transmission, Driven Pulley - XMR
- 06- Brakes - All Models
- 07- Drive System, Front - All Models
- 07- Front Suspension - All Models
- 07- Steering - All Models
- 08- Drive Shaft - 1000R
- 08- Drive Shaft - Turbo
- 08- Drive System, Rear - All Models
- 08- Rear Suspension - All Models
- 09- Body And Accessories - Front Section All Models
- 09- Body And Accessories - Middle Section All Models
- 09- Body And Accessories - Rear Section All Models
- • 09- Cab Interior - Except Package XMR
- 09- Cab Interior - Package XMR
- 09- Decals - 1000R EFI
- 09- Decals - Turbo
- 09- Frame - All Models
- 09- Mirrors And Tools - All Models
- 09- Seat - 1000R EFI
- 09- Seat - Turbo
- 10- Electrical Harness - 710005229
- 10- Electrical System - 1000R EFI Package DPS
- 10- Electrical System - 1000R EFI Package XMR
- 10- Electrical System - Turbo
- 10- Engine Harness and Electronic Module - Maverick MAX 1000R
- 10- Engine Harness and Electronic Module - Turbo
