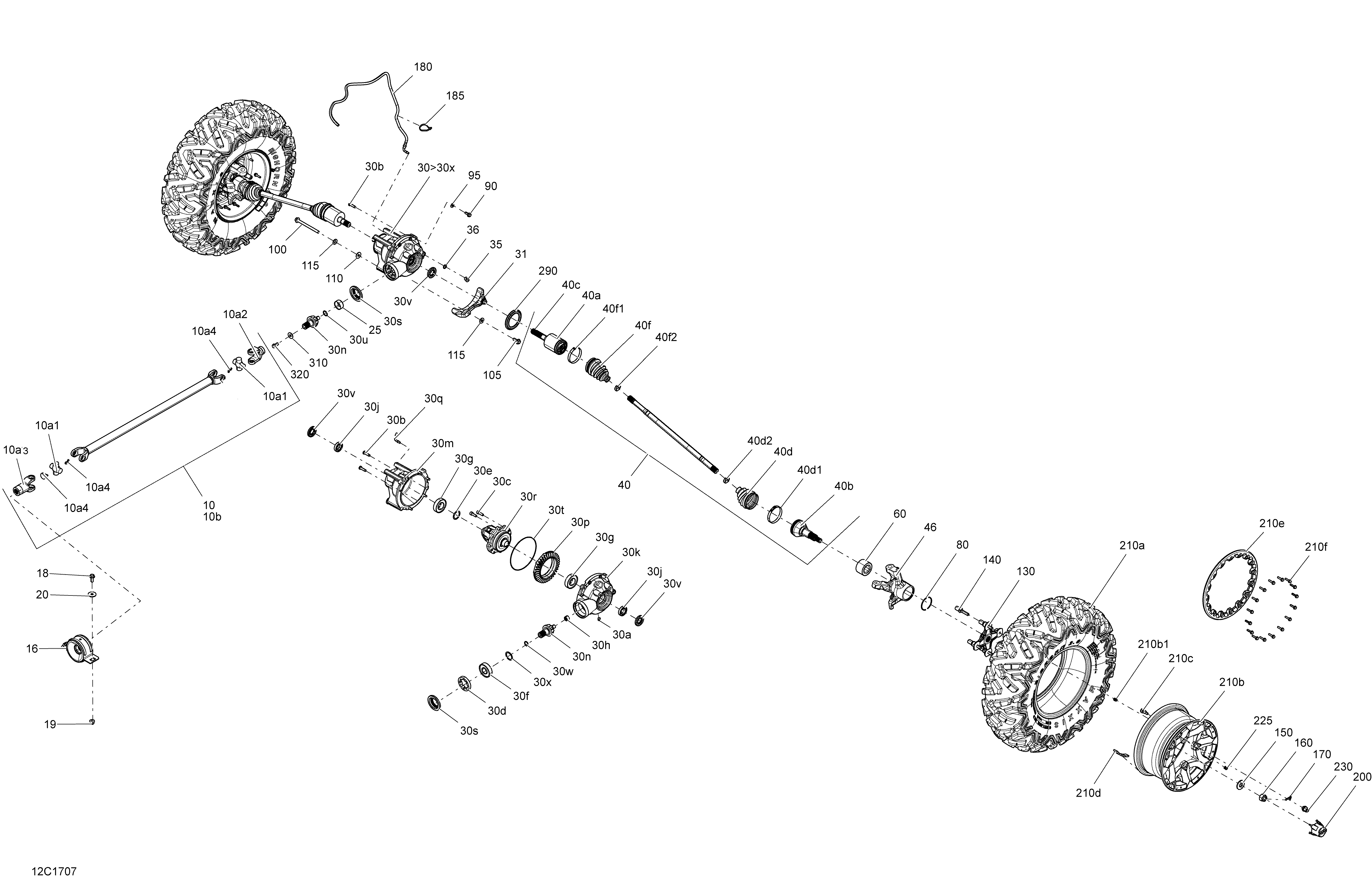

07- Drive System, Front - All Models для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
10>10b703500940 Drive Shaft Ass'y. Includes 10 to 10bDrive Shaft Ass'y. Includes 10 to 10b
-
10a1715900435 U-Joint Cross KitU-Joint Cross Kit
-
10a2715900116 Fixed Yoke JointFixed Yoke Joint
-
10a3715900231 Yoke JointYoke Joint
-
10a4715900483 CoverCover
-
10a4703500815 Grease FittingGrease Fitting
-
10b705400036 Wear RingWear Ring
-
16705401646 Ball BearingBall Bearing
-
18207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
19233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
20503032900 WasherWasher
-
25705400036 Wear RingWear Ring
-
30>30x703500908 Front DifferentialFront Differential
-
30a705501885 Drain PlugDrain Plug
-
30b705401601 ScrewScrew
-
30c705401602 ScrewScrew
-
30d705401603 NutNut
-
30e705401604 ShimShim
-
30f705401605 Ball BearingBall Bearing
-
30g705401606 Ball BearingBall Bearing
-
30h705401607 Needle BearingNeedle Bearing
-
30j705401608 Ball BearingBall Bearing
-
30k705401792 Front Cover, PinionFront Cover, Pinion
-
30m705401610 Front CoverFront Cover
-
30n705401791 Pinion 10 TeethPinion 10 Teeth
-
30p705401612 Gear 36 TeethGear 36 Teeth
-
30q705401613 Vent ValveVent Valve
-
30r705401506 DifferentialDifferential
-
30s705401615 Oil SealOil Seal
-
30t705401616 SealSeal
-
30u705401617 O'RingO'Ring
-
30v705401618 GasketGasket
-
30w705401769 ShimShim
-
30x705401770 ShimShim
-
31705401600 SupportSupport
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40>40f2705401874 CV Joint RH. Package DPS, XDS STD, XDS XRS, XDS DPS. Includes 40 to 40f2CV Joint RH. Package DPS, XDS STD, XDS XRS, XDS DPS. Includes 40 to 40f2
-
40>40f2705401878 CV Joint RH. Package XMR. Includes 40 to 40f2CV Joint RH. Package XMR. Includes 40 to 40f2
-
40>40f2705401873 CV Joint LH. Package DPS, XDS STD, XDS XRS, XDS DPS. Includes 40 to 40f2CV Joint LH. Package DPS, XDS STD, XDS XRS, XDS DPS. Includes 40 to 40f2
-
40>40f2705401877 CV Joint LH. Package XMR. Includes 40 to 40f2CV Joint LH. Package XMR. Includes 40 to 40f2
-
40a715900431 RH Plunging Joint. Package DPS, XDS STD, XDS XRS, XDS DPSRH Plunging Joint. Package DPS, XDS STD, XDS XRS, XDS DPS
-
40a715900395 RH Plunging CV Joint. Package XMRRH Plunging CV Joint. Package XMR
-
40a715900430 LH Plunging Joint. Package DPS, XDS STD, XDS XRS, XDS DPSLH Plunging Joint. Package DPS, XDS STD, XDS XRS, XDS DPS
-
40a715900396 LH Plunging CV Joint. Package XMRLH Plunging CV Joint. Package XMR
-
40b715900427 CV Joint. Package DPS, XDS STD, XDS XRS, XDS DPSCV Joint. Package DPS, XDS STD, XDS XRS, XDS DPS
-
40b715900428 CV Joint. Package XMRCV Joint. Package XMR
-
40c705401349 Circlip JointCirclip Joint
-
40d>40d2705401345 Boot Kit, Wheel Side. Package DPS, XDS STD, XDS XRS, XDS DPS. Includes 40d to 40d2Boot Kit, Wheel Side. Package DPS, XDS STD, XDS XRS, XDS DPS. Includes 40d to 40d2
-
40d>40d2705401354 Boot Kit, Wheel Side. Package XMR. Includes 40d to 40d2Boot Kit, Wheel Side. Package XMR. Includes 40d to 40d2
-
40d1715900282 Oetiker Clamp, Large. Package DPS, XDS STD, XDS XRS, XDS DPSOetiker Clamp, Large. Package DPS, XDS STD, XDS XRS, XDS DPS
-
40d1715900260 Oetiker Clamp, Large. Package XMROetiker Clamp, Large. Package XMR
-
40d2715900283 Oetiker Clamp, Small. Package DPS, XDS STD, XDS XRS, XDS DPSOetiker Clamp, Small. Package DPS, XDS STD, XDS XRS, XDS DPS
-
40d2715900261 Oetiker Clamp, Small. Package XMROetiker Clamp, Small. Package XMR
-
40f>f2705401346 Boot Kit, Differential Side. Package DPS, XDS STD, XDS XRS, XDS DPS. Includes 40f to 40f2Boot Kit, Differential Side. Package DPS, XDS STD, XDS XRS, XDS DPS. Includes 40f to 40f2
-
40f>f2705401355 Boot Kit, Differential Side. Package XMR. Includes 40f to 40f2Boot Kit, Differential Side. Package XMR. Includes 40f to 40f2
-
40f1715900284 Oetiker Clamp, Large. Package DPS, XDS STD, XDS XRS, XDS DPSOetiker Clamp, Large. Package DPS, XDS STD, XDS XRS, XDS DPS
-
40f1715900261 Oetiker Clamp, Small. Package XMROetiker Clamp, Small. Package XMR
-
40f2715900261 Oetiker Clamp, Small. Package DPS, XDS STD, XDS XRS, XDS DPSOetiker Clamp, Small. Package DPS, XDS STD, XDS XRS, XDS DPS
-
40f2715900262 Oetiker Clamp, Large. Package XMROetiker Clamp, Large. Package XMR
-
45705401548 LH Front KnuckleLH Front Knuckle
-
46705401549 RH Front KnuckleRH Front Knuckle
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
90207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
95234281474 Conical Spring Washer M8Conical Spring Washer M8
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
105207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
110250200014 Flat Washer M10Flat Washer M10
-
115234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
130705501900 Wheel HubWheel Hub
-
140250300060 Wheel StudWheel Stud
-
150250200049 Spring WasherSpring Washer
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
170250400071 Cotter PinCotter Pin
-
180414834000 Formed HoseFormed Hose
-
180414834000 Formed HoseFormed Hose
-
185414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
200705400928 Wheel Cap. Except Package XMR, XDS STDWheel Cap. Except Package XMR, XDS STD
-
200705401541 Wheel Cap. Package XMR, XDS STDWheel Cap. Package XMR, XDS STD
-
210a705401385 Front Tire Maxxis 27X9X12. Package DPSFront Tire Maxxis 27X9X12. Package DPS
-
210a705401592 Front Tire. Package XDS XRS, XDS DPS, XDS STDFront Tire. Package XDS XRS, XDS DPS, XDS STD
-
210a705401501 Tire. Package XMRTire. Package XMR
-
210b705401417 Black Front Rim. Package DPSBlack Front Rim. Package DPS
-
210b705401564 Black Front Rim. Package XDS STDBlack Front Rim. Package XDS STD
-
210b705401848 Rim. Package XMRRim. Package XMR
-
210b>210b1705401594 Black Front Rim. Package XDS XRS, XDS DPS. Includes 210b to 210b1Black Front Rim. Package XDS XRS, XDS DPS. Includes 210b to 210b1
-
210b1293450317 InsertInsert
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d705501385 1/2 OZ Weight1/2 OZ Weight
-
210e705401837 Bead Lock Cam-Am Red. Package XDS XRSBead Lock Cam-Am Red. Package XDS XRS
-
210e705401702 Blue Painted Reinforcement Disk. Package XDS DPSBlue Painted Reinforcement Disk. Package XDS DPS
-
210f250000787 Hex. Flanged Screw M6 X 25. Package XDS XRS, XDS DPSHex. Flanged Screw M6 X 25. Package XDS XRS, XDS DPS
-
225293000110 Valve CapValve Cap
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
290705400780 Wear Sleeve. Except Package XMRWear Sleeve. Except Package XMR
-
310250200014 Flat Washer M10Flat Washer M10
-
320250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
