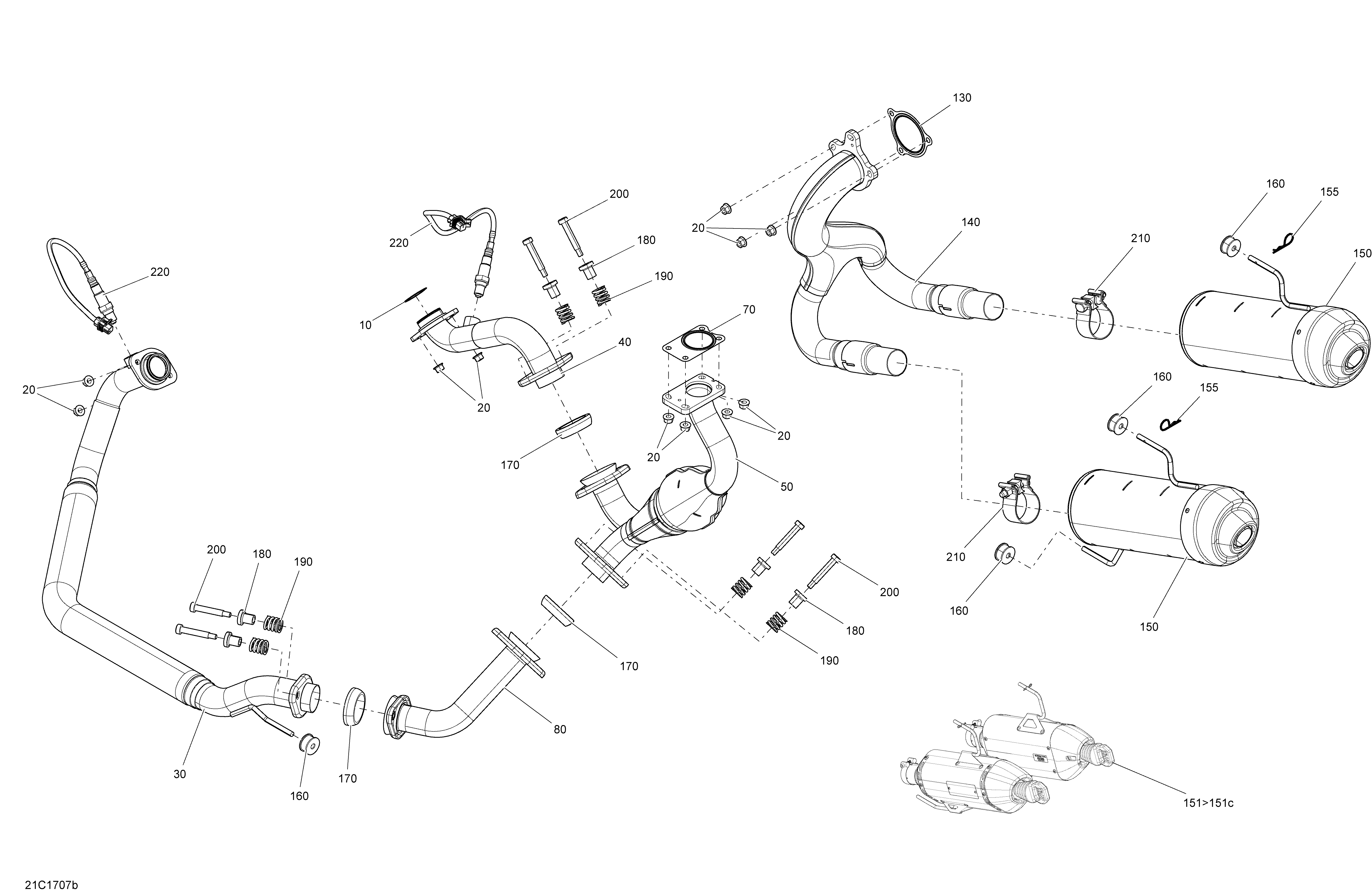

01- Exhaust System - Turbo для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
10707600317 GasketGasket
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30707601616 Front Head PipeFront Head Pipe
-
40707602036 Rear Head PipeRear Head Pipe
-
50707601464 Head PipeHead Pipe
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
70707601565 SealSeal
-
80707601546 Head PipeHead Pipe
-
130707601566 SealSeal
-
140707601465 Head PipeHead Pipe
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
150707601636 Muffler. Package XDS STD, XDS DPSMuffler. Package XDS STD, XDS DPS
-
151>151c707601800 Muffler Ass'y LH. Package XDS XRS. Includes 151 to 151cMuffler Ass'y LH. Package XDS XRS. Includes 151 to 151c
-
151>151c707601801 Muffler Ass'y RH. Package XDS XRS. Includes 151 to 151cMuffler Ass'y RH. Package XDS XRS. Includes 151 to 151c
-
151a715002826 Packing Spare Kit. Package XDS XRSPacking Spare Kit. Package XDS XRS
-
151b715002827 Spark Arrest Kit. Package XDS XRSSpark Arrest Kit. Package XDS XRS
-
151c707601622 Clamp. Package XDS XRSClamp. Package XDS XRS
-
155414575600 Hair Pin. Package XDS STD, XDS DPSHair Pin. Package XDS STD, XDS DPS
-
160707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
170707601128 SealSeal
-
180707601254 BushingBushing
-
190707600682 SpringSpring
-
200250000658 Socket Head Screw M10 X 50Socket Head Screw M10 X 50
-
210293650231 Gear Clamp. Package XDS STD, XDS DPSGear Clamp. Package XDS STD, XDS DPS
-
220707600872 Oxygen SensorOxygen Sensor
