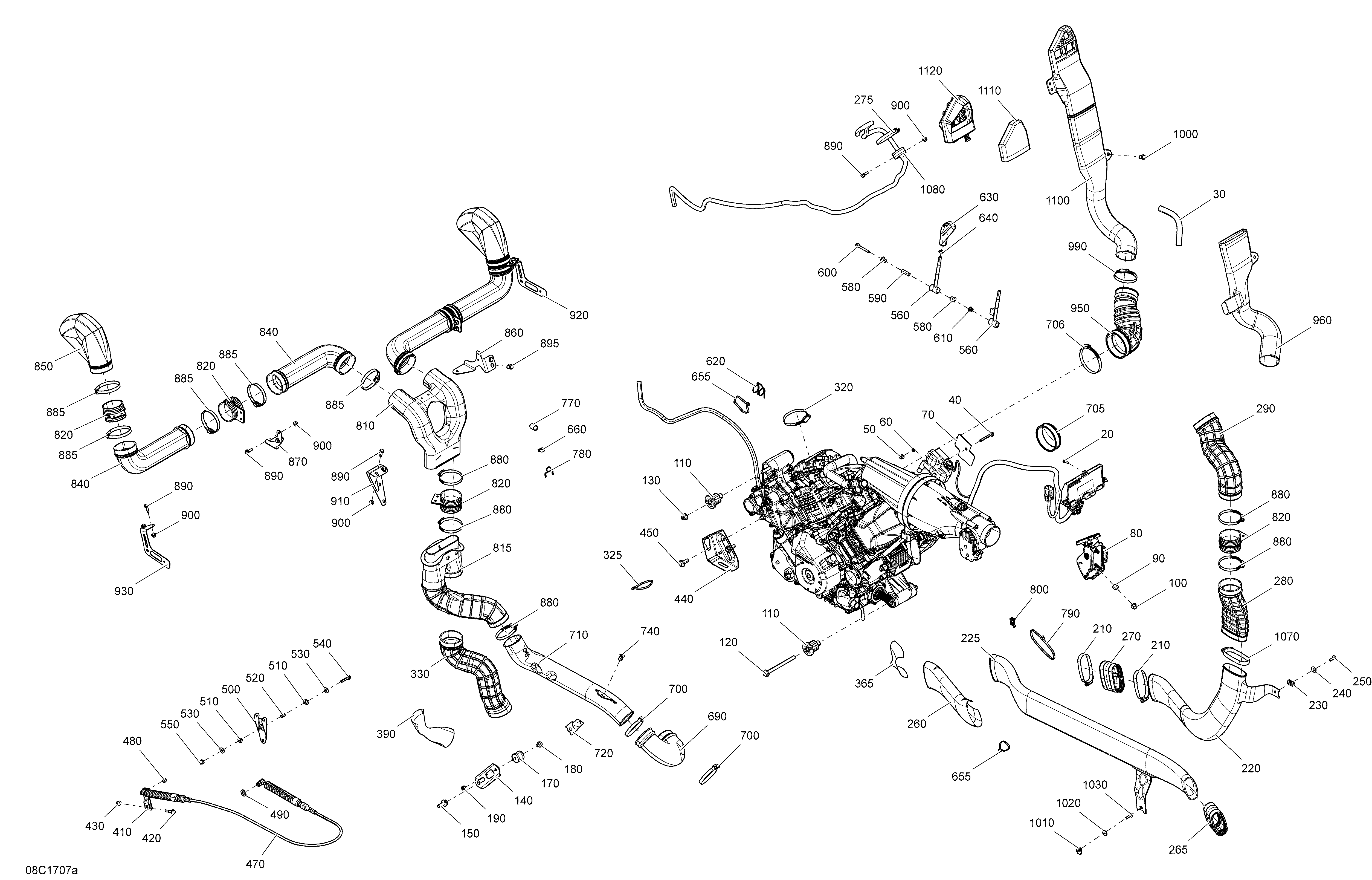

01- Engine - Package XMR для BRP 2-Maverick MAX - 2017
-
№АртикулНазвание
-
20250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
30415080000 Tubing 16 mmTubing 16 mm
-
40207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
50233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
60234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
70710000073 Insulator PadInsulator Pad
-
80707001166 Accelerator PedalAccelerator Pedal
-
90707000848 BushingBushing
-
100233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
110707001170 Anti Vibration BufferAnti Vibration Buffer
-
120230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
130233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
140707000707 Upper Engine BracketUpper Engine Bracket
-
150207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
170707000949 Rubber IsolatorRubber Isolator
-
180207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
190232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
210293650091 Norma ClampNorma Clamp
-
220707001339 Air InletAir Inlet
-
220707001983 Air InletAir Inlet
-
225707001228 Air InletAir Inlet
-
230250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
240250200082 Flat WasherFlat Washer
-
250250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
260707001346 ReflectorReflector
-
265707001467 Flexible AdaptorFlexible Adaptor
-
270707001467 Flexible AdaptorFlexible Adaptor
-
275293650091 Norma ClampNorma Clamp
-
280707001377 Air InletAir Inlet
-
290707001378 Air InletAir Inlet
-
320293650118 Norma Gear ClampNorma Gear Clamp
-
325293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
330707001380 CVT OutletCVT Outlet
-
365707000991 Reflective SheetReflective Sheet
-
390707000991 Reflective SheetReflective Sheet
-
410707000911 LeverLever
-
420207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
430233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
440707000919 Cable SupportCable Support
-
450207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
470707001283 Shifting CableShifting Cable
-
480232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
490234001410 Flat Washer 10 mmFlat Washer 10 mm
-
500707000828 Lower Lever ArmLower Lever Arm
-
510707000847 Flanged BushingFlanged Bushing
-
520707000801 BushingBushing
-
530234062410 Flat Washer 6 mmFlat Washer 6 mm
-
540207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
550233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
560707000711 Upper Lever ArmUpper Lever Arm
-
580707000869 Flanged BushingFlanged Bushing
-
590707001376 BushingBushing
-
600207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
610233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
620707000750 Lever Arm SpringLever Arm Spring
-
630707000284 Lever HandleLever Handle
-
640232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
655293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
660414415200 Spring ClampSpring Clamp
-
690707001866 CVT OutletCVT Outlet
-
700293650118 Norma Gear ClampNorma Gear Clamp
-
705707001911 PlugPlug
-
706514052924 Norma ClampNorma Clamp
-
710707001381 Front CVT OutletFront CVT Outlet
-
720707001231 Front SupportFront Support
-
740293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
770707001185 PlugPlug
-
780707800506 Retainer ClipRetainer Clip
-
790293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
800710002899 Clip Tie-RapClip Tie-Rap
-
810707001532 CVT OutletCVT Outlet
-
815707001855 Front CVT OutletFront CVT Outlet
-
820707001383 AdaptorAdaptor
-
840707001385 CVT OutletCVT Outlet
-
850707001386 Rear CVT OutletRear CVT Outlet
-
860707001483 SupportSupport
-
870707001388 Right SupportRight Support
-
880293650091 Norma ClampNorma Clamp
-
885293750065 Tie Rap 367mmTie Rap 367mm
-
890207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
895293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
900233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
910707001389 Central SupportCentral Support
-
920707001390 Left SupportLeft Support
-
930707001391 Right SupportRight Support
-
950707001910 Air InletAir Inlet
-
990293650091 Norma ClampNorma Clamp
-
1000293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1010250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1020250200082 Flat WasherFlat Washer
-
1030250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1070293650091 Norma ClampNorma Clamp
-
1080293650218 Hose RetainerHose Retainer
-
1100707002145 Air InletAir Inlet
-
1110707001482 CVT FilterCVT Filter
-
1120707001481 DeflectorDeflector
